Overvoltage protector OP-230

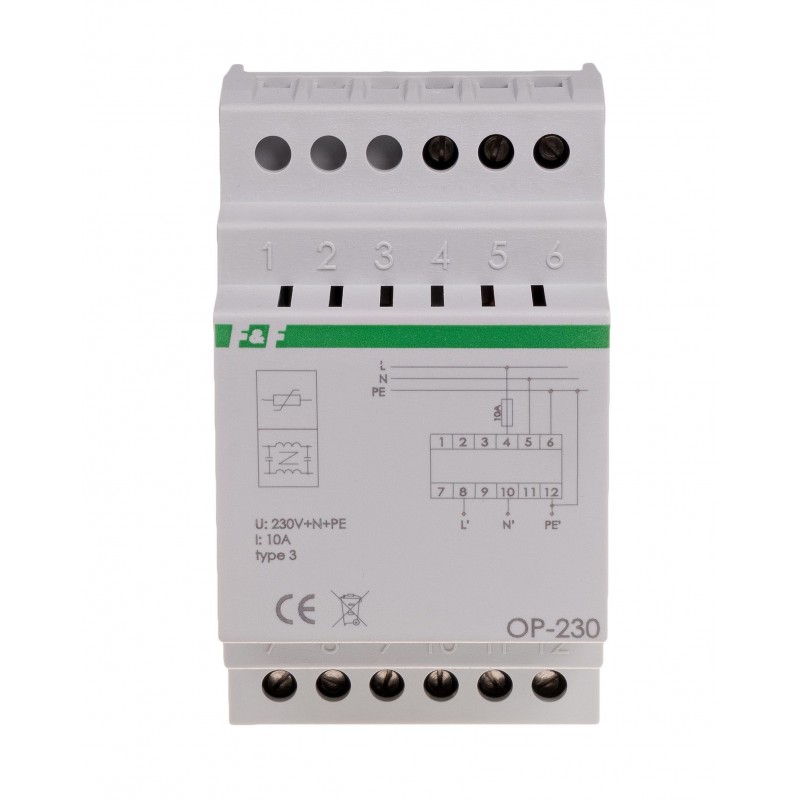

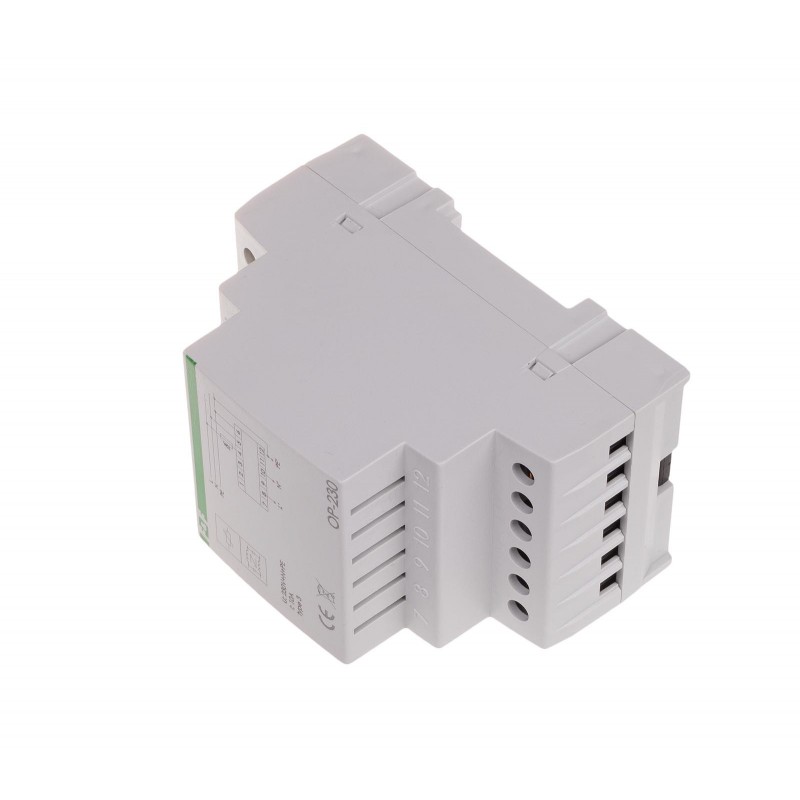

OP-230, 5908312596110
Type 3 (early D-class) with a triple interference filter.
Protection of electronic devices, i.e. computers, PLCs, microprocessor systems, etc. against electromagnetic disturbance and overvoltage in the electrical system.

Functioning
OP-230 performs two security:
The advanced system overvoltage - type 3 (formerly Class D), which protects the device in the circuit, which is included in overvoltage protector. Special varistors operate both in the typical network clasp, as well as dangerous asymmetric threats clasp, which often occur simultaneously with over symmetrical. OP-230 absorbs a very high pulse clasps with extremely short response time. Based on many years of experience in the design of electronic devices and their use has allowed to create a product with high technical parameters. The application, not as usually one or three, but six warystors creates a double degree of ultimate security.
Triple interference filter  - specially designed passive system of reactors, largely eliminates the distortion of radio and industrial products. This is a symmetric filter. At the same time blocks the interference coming from the electric power grid, and vice versa - interference from the user equipment (stove, microwave, computer, pulsed power supplies, etc.) are not allowed into the mains. The protector' filter  is a  structure of four  terminals ( the system with four terminals - a pair of terminals act as an input, the second exit), which passed without suppression or damping of the small voltage and currents of a certain frequency band, and to stifle underlying tensions and currents outside this band. Filters are used primarily in electronic devices and energy. Placed between the power source and the receiver is such that the receiver gets the signal of a desired frequency spectrum.


OP-230
Maximum working voltage
230 V AC
The biggest permanent work voltage
255 V
Voltage protection level L? N measured
1 KV
Operating time
max. 25 ns
Leakage current
0,5 mA
Rated current
10:00 AM
The class of the protector
III
Additional security
10 A gL/gG lub C10 A
Inductance of the system
1 mH na tor
The capacity of the L? N system
880 nF
The capacity of the L (N) PE system
2,2 nF
Attenuation of radio interference
85 dB
Standard number
IEC 61643-1:2001
Terminal
pluggable terminal blocks 4,0 mm²
Tightening torque
0,5 Nm
Working temperature
-25 ÷ 50 °C
Dimensions
3 modules (52,5 mm)
Assembly
on rail 35 mm
Ingress Protection Marking
IP20
