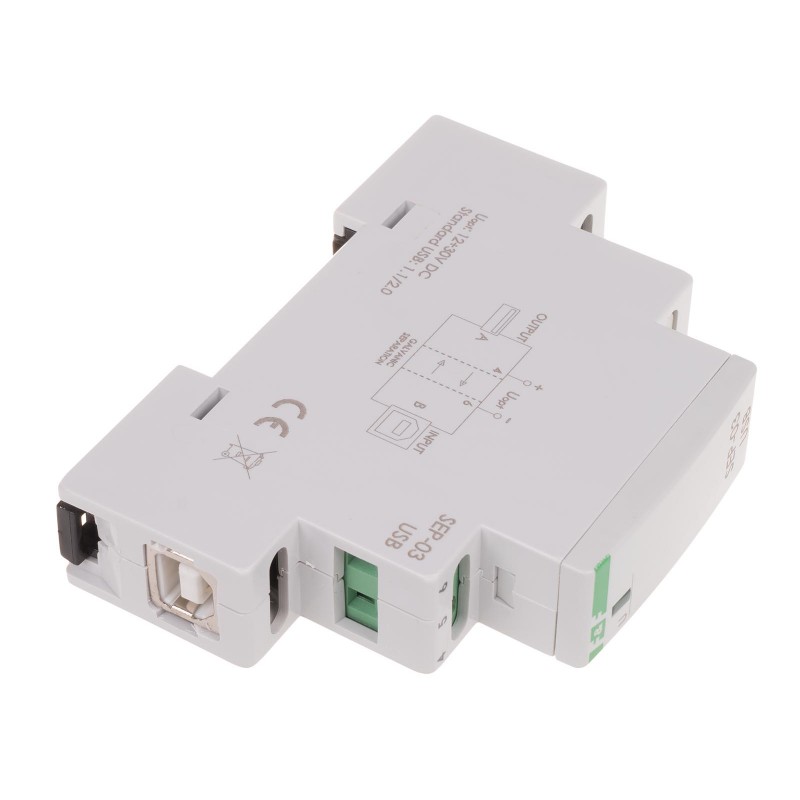

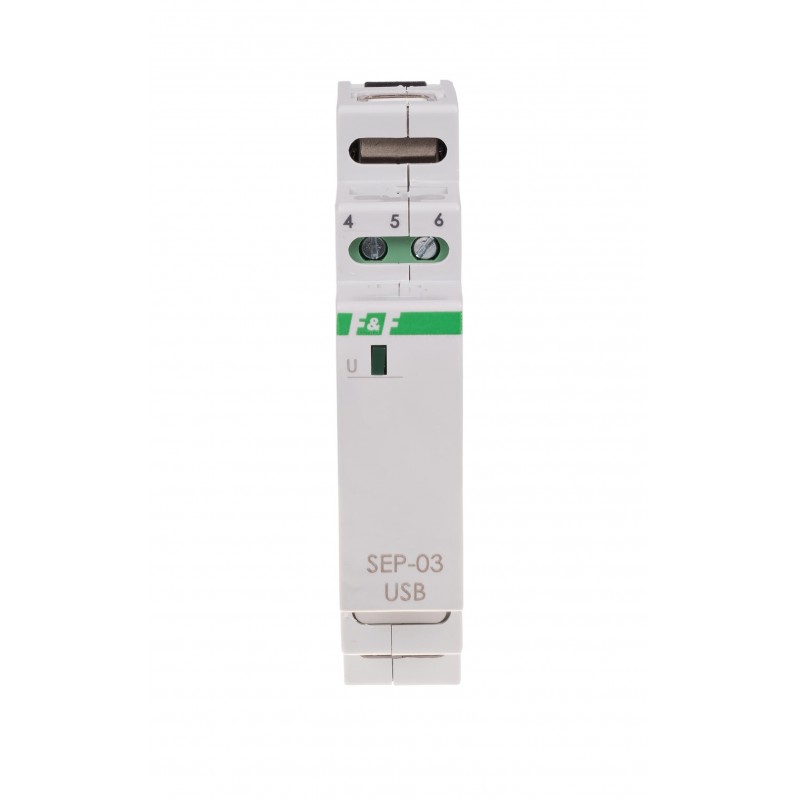

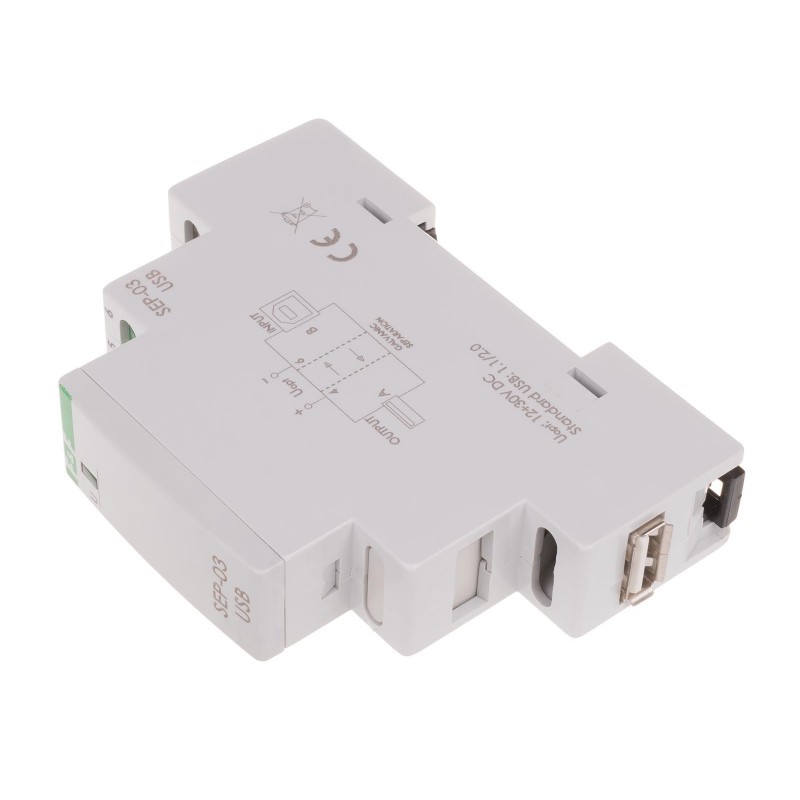

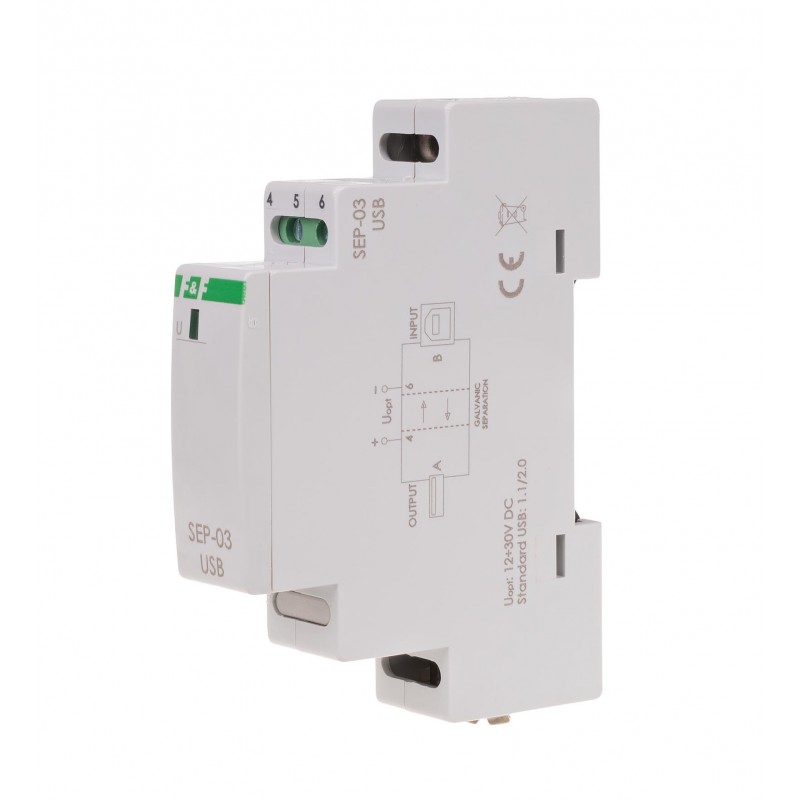

Amplifier/Separator USB line SEP-03 USB
Wzmacniacz / separator linii USB.
SEP-03 is used for galvanic isolation devices connected via a USB cable.
SEP-03 is used for galvanic isolation devices connected via a USB cable.
Provides surge protection devices HOST, eg. PC from external devices that are connected directly to the power grids, industrial power supply systems or high-voltage measurement. If you connect an external power amplifier is used as the transmitted signal and increases the efficiency of current up to 1A for the connected devices.
- Speed
- Low speed: 1,5 Mbps; Full speed: 12 Mbps
- USB power supply
- 5 V DC
- Uopt power supply
- 12÷30 V DC
- Maximum USB load current
- 400 mA
- Maximum load current Uopt
- 1:00 AM
- USB standard
- 1.1 / 2.0
- Types of connectors
- 1×A / 1×B
- Galvanic separation - A? B tracks
- 5 kV RMS
- Galvanic separation - Uusb? Tory A / B
- 1 kV DC
- Galvanic separation - Uopt? Tory A / B
- NONE
- Terminal
- pluggable terminal blocks 2,5 mm²
- Tightening torque
- 0,4 Nm
- Working temperature
- -25÷40°C
- Dimensions
- 1 module (18 mm)
- Assembly
- on rail 35 mm
- Ingress Protection Marking
- IP20
