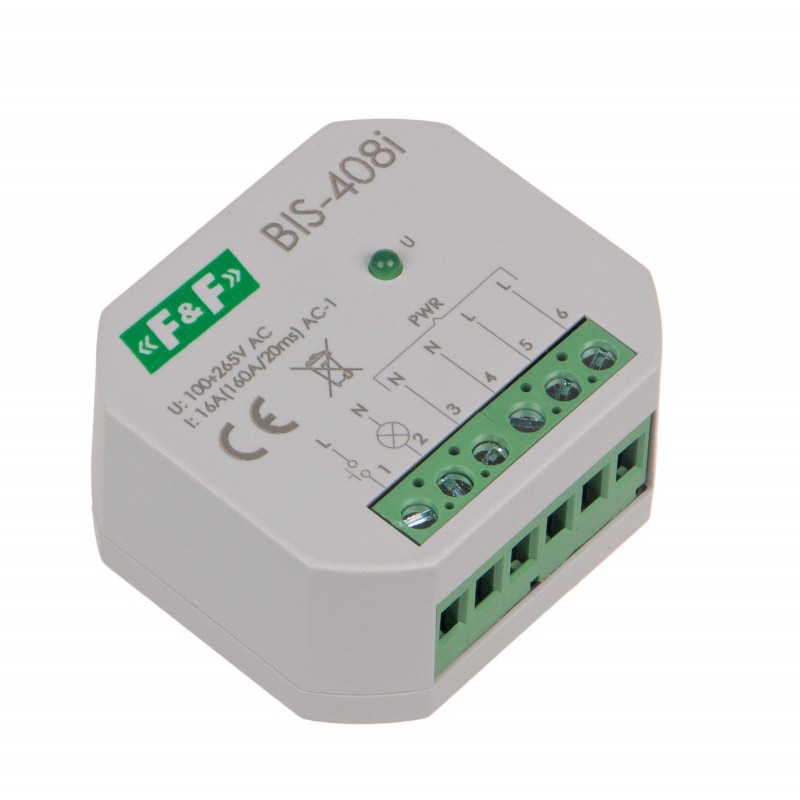

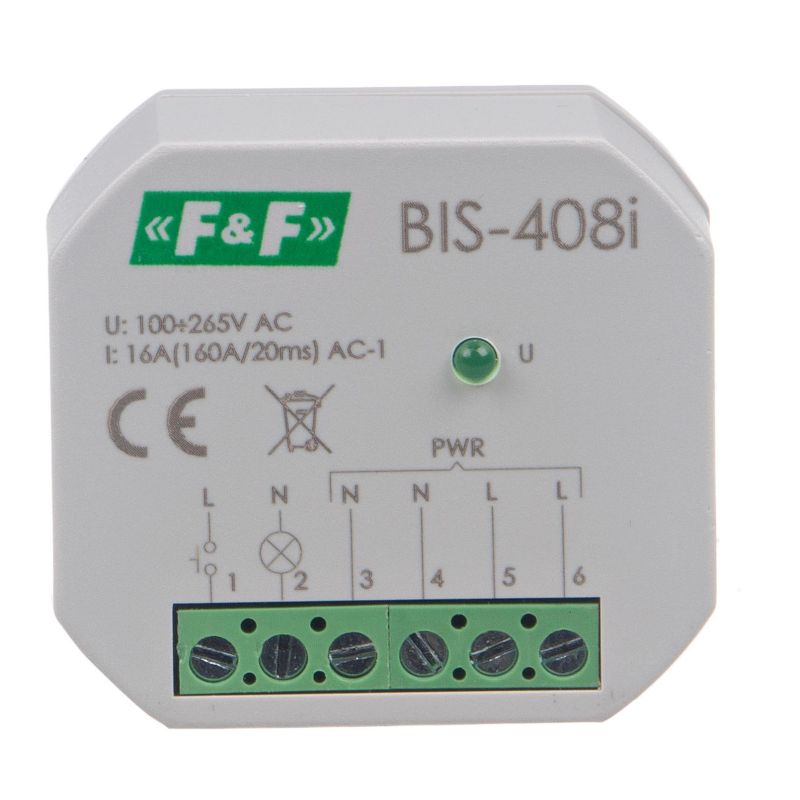

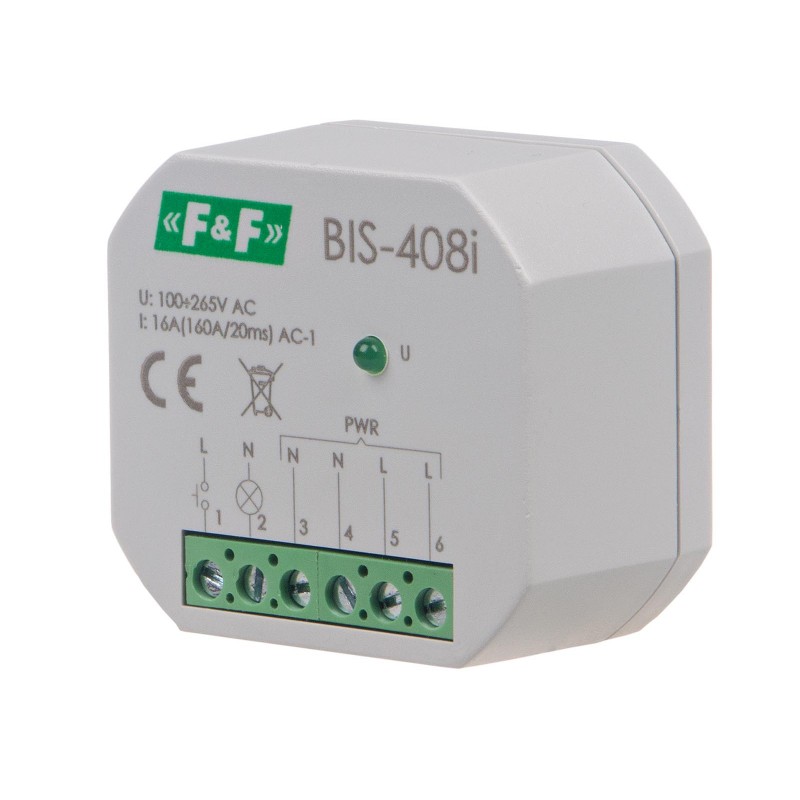

Electronic bistable impulse relay BIS-408-LED

Electronic bistable impulse relay BIS-408i

View larger

Display all pictures

Product
Data sheet
Scheme
Tips
Comparision table
Download

Electronic bistable impulse relay BIS-408-LED

Reference: BIS-408-LED, EAN13: 5908312598299

Product description

Electronic bistable impulse relay allows switching of lighting or other equipment from several different points of using the control buttons are connected in parallel.
Relay version "i" is to pin adapted to cooperate with the receivers with high starting current, such as LED fluorescent lamps, ESL fluorescent lamps, electronic transformers, discharge lamps, etc.

Power supply 230 V AC. Maximum load 16 A (160 A/20 ms). To under plaster box Ø60. Can be used with backlit buttons.

Functioning
The receiver is after the current pulse caused by pressing any (bell) connected to the relay. Exclusion the receiver will be the next pulse.
The relay does not have a "memory" of the contact position, ie. in the case of power failure and the subsequent return, contact the relay will be set in the off.
This prevents the automatic switching of loads without supervision after a prolonged power failure.

Note!
BIS-408 and BIS-408i can be used with backlit buttons.

Power table

The above data are indicative and will depend to a large extent on the design of a specific receiver (especially for LED bulbs, energy saving lamps, electronic transformers and pulse power supplies), switching frequency and working conditions.

Power supply voltage	165÷265 V AC
Local control	YES
Maximum AC-1 load current	16 A (120 A/20 ms)
The executive element	relay
Contact configuration	1 × NO
Separation of the contact	NO
Resistance to shock currents	YES
Number of channels	1
functionality	ON/OFF
Delay of operation	0,1 ÷ 0,2 s
Control pulse current	less than 5 mA
Cooperation with illuminated buttons	YES
Status memory after power failure	NO
Activate on time	NO
Dedicated central control inputs	NO
Radio control	NO
Terminal	pluggable terminal blocks 2,5 mm²
Tightening torque	0,4 Nm
Power consumption	0,7 W
Working temperature	-25 ÷ 50 °C
Dimensions	Ø54 (48×43 mm), height: 20 mm
Assembly	in a flush-mounted box Ø60
Ingress Protection Marking	IP20

BIS-408i manual (618.07k)

BIS-408i - outline CAD dxf (72k)

BIS declaration CE 2024 (180.09k)

BIS-408 LED Bedienungsanleitung (622.86k)

Przyciski podświetlane
W przypadku podłączenia zbyt dużej ilości przycisków podświetlanych może dochodzić do samoistnego załączania oświetlenia lub załączenia oświetlenia na stałe

Maksymalny prąd obciążenia
Prąd styku podany w danych technicznych jest wartością maksymalną i może podlegać ograniczeniom – więcej informacji. Jeśli z przedstawionych informacji wynika, że przekaźnik w urządzeniu jest niewystarczający zaleca się stosować zewnętrzny element przełączający (np. stycznik) przystosowany do przełączania dużych prądów udarowych.

Pamięć stanu
Przekaźnik nie posiada "pamięci" pozycji styku. Oznacza to, że po załączeniu zasilania styk przekaźnika zawsze pozostanie w stanie wyłączonym.

Odporność na prądy udarowe
W urządzeniu zastosowany został przekaźnik typu "inrush" charakteryzujący się dużą wytrzymałością na krótkotrwałe prądy udarowe powstające np. w momencie załączenia lamp LED, świetlówek ESL, tranformatorów elektronicznych, lamp wyładowczych itp.
