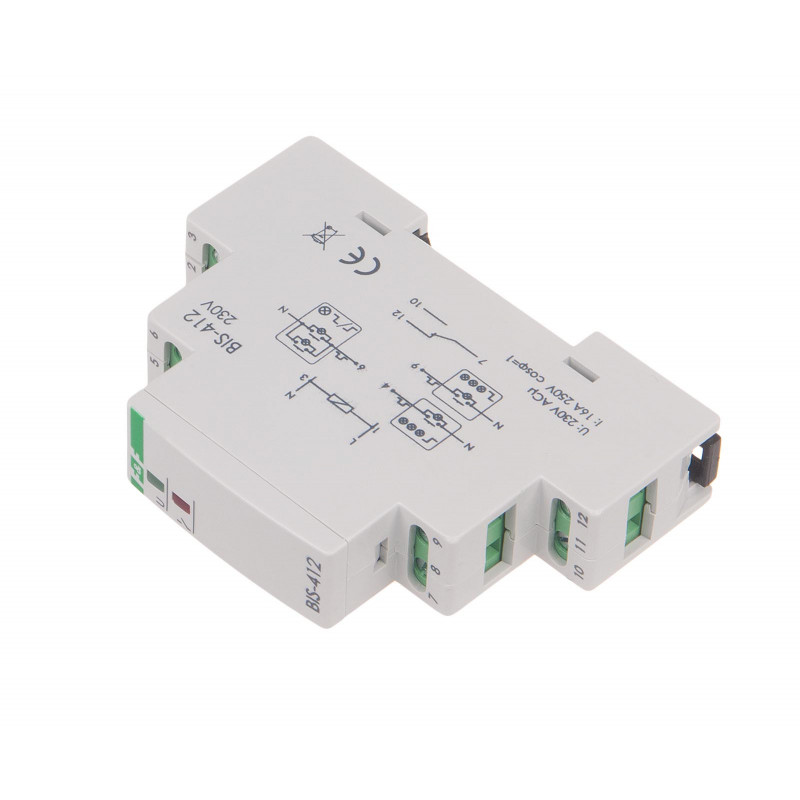

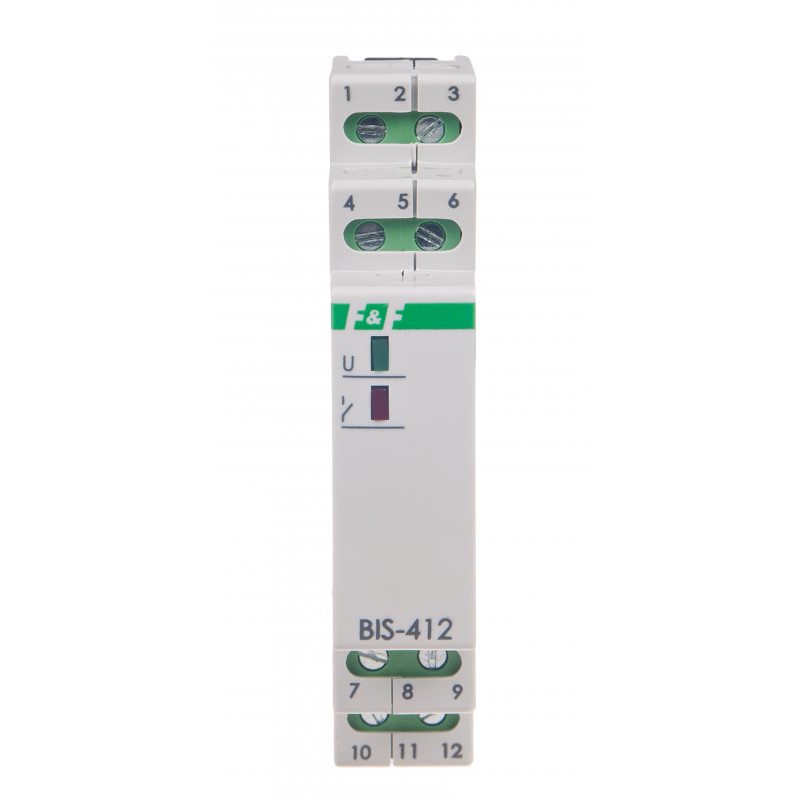

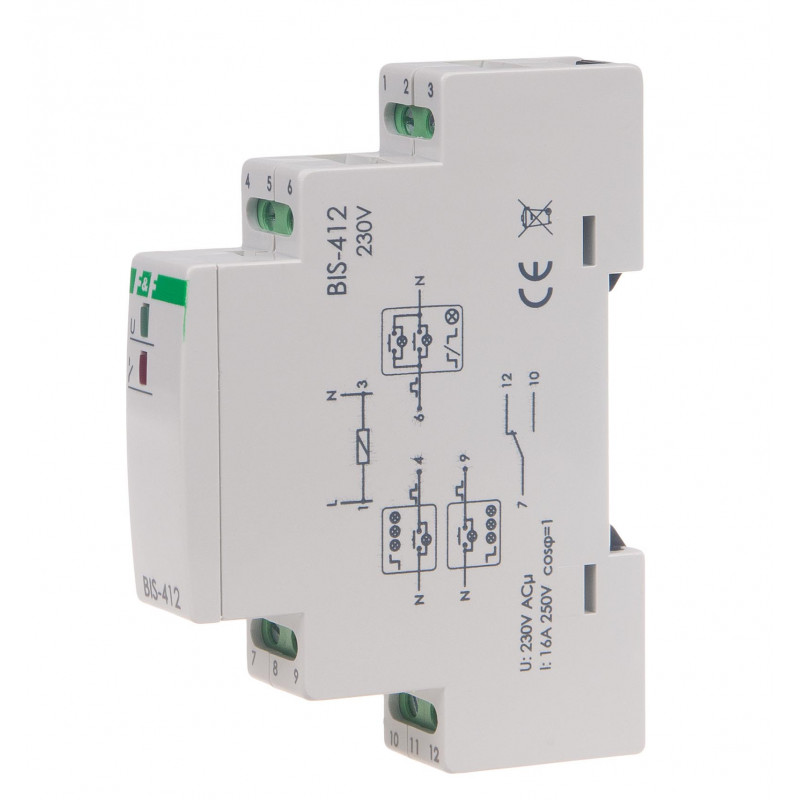

Electronic bistable impulse relay BIS-412 230 V

View larger

Display all pictures

Product
Data sheet
Scheme
Tips
Comparision table
Download

Electronic bistable impulse relay BIS-412 230 V

Reference: BIS-412, EAN13: 5908312596226

Product description

BIS-412 electronic bi-stable pulse relay is designed for operation in a group configuration.
Power supply 230 V AC. Maximum load 16 A. On rail TH-35. Can be used with backlit buttons.

A single relay enables the activation and deactivation of the receiver controlled after each current pulse triggered by pushing a local control momentary push-button (bell-push). The group configuration enables the deactivation or activation of all receivers connected to individual relays by means of the central control push-buttons.

Functioning:
Local control
The receiver is activated after a current pulse that is triggered by pushing one optional momentary push-button belonging to the local control group. The contact of the relay is switched to the 7-10 position. After a next current pulse, the receiver will be deactivated (the contact of the relay returns to the 7-12 position).
Central control
DEACTIVATE ALL - after a current pulse triggered by pushing the momentary push-button , all receivers will be deactivated (regardless of their status, i.e. deactivation or activation) that are controlled separately by individual relays. The contact in each relay will be switched to the 7-12 position.
ACTIVATE ALL - after a current pulse triggered by pushing the momentary push-button , all receivers will be activated (regardless of their status, i.e. deactivation or activation) that are controlled separately by individual relays. The contact in each relay will be switched to the 7-10 position.

Attention!
The BIS-412 230V is compatible with bell pushes equipped with fluorescent lamps.

Power supply voltage	165÷265 V AC
Local control	YES
Maximum AC-1 load current	16 A
The executive element	relay
Contact configuration	1 × NO/NC
Separation of the contact	YES
Resistance to shock currents	NO
Number of channels	1
functionality	group (hotel)
Delay of operation	0,1 ÷ 0,2 s
Control pulse current	less than 5 mA
Cooperation with illuminated buttons	YES
Status memory after power failure	NO
Activate on time	NO
Dedicated central control inputs	YES
Radio control	NO
Terminal	pluggable terminal blocks 2,5 mm²
Tightening torque	0,4 Nm
Power consumption	0,7 W
Working temperature	-25 ÷ 50 °C
Dimensions	1 module (18 mm)
Assembly	on rail 35 mm
Ingress Protection Marking	IP20

BIS-412 230 V manual (101.8k)

BIS-412 - outline CAD dxf (386.39k)

BIS declaration CE 2024 (180.09k)

BIS-412 Bedienungsanleitung (808.67k)

Przyciski podświetlane
W przypadku podłączenia zbyt dużej ilości przycisków podświetlanych może dochodzić do samoistnego załączania oświetlenia lub załączenia oświetlenia na stałe.

Maksymalny prąd obciążenia
Prąd styku podany w danych technicznych jest wartością maksymalną i może podlegać ograniczeniom – więcej informacji. Jeśli z przedstawionych informacji wynika, że przekaźnik w urządzeniu jest niewystarczający zaleca się stosować zewnętrzny element przełączający (np. stycznik) przystosowany do przełączania dużych prądów udarowych.

Pamięć stanu
Przekaźnik nie posiada "pamięci" pozycji styku. Oznacza to, że po załączeniu zasilania styk przekaźnika zawsze pozostanie w stanie wyłączonym.
