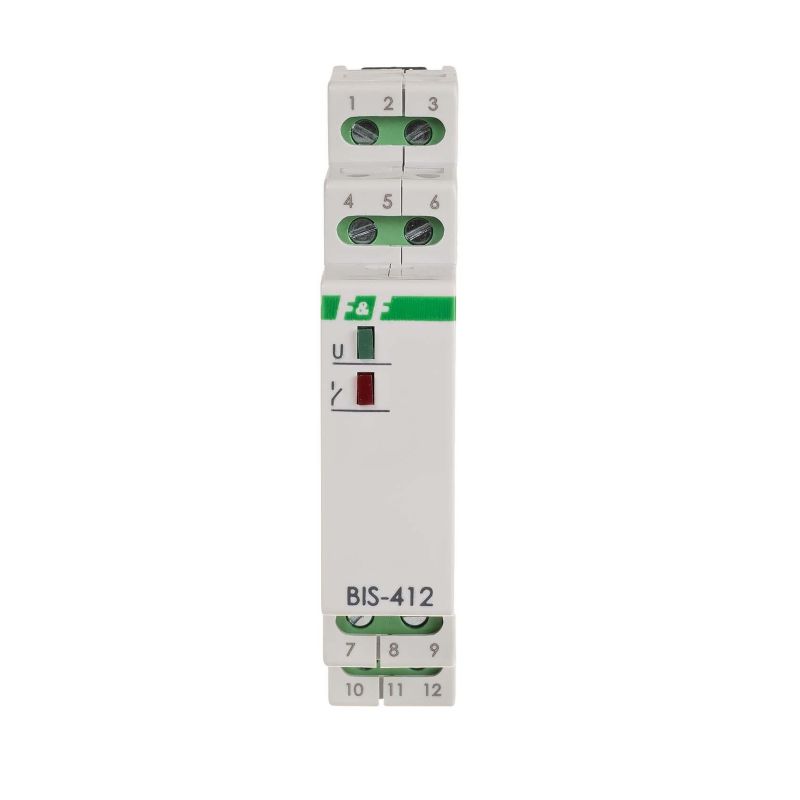

Electronic bistable impulse relay BIS-412M 230 V

BIS-412M, 5902431670195
BIS-412 electronic bi-stable pulse relay is designed for operation in a group configuration.
Power supply 230 V AC. Maximum load 16 A. On rail TH-35. With the memory of the contact position. Can be used with backlit buttons.
A single relay enables the activation and deactivation of the receiver controlled after each current pulse triggered by pushing a local control momentary push-button (bell-push). The group configuration enables the deactivation or activation of all receivers connected to individual relays by means of the central control push-buttons.

Functioning:
Local control
The receiver is activated after a current pulse that is triggered by pushing one optional momentary push-button  belonging to the local control group. The contact of the relay is switched to the 7-10 position. After a next current pulse, the receiver will be deactivated (the contact of the relay returns to the 7-12 position).
Central control
DEACTIVATE ALL - after a current pulse triggered by pushing the momentary push-button , all receivers will be deactivated (regardless of their status, i.e. deactivation or activation) that are controlled separately by individual relays. The contact in each relay will be switched to the 7-12 position.
ACTIVATE ALL - after a current pulse triggered by pushing the momentary push-button , all receivers will be activated (regardless of their status, i.e. deactivation or activation) that are controlled separately by individual relays. The contact in each relay will be switched to the 7-10 position.



Attention!
The BIS-412M 230V is compatible with bell pushes equipped with fluorescent lamps.



BIS-412M
Power supply voltage
165÷265 V AC
Local control
YES
Maximum AC-1 load current
16 A
The executive element
relay
Contact configuration
1 × NO/NC
Separation of the contact
YES
Resistance to shock currents
NO
Number of channels
1
functionality
group (hotel)
Delay of operation
0,1 ÷ 0,2 s
Control pulse current
less than 5 mA
Cooperation with illuminated buttons
YES
Status memory after power failure
YES
Activate on time
NO
Dedicated central control inputs
YES
Radio control
NO
Terminal
pluggable terminal blocks 2,5 mm²
Tightening torque
0,4 Nm
Power consumption
0,7 W
Working temperature
-25 ÷ 50 °C
Dimensions
1 module (18 mm)
Assembly
on rail 35 mm
Ingress Protection Marking
IP20




Przyciski podświetlane
Z uwagi na niskie napięcie zasilania nie należy stosować przycisków podświetlanych.

Maksymalny prąd obciążenia
Prąd styku podany w danych technicznych jest wartością maksymalną i może podlegać ograniczeniom – więcej informacji. Jeśli z przedstawionych informacji wynika, że przekaźnik w urządzeniu jest niewystarczający zaleca się stosować zewnętrzny element przełączający (np. stycznik) przystosowany do przełączania dużych prądów udarowych.

Pamięć stanu
Wersja przekaźnika z literą "M" posiada pamięć pozycji styku, tzn. po załączeniu zasilania zostanie przywrócony stan przekaźnika jaki był w momencie wyłączenia zasilania.
