Electronic bistable impulse relay BIS-409

View larger

Display all pictures

Product
Data sheet
Scheme
Tips
Comparision table
Download

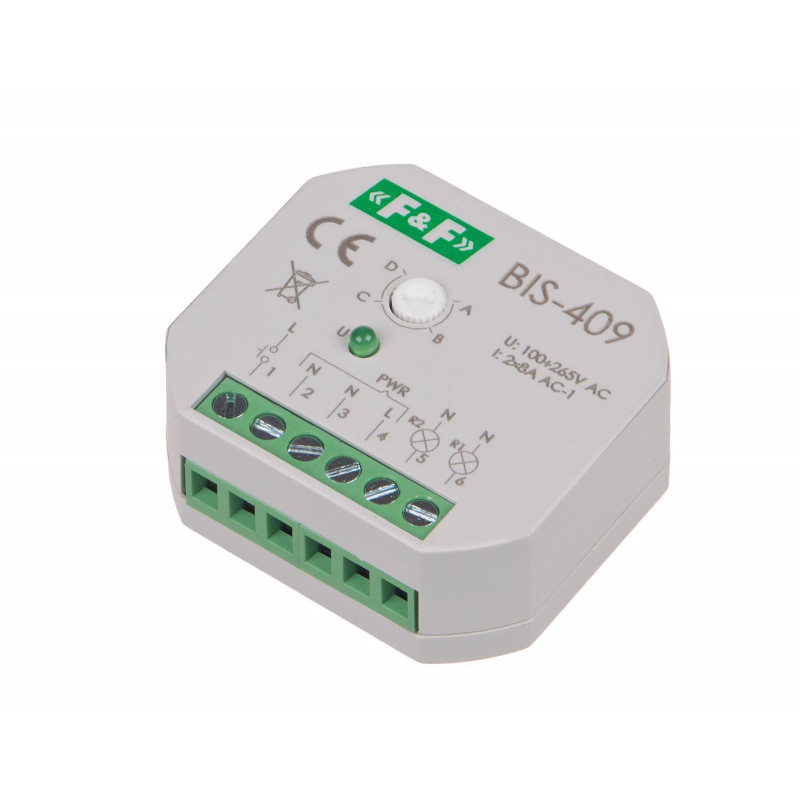

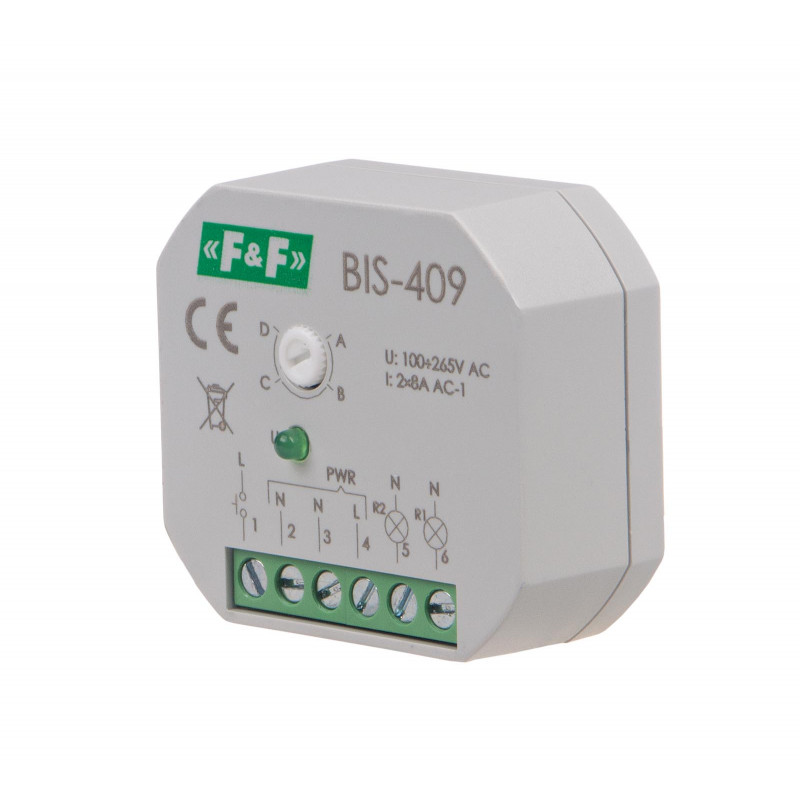

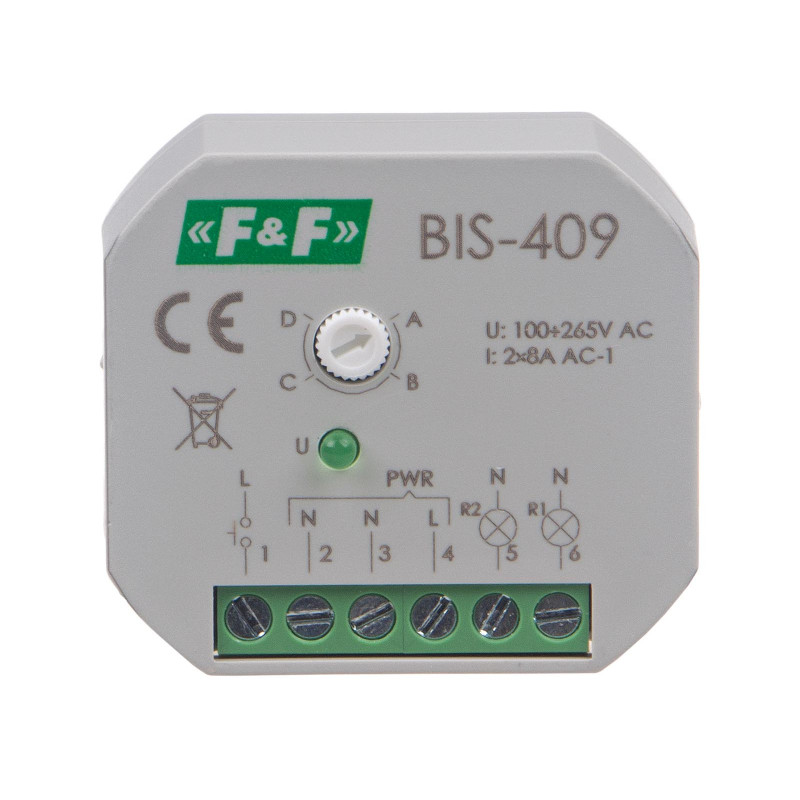

Electronic bistable impulse relay BIS-409

Reference: BIS-409, EAN13: 5908312598398

Product description

An electronic, bistable pulse relay enables switching on or off the lighting or other device from several different points by means of parallel, momentary (bell) control switches.
4-functioning. Sequential. Power supply 230 V AC. Maximum load 2 x 8A. Can be used with backlit buttons. The flush mounting box Ø60.

The BIS-409 relay has two switching sections and enables two circuits (branches) of lighting or other receivers to be connected according to the selected sequence from several different points.

Functioning
Power supply of the relay is signaled by the green LED. The sequential relay has two separate outputs R1 and R2. The contact status (closed / open) is forced sequentially according to the given program. Switching the contacts into the next state follows the next pulse of the control button. The switching of the R1 and R2 contacts is signaled by the lighting of the corresponding red LEDs R1 and R2. After a power failure, the contact status is reset. After restarting the supply voltage, the relay starts operation from sequence No. 0.

Note!
BIS-409 compatible with bell pushes equipped with fluorescend lamps. (ΣI<5mA).

Tabela mocy

The above data are indicative and will heavily depend on the design of a specific receiver (that is especially important for LED bulbs, energy-saving lamps, electronic transformers and pulse power supply units), switching frequency and operating conditions.

Power supply voltage	165÷265 V AC
Local control	YES
Maximum AC-1 load current	2 x 8 A
The executive element	relay
Contact configuration	2 × NO
Separation of the contact	NO
Resistance to shock currents	NO
Number of channels	2
functionality	sequential
Delay of operation	0,1 ÷ 0,2 s
Control pulse current	less than 5 mA
Cooperation with illuminated buttons	YES
Status memory after power failure	NO
Activate on time	NO
Dedicated central control inputs	NO
Radio control	NO
Terminal	pluggable terminal blocks 2,5 mm²
Tightening torque	0,4 Nm
Power consumption	0,7 W
Working temperature	-25 ÷ 50 °C
Dimensions	Ø54 (48×43 mm), height: 20 mm
Assembly	in a flush-mounted box Ø60
Ingress Protection Marking	IP20

BIS-409 manual (752.93k)

BIS-409 - outline CAD dxf (80.39k)

BIS declaration CE 2024 (180.09k)

Przyciski podświetlane
W przypadku podłączenia zbyt dużej ilości przycisków podświetlanych może dochodzić do samoistnego załączania oświetlenia lub załączenia oświetlenia na stałe.

Maksymalny prąd obciążenia
Prąd styku podany w danych technicznych jest wartością maksymalną i może podlegać ograniczeniom – więcej informacji. Jeśli z przedstawionych informacji wynika, że przekaźnik w urządzeniu jest niewystarczający zaleca się stosować zewnętrzny element przełączający (np. stycznik) przystosowany do przełączania dużych prądów udarowych.

Pamięć stanu
Przekaźnik nie posiada "pamięci" pozycji styku. Oznacza to, że po załączeniu zasilania styk przekaźnika zawsze pozostanie w stanie wyłączonym.
