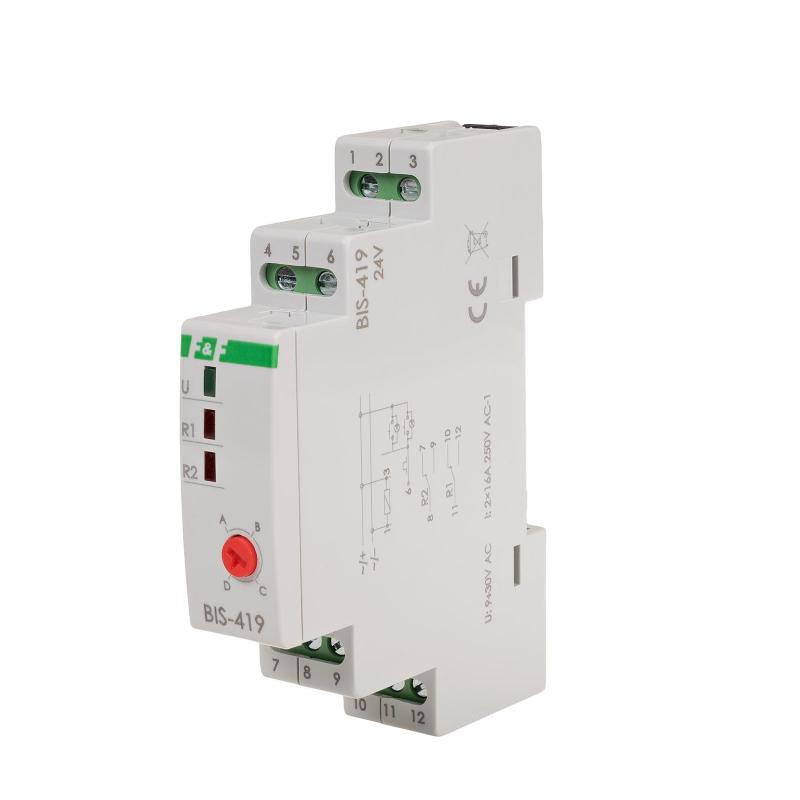

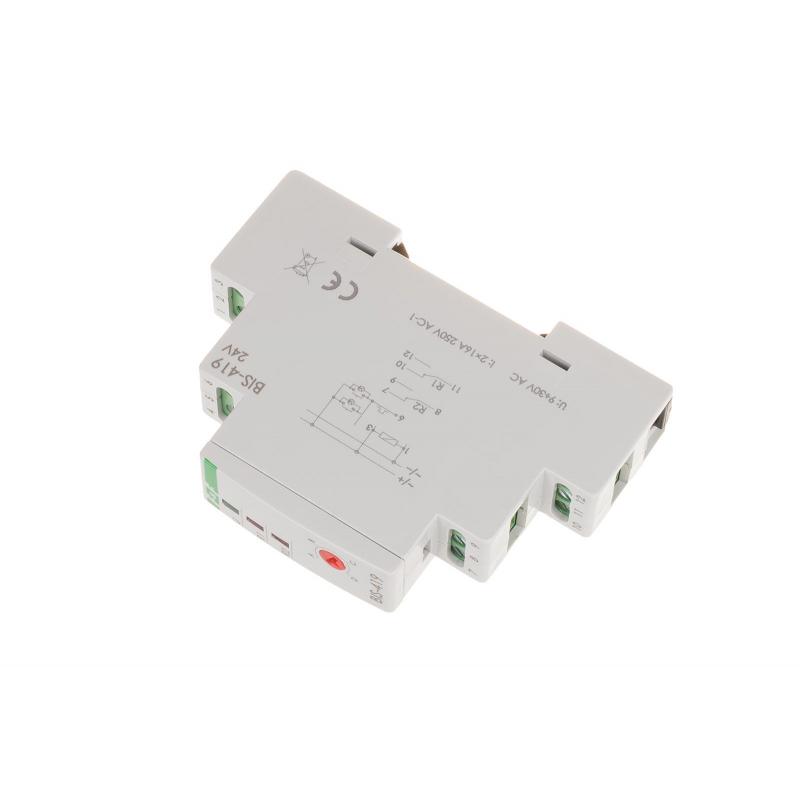

Electronic bistable impulse relay BIS-419 24 V

BIS-419-24V, 5908312599111
Electronic bistable pulse relay switch that turns on or off lights or other equipment from several different points with the parallel connected momentary (bell) control switches.

Sequential. 4-function. Power supply 24 V AC. Maximum load 2 x16 A. On TH-35 mm rail.

BIS-419 relay has two switching sections and allows for switching of two lightning circuits or others receivers from several different points and in accordance with the preselected sequence.

Operation

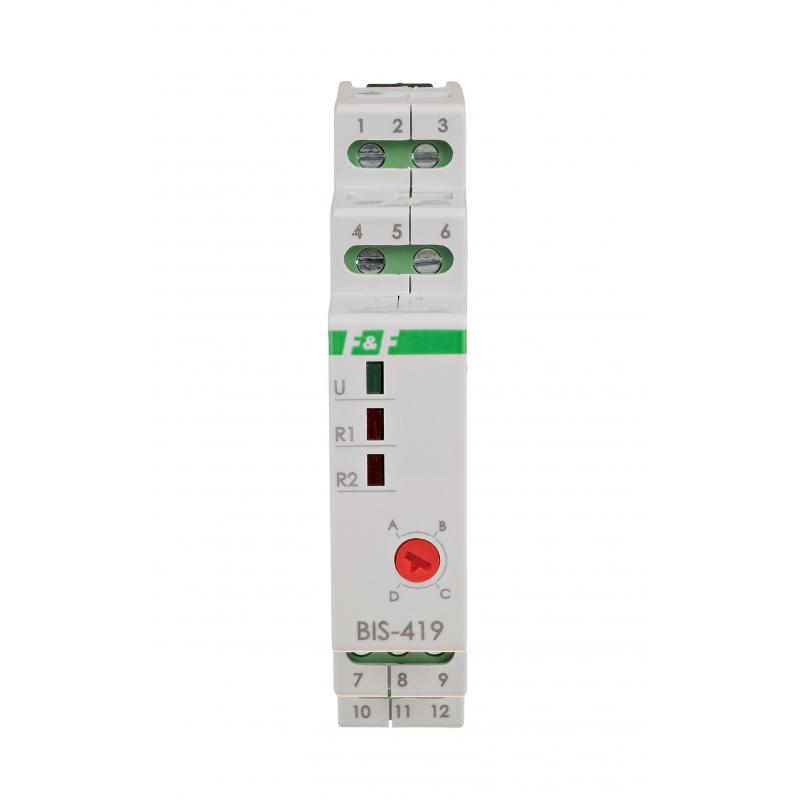

The relay power supply is indicated by a green LED U. Sequential relay has two separate outputs: R1 and R2. Contact status (closed/open) is forced sequentially in accordance with a predetermined program. Contacts switch to another state after subsequent pulse from control button. R1 and R2 contact activation is indicated by the relevant R1 and R2 red LED. After a power failure, contact state is reset. When the power is back on, the relay starts from the sequence number 0.


Note!
BIS-419 230 V can be used with backlit buttons.


Working function

Function A





Pressing the button subsequently repeats sequences 0-3.


Function B

* Pressing the button subsequently in less than 5 seconds  repeats sequences of 1-3.
* Subsequent pressing of the button after more than 5 seconds disconnects both contacts (sequence 0).
* Long press - in any sequence - disconnects both contacts (sequence 0).
* Pressing the button after both relays were turned off restores the last state (memory of state). Does not apply in the case of a relay power failure.


Function C

Pressing the button subsequently repeats sequences 0-3.


Function D




* Pressing the button subsequently in less than 5 seconds  repeats sequences of 1-3.
* Subsequent pressing of the button after more than 5 seconds disconnects both contacts (sequence 0).
* Long press - in any sequence - disconnects both contacts (sequence 0).
* Pressing the button after both relays were turned off restores the last state (memory of state). Does not apply in the case of a relay power failure.


Table of power




These data are indicative and will heavily depend on the design of a specific receiver (that is especially important for LED bulbs, energy-saving lamps, electronic transformers and pulse power supply units), switching frequency and operating conditions.



BIS-419-24V
Power supply voltage
9÷30 V AC/DC
Local control
YES
Maximum AC-1 load current
2 x 16 A
The executive element
relay
Contact configuration
2 × NO/NC
Separation of the contact
NO
Resistance to shock currents
NO
Number of channels
2
functionality
sequential
Delay of operation
0,1 ÷ 0,2 s
Control pulse current
less than 1 mA
Cooperation with illuminated buttons
NO
Terminal
pluggable terminal blocks 2,5 mm²
Tightening torque
0,4 Nm
Power consumption waking / working
0,15 W/0,9 W
Working temperature
-25 ÷ 50 °C
Dimensions
1 module (18 mm)
Assembly
on rail 35 mm
Ingress Protection Marking
IP20
Przyciski podświetlane
Z uwagi na niskie napięcie zasilania nie należy stosować przycisków podświetlanych.

Maksymalny prąd obciążenia
Prąd styku podany w danych technicznych jest wartością maksymalną i może podlegać ograniczeniom – więcej informacji. Jeśli z przedstawionych informacji wynika, że przekaźnik w urządzeniu jest niewystarczający zaleca się stosować zewnętrzny element przełączający (np. stycznik) przystosowany do przełączania dużych prądów udarowych.

Pamięć stanu
Przekaźnik nie posiada "pamięci" pozycji styku. Oznacza to, że po załączeniu zasilania styk przekaźnika zawsze pozostanie w stanie wyłączonym.
