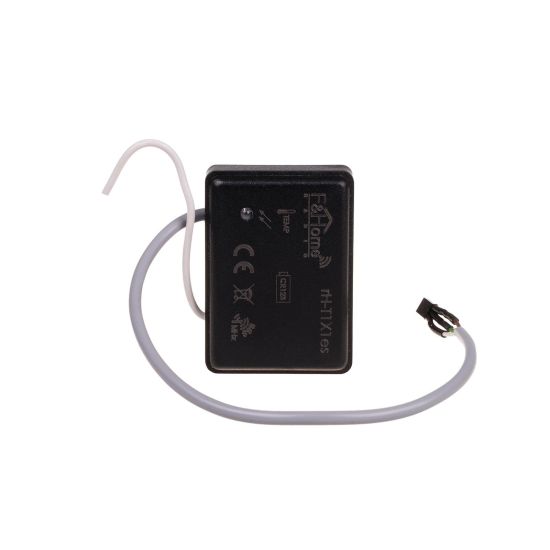

Battery module for temperature and brightness measurement with external temperature sensor rH-T1X1es

The rH-T1X1es measures ambient temperature and light intensity and sends results to the system. Communication with the server is done by radio. The light intensity sensor is located inside the casing and the temperature sensor is led out on a cable. Measurement of light intensity is carried out through a hole in the casing. Measurement of temperature is laden with time lag because of the casing. The temperature reading is sent at defined intervals or when a certain temperature change occurs. The rH-T1X1es module is particularly suitable for supporting the room temperature control system and for controlling the automatic lighting by measurement made on the outside of the building. Measuring at the output of the module is the approximate value of light intensity in lux. The output can be used for determining the brightness thresholds needed in the control rooms SX550 and SX553.

The rH-T1X1es module is represented by an object, which consists of one temperature output and one light intensity output.
