PZP probe
Float probe
The PZP float probe is designed for use in clean water tanks. It is equipped with electromechanical switches that signal the position of the probe based on which the presence or absence of water can be detected.
Fuctioning

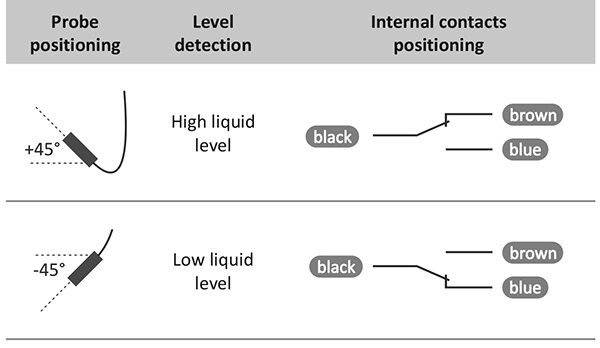

A 3-wire cable is attached to the probe (colours: black, brown, blue). Raising the probe to an angle of +45 degrees (or higher) will close the contact between the black and brown wires.
Lowering the probe at an angle of -45 degrees (or lower) will close the contact between the black and blue wires.
- Power supply voltage
- 250 V AC
- Electrical durability
- 20.000 cycles
- Maximum load current
- 8 A
- Mechanical strength
- 50.000 cycles
- Line
- 3-wire (integrated with probe)
- Working temperature
- ≤80°C
- Dimensions
- 142×93×42 mm
- Ingress Protection Marking
- IP68
- Cable leght
- 3 m
- Cable diameter
- 7,5 mm
- Wire cross-section
- 1.5 mm²
