PZP-830 submersible pump control relay
The PZP-830 controller is designed for comprehensive control of single-phase drives of deep well pumps with a power of up to 2.2 kW.
PZP-830
Submersible pump control relay.
(no probes in the set)
(no probes in the set)
Product designation
The PZP-830 controller is designed for comprehensive control and management
1-phase drives of deep well pumps with power up to 2.2 kW.
Function
The controller is designed to work with 2 (or 3) probes immersed in the well and with a sensor (e.g. float) with a contact output signaling when the filled tank is overflowing.

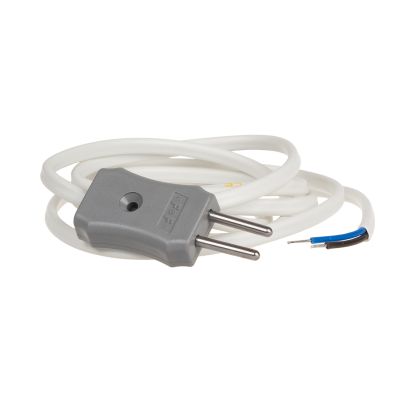

Probes available separately: PZ2 immersion probe, PZP float probe
Characteristics
» Checking the water level in the well;
» Possibility to protect against overfilling of the filled tank;
» Checking the correctness of the supply voltage;
» Detection of high motor operating current (overload);
» Detection of low motor operating current (dry running);
» Engine start control.
- Power supply voltage
- 150÷270 V AC
- Maximum load current
- resistive load (AC-1): 30 A / 250 V AC; motor inductive load (AC-3): 10 A / 250 V AC;
- Contact configuration
- 1 × NO
- Current measurement - measuring range
- 1÷30 A
- Display
- 2× 3-digit LED display (voltage and current indicator, configuration)
- Sensitivity
- 50 kΩ
- Terminal
- pluggable terminal blocks 4,0 mm²
- Power consumption
- 6 VA
- Working temperature
- -20÷55°C
- Dimensions
- 60×115×94 mm
- Assembly
- on TH-35 rail/panel mount
- Ingress Protection Marking
- IP20
- External probe
- float PZP, immersion PZ2 - Probes are not available in the set with the PZP-830 relay. The selected probe(s) must be ordered separately.
