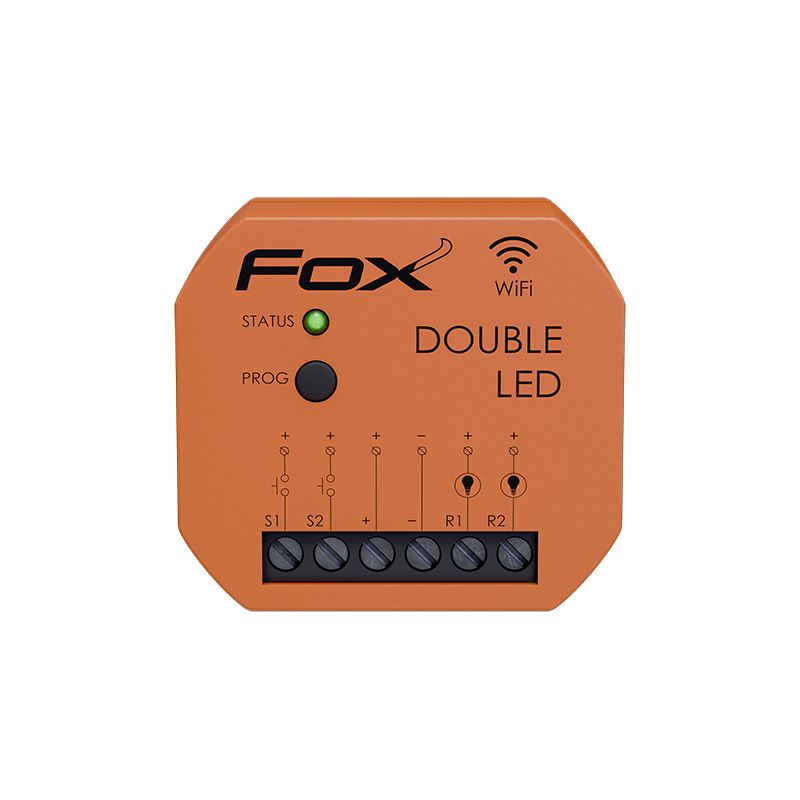

DOUBLE LED - 2-channels 12 V LED controller Wi-Fi

Wi-LED2S2-P, 5902431674216
2-channel 12/24 V LED lighting controller with a load capacity of up to 4 A per channel

Fox - sterowanie Wi-Fi logo
DOUBLE LED
  is a two-channel LED lighting driver powered by 9-30V DC. It gives the possibility to configure a smooth transition between the set brightness levels.




Ikony funkcje systemu FOX
Application for phones and tablets
Ikony funkcje systemu FOX
Remote access via Wi-Fi and F&F cloud
Ikony funkcje systemu FOX
Voice control
Ikony funkcje systemu FOX
Programming using calendars
Ikony funkcje systemu FOX
Works with 12/24 V LED lighting


Properties

  • 2-channels 12/24 V LED lighting controller with load capacity of up to 4 A per channel;
  • Ability to connect a local button for each channel to switch the light on/off (short press) and to adjust its brightness (long press);
  • Setting a given brightness level using the mobile application and programmable timers;
  • Built-in clock with power backup and backup copy of the work program guarantees proper operation also without a Wi-Fi connection;
  • REST API support enabling integration of the controller also with other home automation systems;
  • Built-in thermal protection;
  • Convenient installation in an installation box with a diameter of fi 60 mm.

The load capacity of the outputs can be increased with additional LED-AMP-1P or LED-AMP-1D amplifiers.

System sterowania przez Wi-Fi - moduł LED

FOX - Wi-Fi control system

Easy to install and rich in possibilities, wireless home automation system.


To control devices, the FOX system uses a free mobile application, which is available for devices with iOS and Android systems.
The application allows you to manage the installed modules in a simple and intuitive way. Thanks to the use of the home Wi-Fi network and the F&F cloud, you have the ability to constantly control devices at home from anywhere in the world with Internet access.
If you do not want to control your Fox system from outside your home, you can choose not to use the F&F cloud and still fully enjoy the functional control that works only over your local Wi-Fi or Bluetooth network.


FOX - system sterowania Wi-Fi - aplikacja mobilna




Application for Android devices
Application for iOS devices

Plan activities of the FOX system using online calendars

Use calendars and plan the operation of the module for the time of the day or evening. It depends on you when and what functions will be performed. You can schedule the lighting to be turned on at a given time or to water the garden at different times according to the schedule you set.

Control your voice with the Google assistant

The voice control service is available in Polish. After a simple configuration, the control of individual devices may be performed by saying the phrase: “Ok Google. Open all blinds. ”,“ Turn on blue light in entertainment room ”, or when you leave the house:“ Ok Google. Turn off all devices. "



Aplikacja FOX - planowanie działań na podstawie kalendarzy




Wi-LED2S2-P
Power supply voltage
9÷30 V DC
Control input
9÷30 V DC
Control pulse current
mniej niż 3 mA
Maksymalny prąd obciążenia (AC-1) - prąd znamionowy
2×5 A
Maximum load current (AC-1)
2×8 A
Radio frequency
2,4 GHz
Transmission
WI-FI
Radio power (IEEE 802.11n)
≤ 13 dBm
Receiver sensitivity
-98 dBm
Terminal
pluggable terminal blocks 2,5 mm²
Tightening torque
0,4 Nm
Power consumption
czuwanie: 1,2 W; praca (włączony przekaźnik): 2,2 W
Working temperature
0÷45°C
Dimensions
Ø54 (48×43 mm), height: 20 mm
Assembly
in a flush-mounted box Ø60
Ingress Protection Marking
IP20
Schemat podłączenia modułu Double LED
