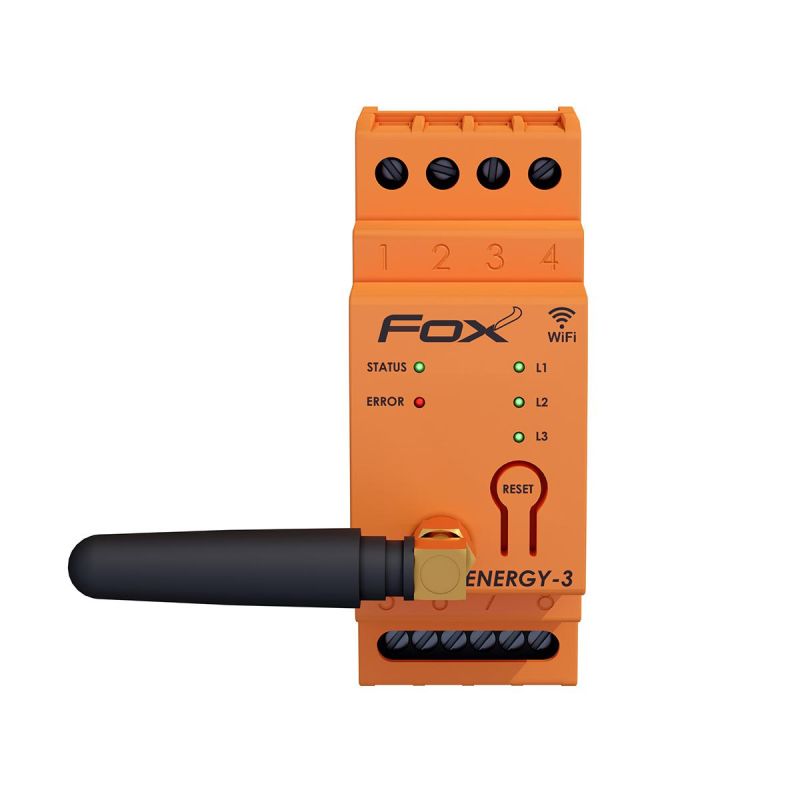

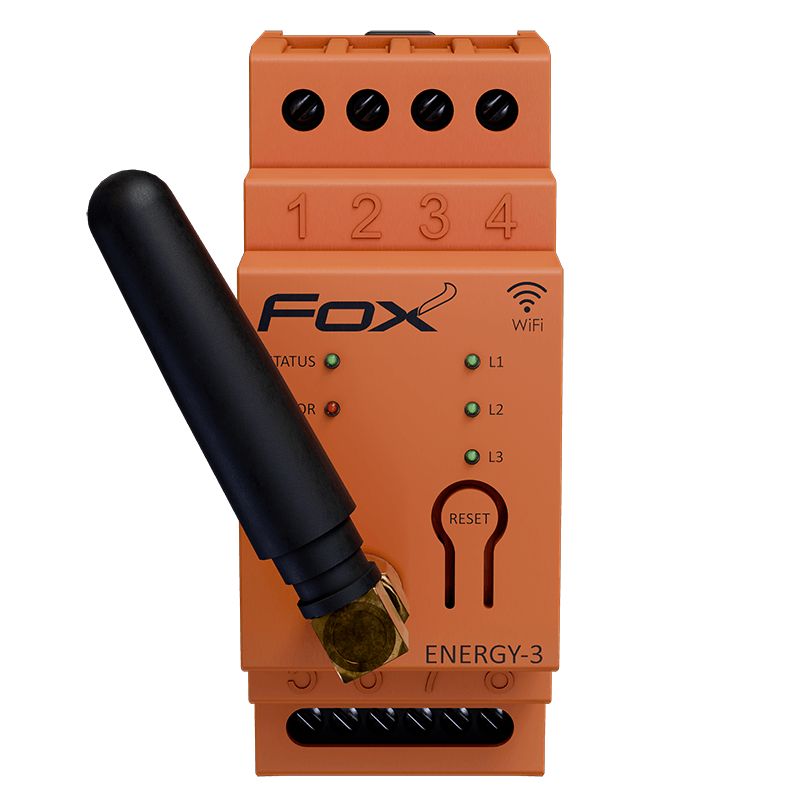

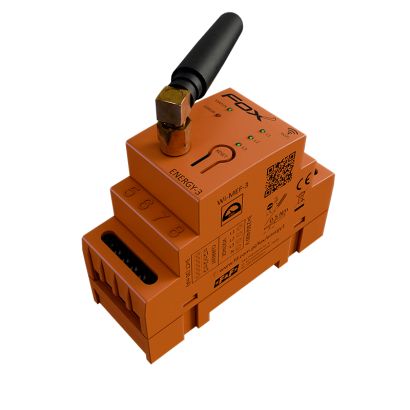

3-phase energy consumption monitor wi-fi - ENERGY 3
3-phase, 2-way, 4-quadrant electricity consumption monitor.
Perfect for monitoring photovoltaic installations, among other things
ENERGY 3 allows you to record electricity consumption and monitor important network parameters - voltage, current, power, energy consumption. Access to the data is possible directly from the application or via a web browser.
Access to data using the application or via a web browser
Remote access via Wi-Fi and F&F Cloud
Monitoring of electrical network parameters
Application
- Monitoring of energy consumption in domestic installations;
- Ongoing measurement of power consumption and values of currents and voltages;
- Use of recorded measurements to detect exceedances in voltage levels or power consumption;
- Controlling energy production in photovoltaic installations;
- Metering of heat pumps.
Properties
- 3-phase, 2-way, 4-quadrant electricity consumption monitor, perfect for monitoring photovoltaic installations, among other things;
- Monitoring of all relevant electrical network parameters;
- Recording of average, minimum and maximum values;
- Non-invasive installation using miniature (26×26×40 mm) current transformers;
- Measuring range up to 40 A, suitable for domestic installations;
- High measurement accuracy;
- Access to measurement history via app or web browser;
- Communication via home Wi-Fi network and remote access via the F&F Polish cloud;
- Free mobile apps for Android and iOS;
- Fully Polish solution focused on security and user privacy;
- No hidden running costs and guaranteed long-term product support;
- Mounting in a distribution box (DIN rail);
- Including 3 current transformers and an antenna.
Miniature, open-ended current transformers are supplied with the unit. No interference with the current leads is required to clip them onto the measured leads, but special attention must be paid to the way the lead is passed through the transformer and to the connection of the secondary side of the transformer to the device.
Miniature current transformer to be fastened on the measured conductors.
FOX - Wi-Fi control system
Easy to install and rich in possibilities, wireless home automation system.
Application for Android devices
App for iOS devices
| Links and interfaces | ||
|---|---|---|
| Telemetry | https://telemetron.fhome.cloud | |
| Password reset | https://fhome.cloud/#/public/users/password-reset |
- Power supply voltage
- 3× 230/400 V AC (-25%÷15%)
- Frequency
- 50÷60 Hz
- Installation
- 3-phase, 4-wire
- Accuracy - meter
- 1%
- Accuracy - measuring transformers
- 0,5%
- Transformer parameters - primary current
- 40 A
- Transformer parameters - secondary current
- 30 mA
- Transformer parameters - cable diameter
- ≤10 mm
- Meter constant
- 1000 imp/kWh
- Humidity (non-condensing)
- ≤ 90%
- Radio frequency
- 2,4 GHz
- Transmission
- WI-FI
- Radio power (IEEE 802.11n)
- ≤ 20 dBm
- Receiver sensitivity
- -98 dBm
- Terminal
- 2.5 mm² screw terminals (cord); 4.0 mm² screw terminals (wire)
- Tightening torque
- 0,5 Nm
- Power consumption
- ≤ 2 W
- Working temperature
- -20÷50°C
- Dimensions
- 2 moduły (35 mm) - 90 x 35 x 85 mm z anteną
- Assembly
- on rail 35 mm
- Ingress Protection Marking
- IP20
