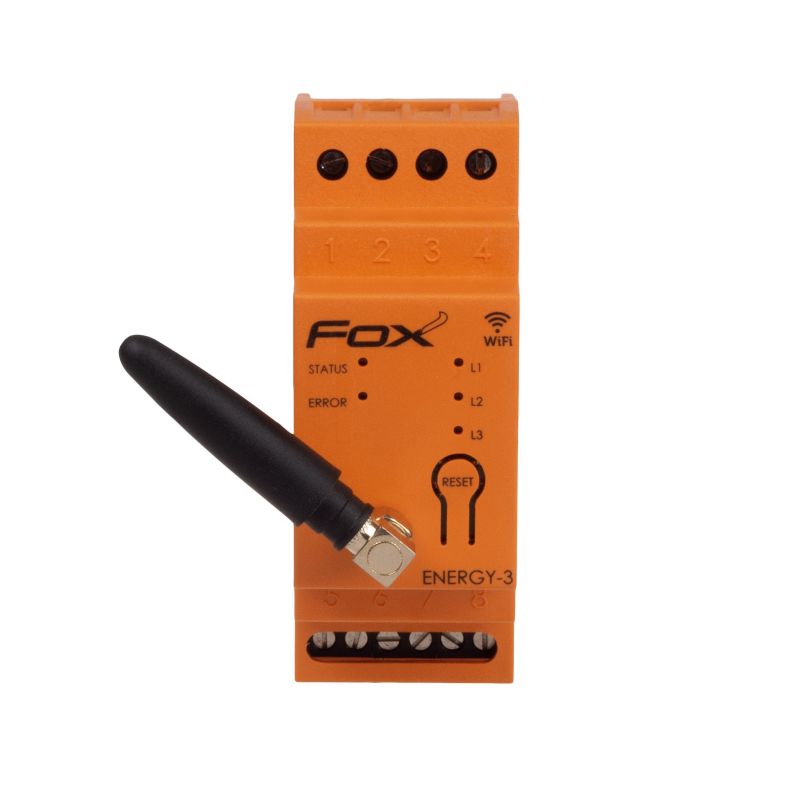

Monitor-counter energy consumption wi-fi, 3 phase - ENERGY-3-400
Three-phase electricity consumption monitor-counter.
Works wirelessly over wi-fi.
Measuring range up to 400 A.
With 400 A transformers.
Works wirelessly over wi-fi.
Measuring range up to 400 A.
With 400 A transformers.
Monitoring of all relevant parameters of the electrical network.
ENERGY-3-400 - wireless (works on wi-fi network) electricity consumption meter. It records electricity consumption and monitors relevant network parameters - voltage, current, power, energy consumption. Access to the data is possible directly from the application or via a web browser. Communication is done wirelessly via wi-fi and the F&F cloud.
Access to data via the app or via a web browser
Remote access via wi-fi network and F&F cloud
Monitoring of network parameters
Application of the Energy-3-400 energy monitor (WI-MEF-3-200A)
- Monitoring of energy consumption in domestic installations;
- Ongoing measurement of power consumption and values of currents and voltages;
- Use of recorded measurements to detect voltage or power consumption overruns;
- Control of energy production in photovoltaic installations;
- Metering of heat pumps.
Features of the Energy-3-400 Wireless Home Energy Meter (WI-MEF-3-400A).
- 3-phase, 2-way, 4-quadrant electricity consumption monitor, perfect for, among other things, the supervision of photovoltaic installations and heat pump metering;
- Monitors all relevant parameters of the electric grid;
- Records average, minimum and maximum values;
- Non-invasive mounting on the measured wires using miniature (56×87×42 mm) current transformers;
- Measuring range up to 400 A, suitable for domestic installations;
- High measurement accuracy;
- Access to measurement history via app or web browser;
- Communication via home Wi-Fi network. Remoteaccess is guaranteed by the F&F Polish cloud;
- Operation via free mobile apps for Android and iOS;
- Fully Polish solution focused on security and user privacy;
- No hidden operating costs and guaranteed long-term product support;
- Installation of the wifi monitor-counter in the distribution box (DIN rail);
- Comes with 3 current transformers and antenna.
Miniature open current transformers are supplied withthe device. No interference with the current wires is required to clip them onto the measured wires. However, special attention should be paid to how the wire is passed through the transformer and how the secondary side of the transformer is connected to the device.
Miniature current transformer for fastening on measured wires.
FOX - Wi-Fi control system
Easy to install and rich in capabilities wireless home automation system.
Application for Android devices
App for iOS devices
| Links and interfaces | ||
|---|---|---|
| Telemetry | https://telemetron.fhome.cloud | |
| Password reset | https://fhome.cloud/#/public/users/password-reset | |
| RestAPI for Fox devices | https://github.com/fandf92/foxrestapiclient/wiki | |
| RestAPI client in Python for Fox devices | https://github.com/fandf92/foxrestapiclient | |
| Passwords and device sharing | Download | |
| Google calendar integration | Download | |
| Integration with iCloud calendar | Download | |
| Outlook calendar integration | Download | |
| Programmers | Download |
- Power supply voltage
- 3× 230/400 V AC (-25%÷15%)
- Frequency
- 50÷60 Hz
- Installation
- 3-phase, 4-wire
- Accuracy - meter
- 1%
- Accuracy - measuring transformers
- 0,5%
- Transformer parameters - primary current
- 400 A
- Transformer parameters - secondary current
- 30 mA
- Transformer parameters - cable diameter
- ≤34 mm
- Meter constant
- 1000 imp/kWh
- Humidity (non-condensing)
- ≤ 90%
- Radio frequency
- 2,4 GHz
- Transmission
- WI-FI
- Radio power (IEEE 802.11n)
- ≤ 20 dBm
- Receiver sensitivity
- -98 dBm
- Terminal
- 2.5 mm² screw terminals (cord); 4.0 mm² screw terminals (wire)
- Tightening torque
- 0,5 Nm
- Power consumption
- ≤ 2 W
- Working temperature
- -20÷50°C
- Dimensions
- 2 moduły (35 mm) - 90 x 35 x 85 mm z anteną
- Assembly
- on rail 35 mm
- Ingress Protection Marking
- IP20
