FW-STR1P-P

This offer is addressed to customers who want to improve the quality of life. Simple assembly and configuration of the system elements make F&Wave perfectly fit the "DIY" concept. It is inexpensive and effective.

The unique feature of the F&Wave system is signal retransmission - each receiver that receives a control signal from the transmitter automatically transmits it further, which increases the range of control in the case of remote receivers from the transmitter.

The system consists of receivers - executive devices manufactured in the version for installation to under plaster box Ø60 and for mounting on rail 35 mm (1 module - 17.5 mm). In the F&Wave system there are also transmitters, made as handheld remotes and in the version for mounting in plaster box.

Features of the module

• Roller shutter controller with AC motors;
• Cooperation with F&Wave remote control transmitters;

Multifunctional roller blind controller. Implemented functions:

• 230V drive controller
• local and remote control:

  • - 1-button
  • - 2-button
  • - 2-button central
• lock function, preventing turning on
• power supply on both motor windings
• each button / transmitter (local and remote) can have a different function
• the ability to link the controller with 32 transmitters

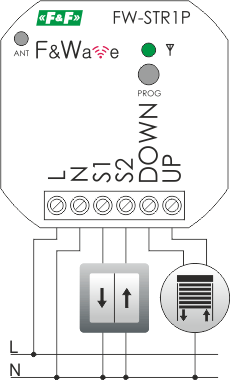

• two local control inputs - the ability to directly control the relay using any monostable button (eg bell);
• two output contacts for both roller blind directions with a load capacity of 0.6 A (AC-3);
• small size of the housing;
• screw terminals for easy installation in Ø60 flush-mounted box;
• retransmission of commands from the transmitter - the possibility of increasing the range of remote control;
• low power consumption - low operating cost;
• built-in electronic thermal protection, preventing damage in case of excessive driver load;
• electrical blockade to prevent power from being applied to both motor windings

Operating range
In an open space without any interfering factors the range of the devices controlled by radio fluctuates within the limits of 100 m. The range can be improved by direct retransmission of modules located in mutual coverage area.
