Glass button GS-4DC-B

GS4-DC-B, 5902431672175
4-channel touch button with proximity function. Supply voltage 9÷30 V DC.

Purpose
The GS-4DC glass button is designed for installation in a Ø60 mm installation box and is dedicated to work with any home automation powered by low DC voltage. The external, white spotlight after a hand's approach gently brightens to indicate the location of the touch sensors. The activation of the selected circuit is signaled by switching on the spotlight in orange.



Functions
- 4 independent touch buttons;
- 2 operating modes, set independently for each button:

  • bistable mode - one pressing activates the output circuit, the second pressing switches off the output circuit;
  • monostable mode - the output circuit will be switched on as long as the button is pressed;

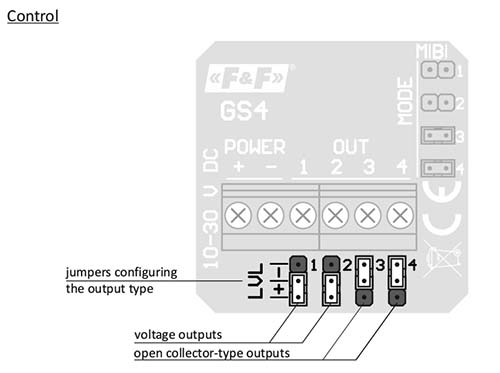

- 2 types of control output signal, set independently for each button:

  • voltage output - the output circuit is switched on by supplying positive voltage to the OUT output;
  • potential-free output - the output circuit is switched on by closing the OUT output to the level of 0V (open collector output - OC);
  • the ability to adjust the brightness of the backlight to individual preferences (separately for the on and off state).



GS4-DC-B
Power supply voltage
9÷30 V DC
Control inputs
4
Output rating (AC-3)
30 mA/ kanał
The executive element
transistor
Sterowanie bezpotencjałowe
otwarty kolektor typu OC
Sterowanie napięciowe
napięcie zasilania -0,5 V
Terminal
pluggable terminal blocks 2,5 mm²
Power consumption waking / working
0,05W/0,25W
Working temperature
-25 ÷ 50 °C
Dimensions
81 mm × 81 mm ×12 mm
Assembly
in a flush-mounted box Ø60
Stopień ochrony - front
IP50
Stopień ochrony - tył
IP20
