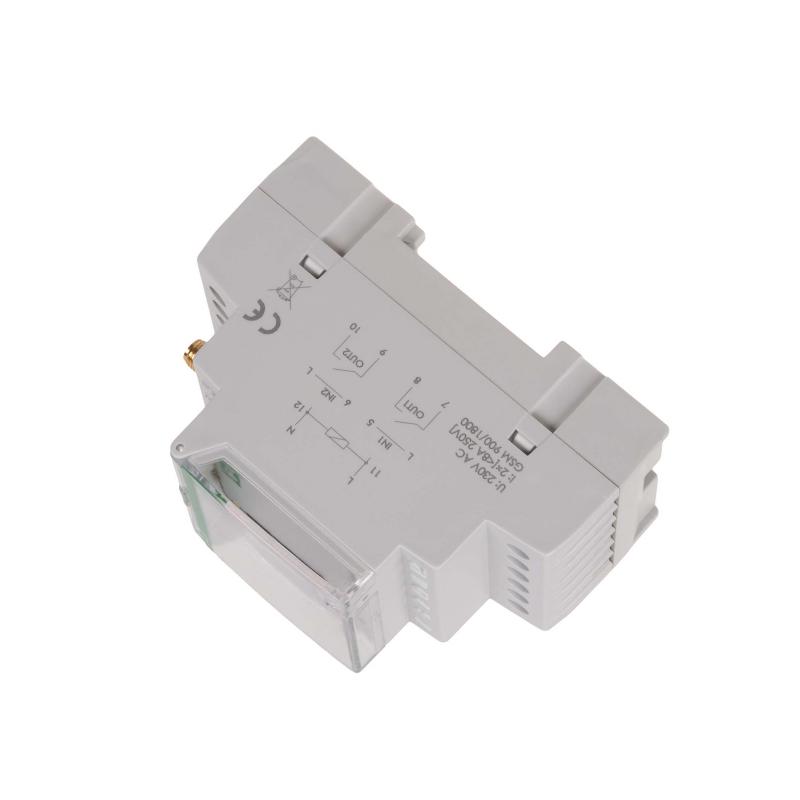

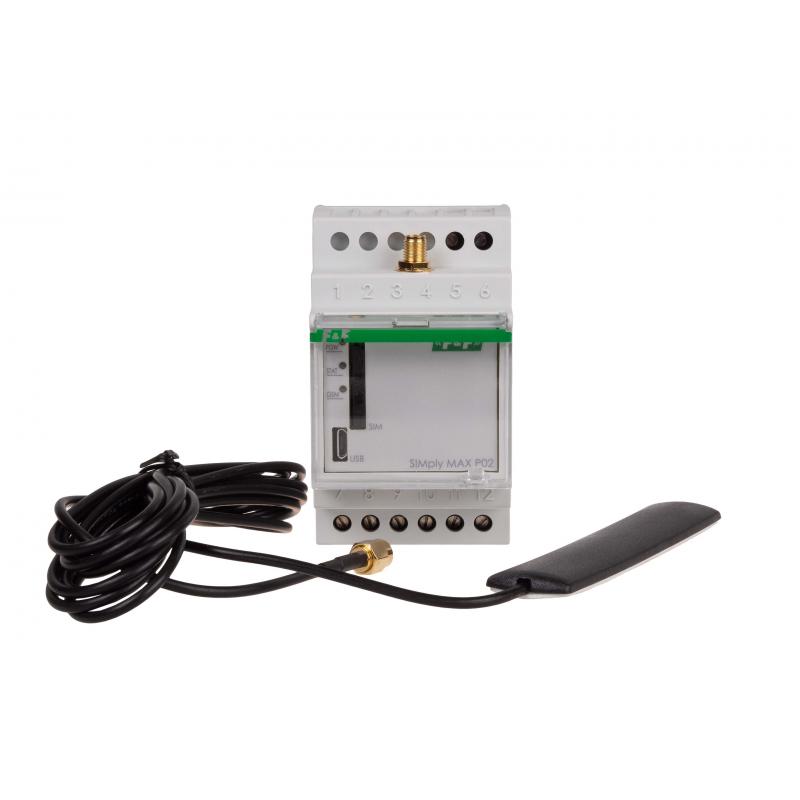

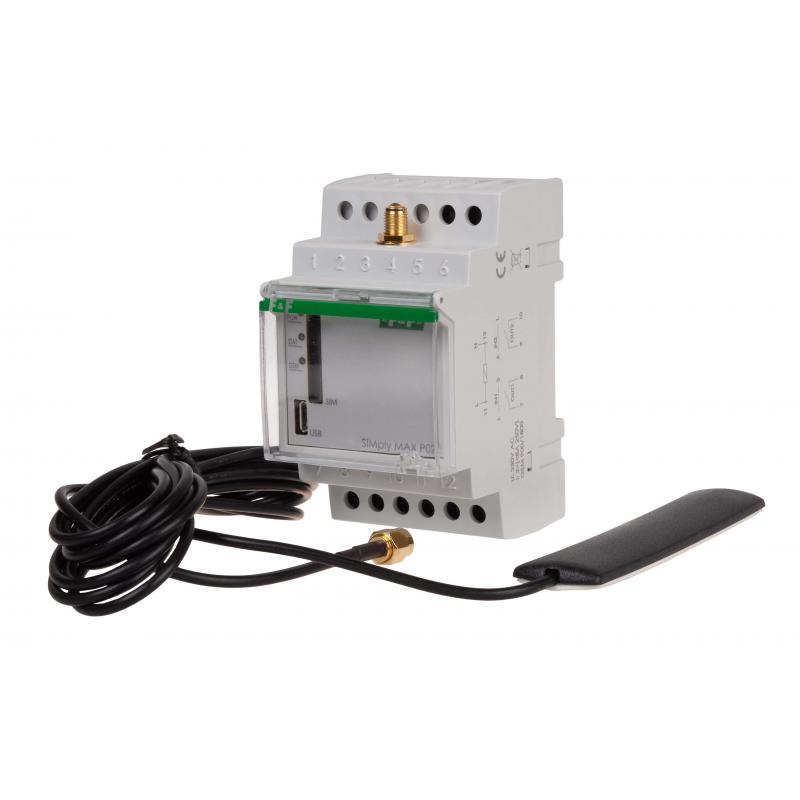

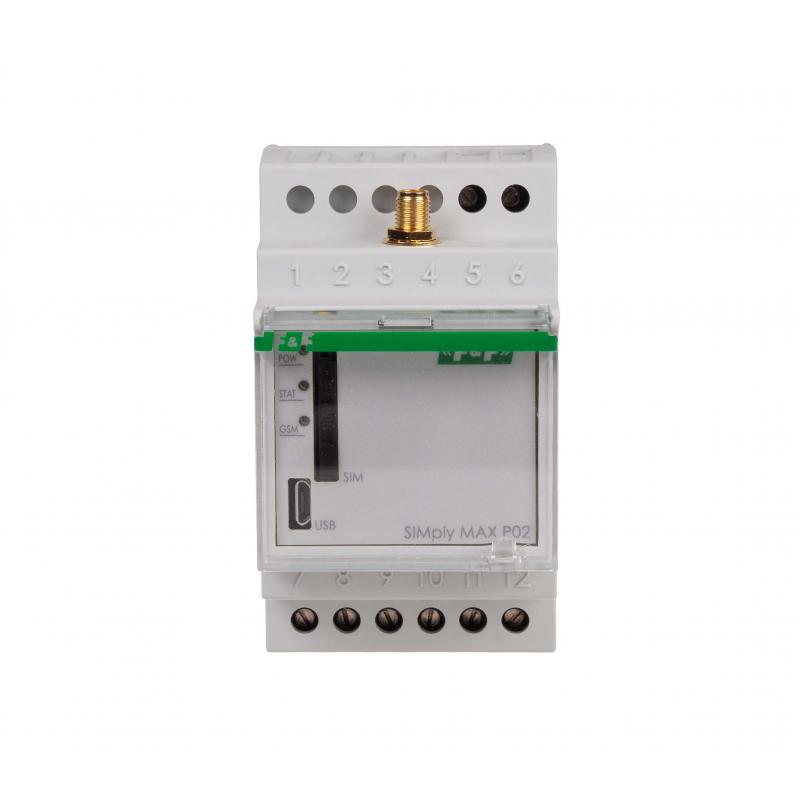

SIMply MAX P02 - GSM gate controller
Control gate (CLIP function).
SIMply MAX P02 is a GSM relay which allows to remotely open automatic gates, garage doors, barriers using a mobile phone. It can be used for objects with protected access and a large number of users in order to eliminate cost of remote controls for every user.
Functioning
Relay can works with any GSM 900/1800 mobile operator (no SIMLOCK). In order to operate properly a valid SIM card has to be installed.
Controller has two output relays used to generate external signals for gate openers or electric door bolts. Both of relays are working parallel but different signal durations can be set.
Thanks to the use of CLIP service all of commands are performed with no additional costs. The user dials to the controller number and waits until the controller rejects his connection. Relay verifies incoming phone number and decide to execute or ignore command. Additional external switches can be connected to device in order to control relays manually. In automatic mode, the relay output is activated again after a certain time in order to close the gate.
Functions
* cost-free operations (GSM CLIP service)
* two output relays with separated switching time settings
* possibility to set two different close times for both outputs
* two inputs witch can be used to direct control of the devices with external switches
* automatic close function with programmable delay
* PC configuration software
* memory for 500 mobile phone numbers
Configurator
Software packet consist two files: Configurator window and "phonebook" file.
The "phonebook" file stores phone numbers and user descriptions.
PC software can by run on computers with following operating systems: Windows 2000, Windows NT, Windows XP, Windows Vista, Windows 7, Windows 8, Windows 10.
- Power supply voltage
- 230 V AC
- The executive element
- 2 x relay
- Maximum load current
- 8 A
- Contact configuration
- 2 × NO
- Inputs quantity
- 2
- Inputs - voltage tolerance
- 160÷260 V AC
- ports
- SIM
- Antenna connector type
- SMA
- GSM antenna dimensions
- 20 mm x 100 mm
- The length of the antenna wire
- 2,5 m
- Terminal
- pluggable terminal blocks 4,0 mm²
- Tightening torque
- 0,5 Nm
- Power consumption waking / working
- 1,3 W / 3 W
- Working temperature
- -10÷50°C
- Dimensions
- 3 modules (52,5 mm)
- Assembly
- on rail 35 mm
- Ingress Protection Marking
- IP20
