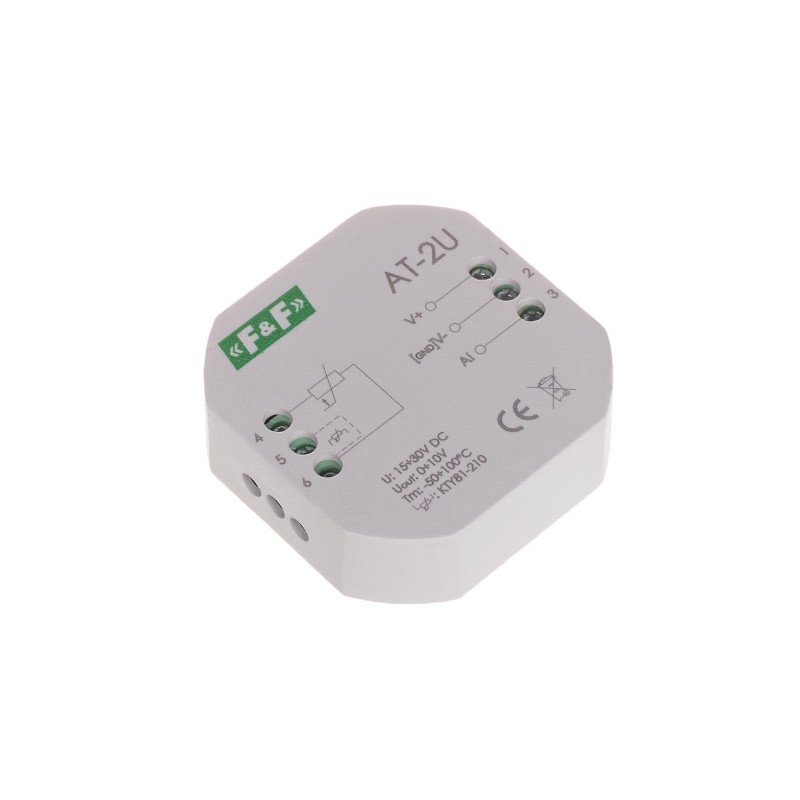

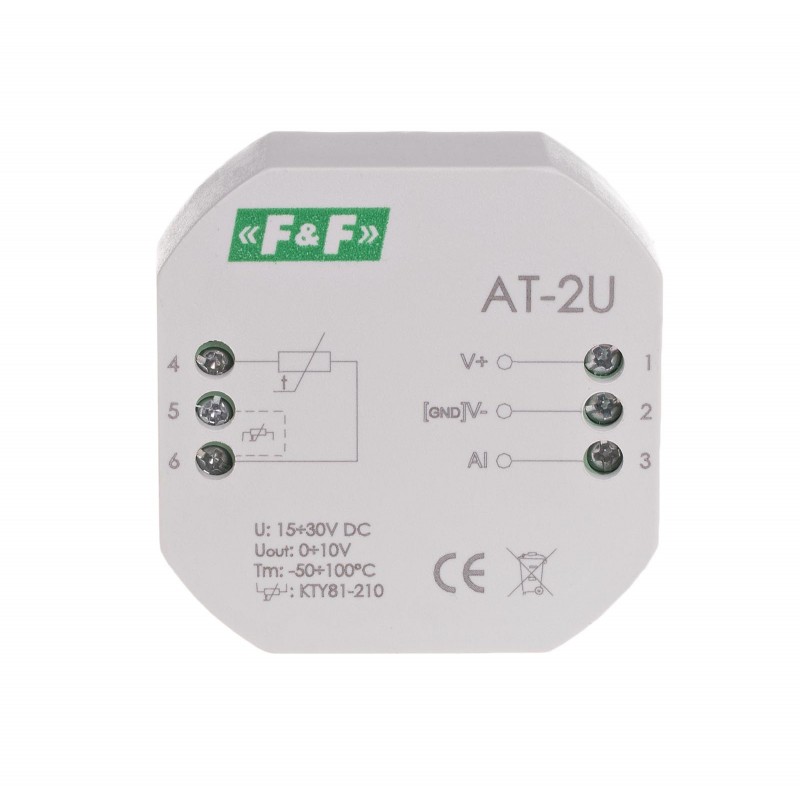

Temperature transducer AT-2U
Analog temperature transducer. Voltage 0÷10 V.
The analog transducers dedicated for measuring physical values w ith an external or internal sensor and converting the measured features to the standard analog current signal output 4÷20 mA or voltage 0÷10 V.
The analog transducers dedicated for measuring physical values w ith an external or internal sensor and converting the measured features to the standard analog current signal output 4÷20 mA or voltage 0÷10 V.
Purpose
The AT-2I transducer continuously converts the resistance of the external temperature sensor to the output DC signal in the range of 4÷20 mA. As a result of the transformation, a current appears in the output proportional to the temperature of the environment in which the temperature sensor is located.

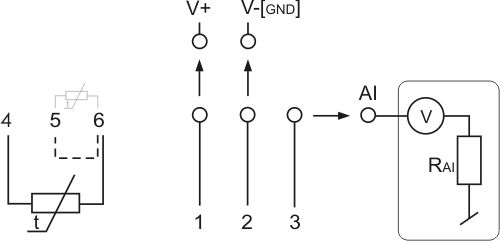

The module works in one of two options - with the internal sensor or external probe.
The module works with resistance-type temperature sensor KTY81-210 (or similar).
A dedicated temperature probe of F&F production: RT probe or RT2 probe.
The module's signal output is protected by an anti-interference filter that eliminates network disturbances that affect the accuracy of the transmitted signal. This allows the use of signal lines up to 20m long.
- Power supply voltage
- 9÷30 V DC
- Measurement range
- -50°С÷100°С
- Temperature probe
- RT/RT2
- Internal temperature sensor
- KTY81-210
- Maximum measuring error
- ±1,5°С
- Output signal
- 0÷10 V
- Processing error
- ±0,5%
- The length of the signal output wire
- 20 m
- Terminal
- pluggable terminal blocks 2,5 mm²
- Tightening torque
- 0,4 Nm
- Power consumption
- 0,8 W
- Working temperature
- -20÷50°C
- Dimensions
- Ø 55 mm; height: 13 mm
- Assembly
- in a flush-mounted box Ø60
- Ingress Protection Marking
- IP20
