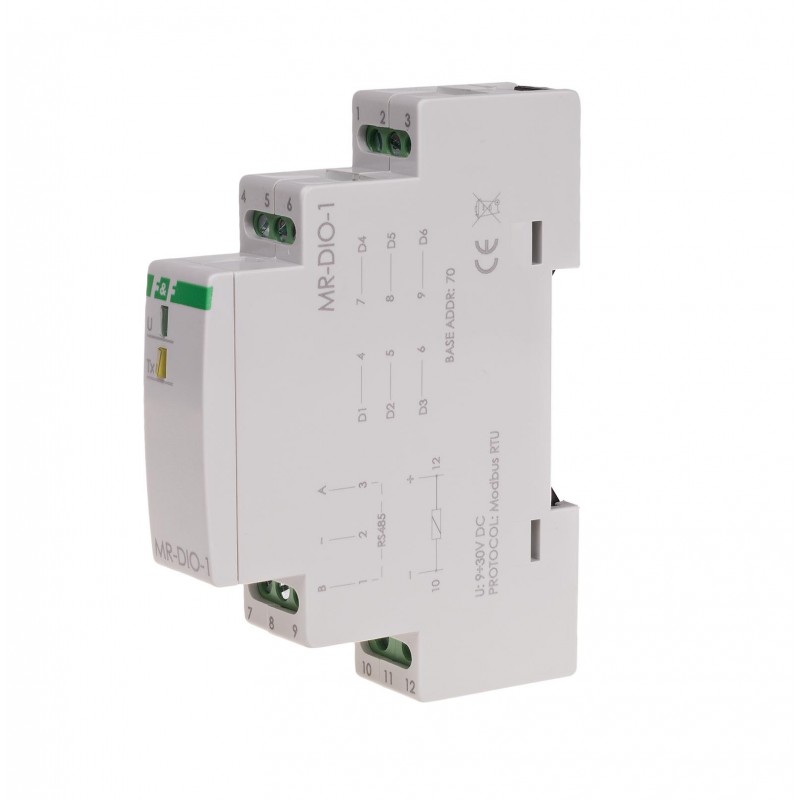

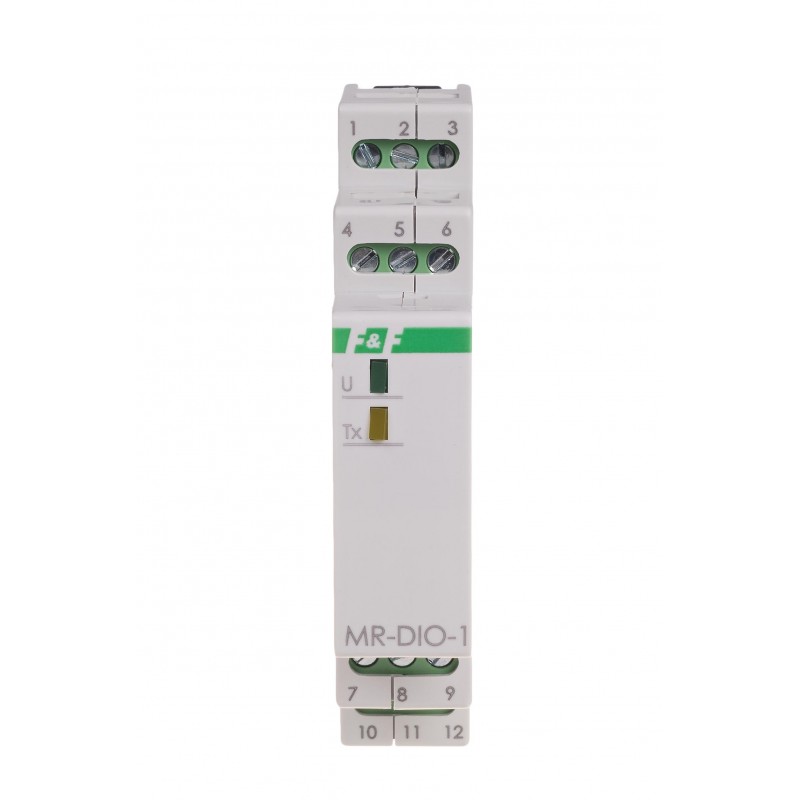

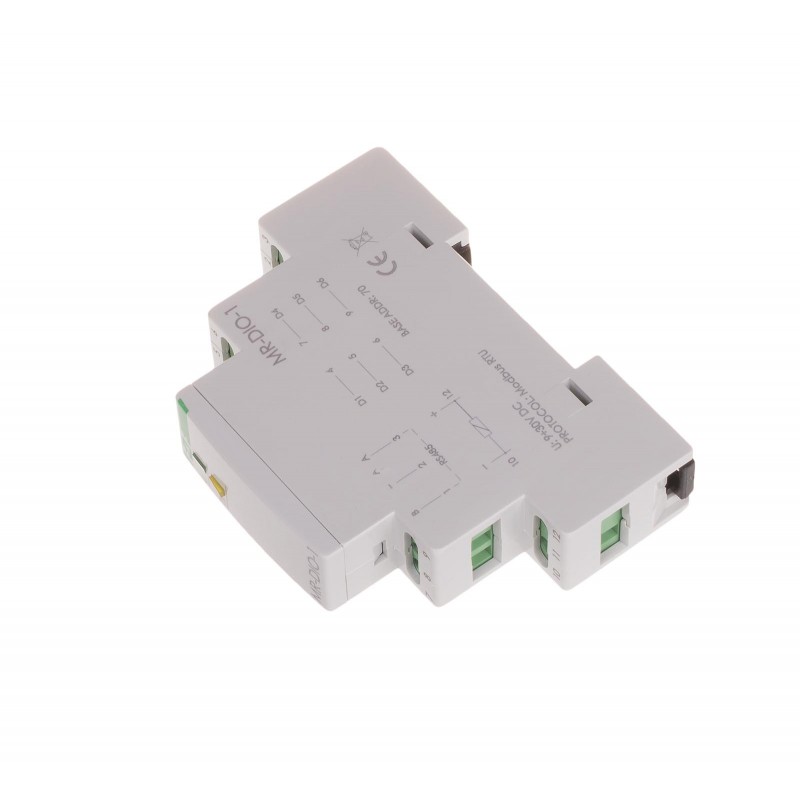

I/O model MR-DIO-1
I/O model with MODBUS RTU output.
Module MR-DIO-1 serves as an external expansion device digital inputs or outputs programmable logic controllers PLC or other devices in which data exchange is via RS-485 port in accordance to the MODBUS RTU protocol.
Module MR-DIO-1 serves as an external expansion device digital inputs or outputs programmable logic controllers PLC or other devices in which data exchange is via RS-485 port in accordance to the MODBUS RTU protocol.
Functioning
Module MR-DIO-1 has six universal contacts. Each of the contacts depending on how the connection can be a digital input or output. Digital input, treated as a "dry contact", is realized by closing the circuit the input to the "minus" power supply module. Digital output, described as "open collector", is realized by closing the circuit the output to the "plus" of power supply module
The module has a recording of output function in non-volatile local memory. After each power-output module will revert to a saved state.
Reading status of contacts, setting their status and communication parameters is realized through the RS-485 port using MODBUS RTU communication protocol.
Reset communication settings
Under cover is available code switch.
Details of resetting available in the instructions below.
- Power supply voltage
- 9÷30 V DC
- ports
- RS-485
- Communication protocol
- MODBUS RTU
- Baudrate
- 1200÷115200 bit/s
- Data bits
- 8
- Stop bits
- 02-sty
- Bits of parity
- EVEN / ODD / NONE
- Address
- 1÷247
- Power consumption (max)
- 25 mA
- Number of DI / DO contacts
- 6
- Contact voltage
- 50 V
- Working contact current - permanent
- 100 mA
- Working contact current - pulsed (20%)
- 200 mA
- Terminal
- pluggable terminal blocks 2,5 mm²
- Tightening torque
- 0,4 Nm
- Power consumption
- 0,5 W
- Working temperature
- -20÷50°C
- Dimensions
- 1 module (18 mm)
- Assembly
- on rail 35 mm
- Ingress Protection Marking
- IP20
MR-DIO-1 I/O connection
Wiring diagram, depending on the selected function of contact DI/DO
Module in RS-485 network
Network address setup
Reset communication settings
Wiring diagram, depending on the selected function of contact DI/DO
Module in RS-485 network
Network address setup
Reset communication settings
