Temperature transducer AT-3I
Analog temperature transducer for PT-100. Current (4-20 mA).
The AT-3I transducer is designed for temperature measurement using an external PT-100 temperature sensor and transforming the measured quantity into a unified analogue current signal in the range of 4÷20 mA.
The AT-3I transducer is designed for temperature measurement using an external PT-100 temperature sensor and transforming the measured quantity into a unified analogue current signal in the range of 4÷20 mA.

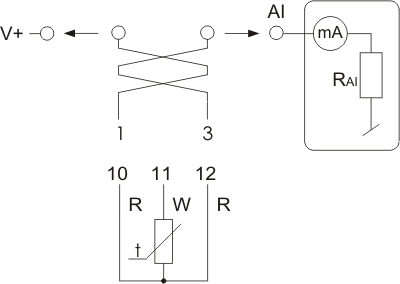

The module works with resistance-type temperature sensor PT-100 (or similar).
A dedicated temperature probe of F&F production: RT -56 probe.
The module's signal output is protected by an anti-interference filter that eliminates network disturbances that affect the accuracy of the transmitted signal. This allows the use of signal lines up to 300 m long.
- Power supply voltage
- 9÷30 V DC
- Measurement range
- -100°С÷100°С
- Temperature probe
- RT56 (PT-100)
- Maximum measuring error
- ±1,0°С
- Output signal
- 4÷20 mA
- Processing error
- ±0,5%
- The length of the signal output wire
- 300 m
- Terminal
- pluggable terminal blocks 2,5 mm²
- Tightening torque
- 0,4 Nm
- Power consumption
- 0,8 W
- Working temperature
- -20÷50°C
- Dimensions
- 1 module (18 mm)
- Assembly
- on rail 35 mm
- Ingress Protection Marking
- IP20
