Voltage measurement transducer MB-1U-1
search
  • Voltage measurement transducer MB-1U-1
  • Voltage measurement transducer MB-1U-1
  • Voltage measurement transducer MB-1U-1

Voltage measurement transducer MB-1U-1

MAX-MB-1U-1, 5908312595328
With Modbus RTU.

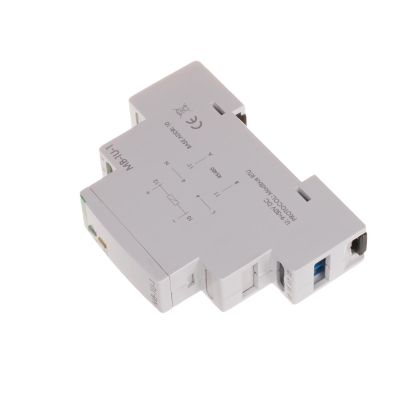

The transmitter MB-1U-1 is designed to measure the voltage and exchange data using the RS-485 port in accordance to MODBUS RTU protocol.

Functioning
The module measures the value of input voltage (AC or DC voltage circuit). Reading the value of the input voltage and setting all parameters of communication are realised  by the user via RS-485, using MODBUS RTU communication protocol.
Switching power supply voltage is indicated by a green LED U. The correct exchange of data between the module and the second device is indicated by a yellow LED Tx.
The transmitter measures the RMS voltage TrueRMS, which ensures high measurement accuracy even with distorted waveforms.

Reset communication settings
Under cover is available code switch.
Details of resetting available in the instructions below.


MAX-MB-1U-1
Power supply voltage
9÷30 V DC
WE-WY breakthrough voltage
3 kV
ports
RS-485
Communication protocol
MODBUS RTU
The type of work
SLAVE
Baudrate
1200÷115200 bit/s
Data bits
8
Stop bits
02-sty
Bits of parity
EVEN / ODD / NONE
Address
1÷247
Maximum measuring error
0,50%
Processing error
±0,5%
Measurement range TrueRMS - alternating AC voltage
0÷285 V
Measurement range TrueRMS - DC voltage
0÷400 V
Power consumption (max)
50 mA
Precision of reading the register
1 V
Sampling frequency
10 Hz
Relative air humidity (for 30
85%
Terminal
pluggable terminal blocks 2,5 mm²
Tightening torque
0,4 Nm
Dimensions
1 module (18 mm)
Assembly
on rail 35 mm
Ingress Protection Marking
IP20
Description of inputs/outputs





Module in RS-485 network




Network address setup





Reset communication settings

Parameters of MODBUS RTU protocol
