Light dependent relay AWZ 230 V
search
  • Light dependent relay AWZ 230 V
  • Light dependent relay AWZ 230 V
  • Light dependent relay AWZ 230 V

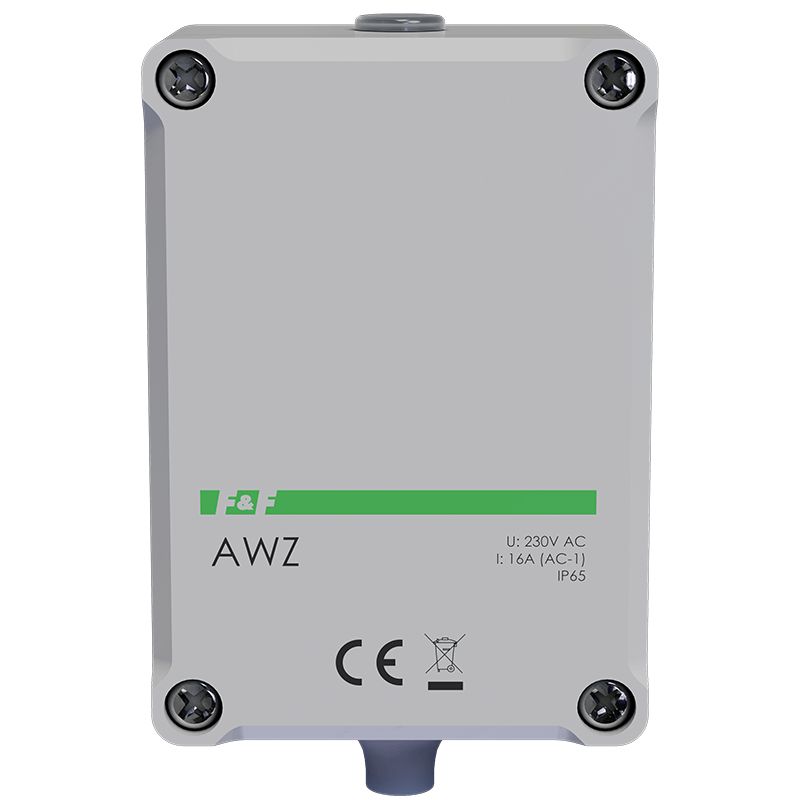

Light dependent relay AWZ 230 V

AWZ, 5908312591047

Light dependent relay serves to switch-ON the lighting of streets, squares, shop windows, neon lamps etc, at twilight and to
switch-OFF afore mentioned lighting at dawn.
Hermetic. With internal connection. 16A.

Enclosure:
Relay in box with special sealing flange, fastened to the substrate by two screws, closed by a cover with silicongasket and tightened by 4 screws.

Functioning:
The relay should be situated at place with permanent access to day light, which, due to its changes of intensity, will cause switching ON and OFF the lighting.The exact time of switching the lighting can be set by potentiometer by the user . Turn in the direction of “half moon“ will delay switching-ON, turning in the direction of “sun " will advance switching-ON. The relay is equipped with a delay system, which delays switching ON and OFF the lighting, thus eliminating the influence of accidental disturbances like thunder lightings on the relay functioning.




Attention!
In the case of control measures light dependent relay tightly cover the entire appliance, such as a cardboard box or a dark, thick cloth. Cover only the "eye" the probe, such as the finger is not enough, because the intensity of sunlight is very strong and is passes to f by a plastic cover and the human body.

Power of receivers:







AWZ
Power supply voltage
230 V AC
Power supply tolerance
-10 ÷ 10 %
Maximum AC-1 load current
16 A
The executive element
relay
Contact configuration
1 × NO
Separation of the contact
NO
Operating threshold - adjustable
2 ÷ 1000 Lx
Operating threshold - set
ok. 7 Lx
Hysteresis
ok. 15 Lx
Delay of switching on
ok. 10 s
Delay of tripping operation
ok. 20 s
Photosensitive element
built-in
Terminal
pluggable terminal blocks 2,5 mm²
Tightening torque
0,4 Nm
Power consumption
0,8 W
Working temperature
-25 ÷ 50 °C
Dimensions
60×85×35 mm
Assembly
on wall
Ingress Protection Marking
IP65 - hermetic
