Light dependent relay AZH-S PLUS 12 V
With hermetic probe.
Light dependent relay servers to switch-ON the lighting of streets, squares, shop windows, neon lamps etc, at twilinight and to switch-OFF afore mentioned lighting at down.
Functioning
The probe of relay should be situated at place with permanent access to day light, which, due to its changes of intensity, will cause switching ON and OFF the lighting. The exact time of switching the lighting can be set by potentiometer by the user. Turn in the direction of "half moon" will delay switching-ON, turning in the direction of "sun" will advance switching-ON. The relay is equipped with a delay system, which delays switching ON and OFF the lighting, thus eliminating the influence of accidental disturbances like thunder lightings on the relay functioning.
In the case of check the power to act the relay, all relay should be securely covered, e.g. by carton or dark mine cloth. Covered just probe „eye”, e.g. by finger is insufficient because intensity of day light is very intense and penetrate to fotoresistor by the plastic box and human body.

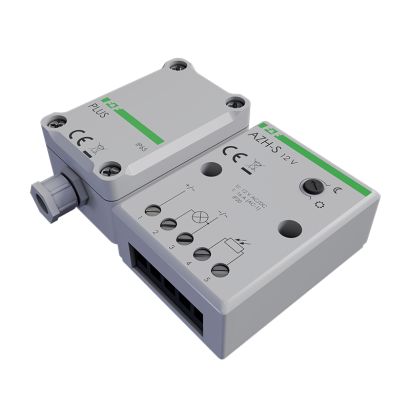

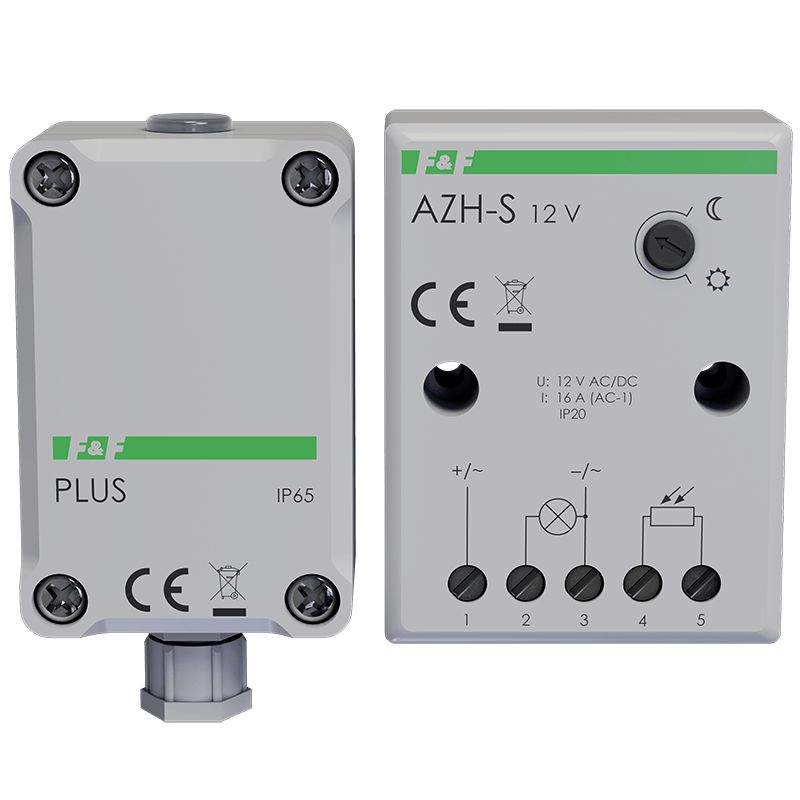

External, hermetic probe PLUS
The photosensitive sensor in a special, small plastic box. Connected with round cable, max. ø7 (such as 2×0.5 mm²), through the PG7 cable gland.
Box with a special sealing flange, fixed to the base by means of 2 screws, closed with a cover with silicone gasket using 4 screws.
- Power supply voltage
- 11÷14 V AC/DC
- Power supply tolerance
- -10 ÷ 10 %
- Maximum AC-1 load current
- 16 A
- The executive element
- relay
- Contact configuration
- 1 × NO
- Separation of the contact
- NO
- Operating threshold - adjustable
- 2 ÷ 1000 Lx
- Operating threshold - set
- ok. 7 Lx
- Hysteresis
- ok. 15 Lx
- Delay of switching on
- ok. 10 s
- Delay of tripping operation
- ok. 20 s
- The degree of probe protection
- IP65
- Photosensitive element
- external probe PLUS
- Terminal
- pluggable terminal blocks 4,0 mm²
- Tightening torque
- 0,5 Nm
- Power consumption
- 0,56 W
- Working temperature
- -25 ÷ 50 °C
- Dimensions
- 51×67×26 mm (± 1 mm)
- Assembly
- on wall
- Ingress Protection Marking
- IP20
