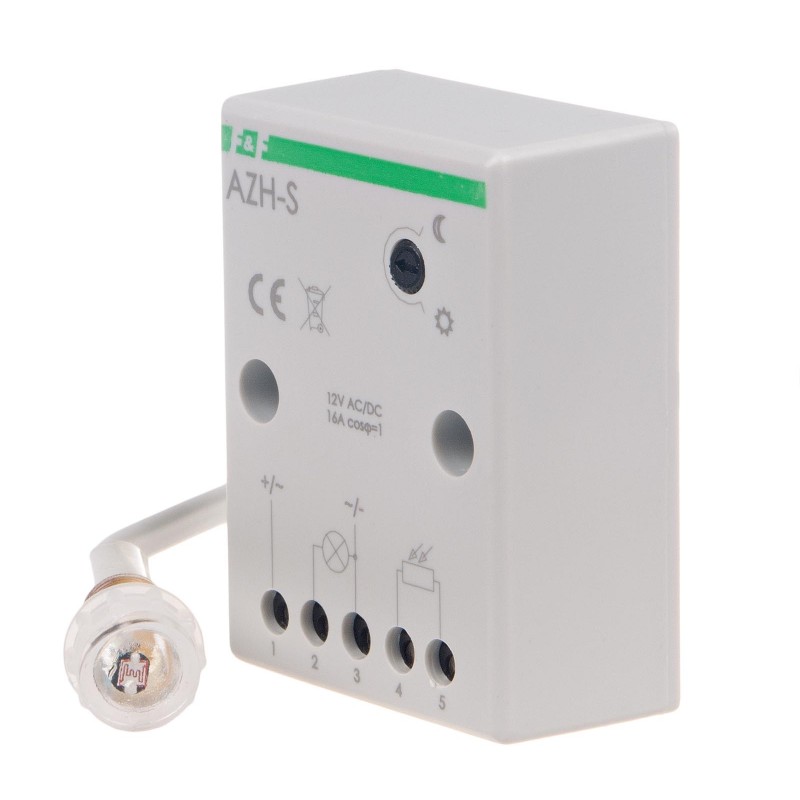

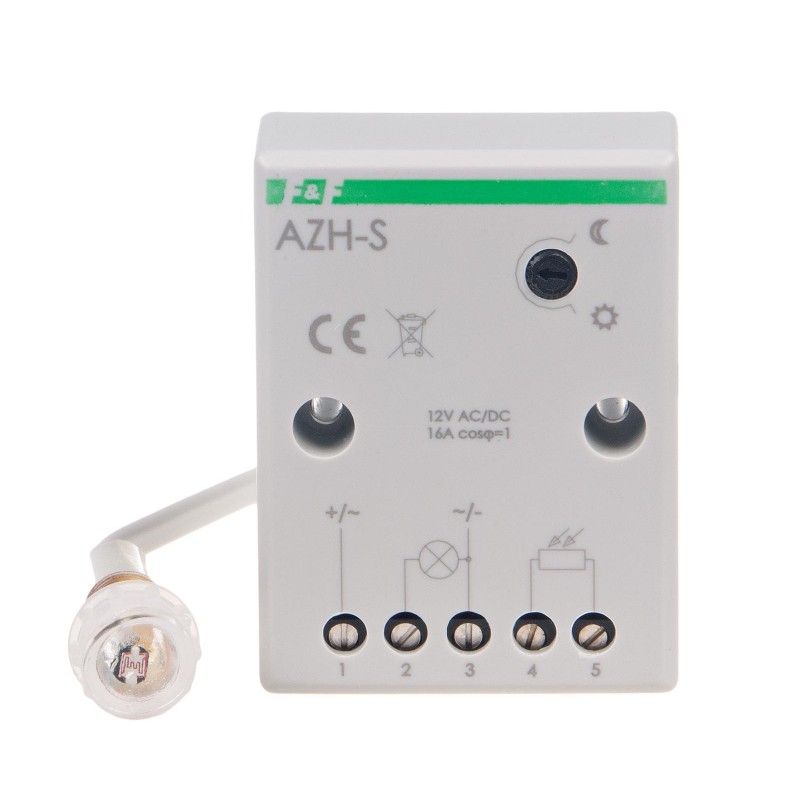

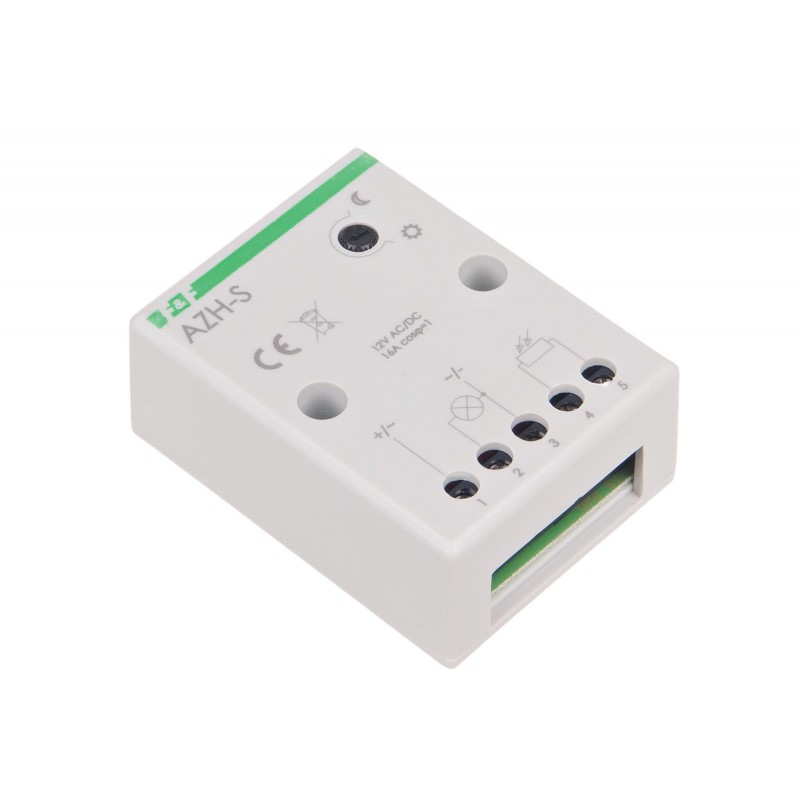

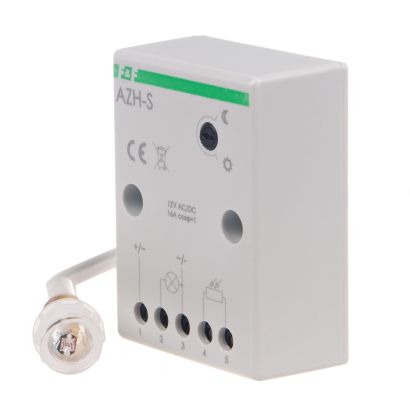

Light dependent relay AZH-S 12 V

AZH-S-12V, 5908312590156

Power supply: 11÷14 V AC/DC
Maximum load: 16 A
Mounting: surface mounted

Ø10 mm external probe included.

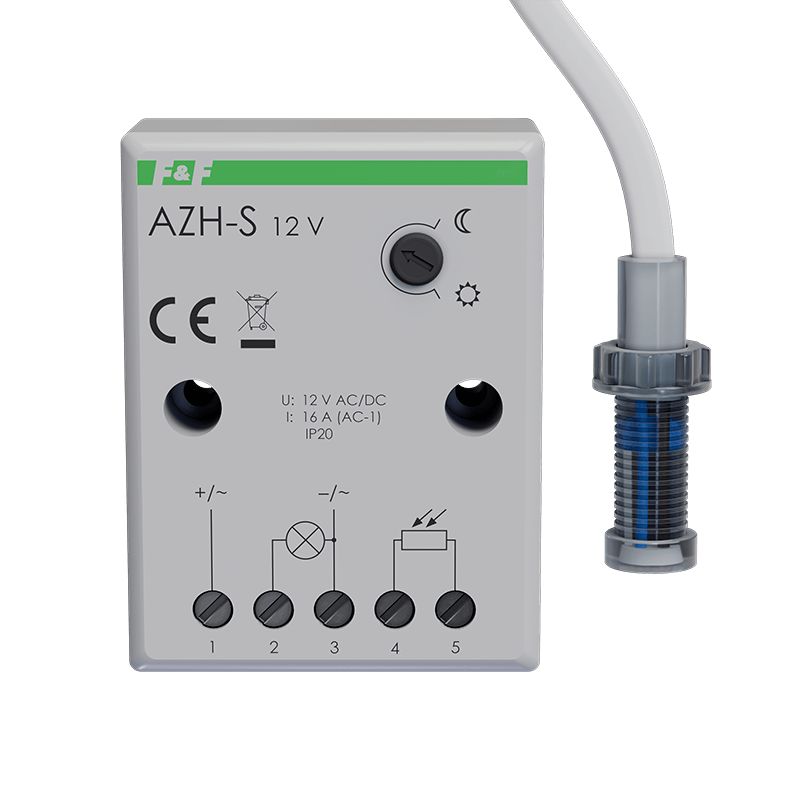

Twilight automatic device is used to control light sources or other energy receivers depending on the intensity of lighting - it turns off at dawn and turns on at dusk.

Action

The external probe of the AZH-S twilight automatic device should be placed in a place with constant access to natural daylight, which, with changes in its intensity, will cause the lighting to switch on and off. The time of switching on the lighting can be set by the user with a potentiometer. Turning towards the "moon" - will switch on later, turning towards the "sun" - will switch on earlier. Twilight automatic AZH-S has a system delaying the switching on and off of lighting, thus eliminating the impact of interference (e.g. lightning) on the operation of the automatic device.

Automat zmierzchowy AZH-S 12 V

Power table

Automat zmierzchowy AZH-S 12 V

Indicative values of permissible load - more


ATTENTION!
There is a possibility of special production of twilight automats for other voltages than those specified in the technical data table, such as 12 V, 24 V, 48 V and 110 V AC/DC and others.

AZH-S-12V
Power supply voltage
11÷14 V AC/DC
Maximum AC-1 load current
16 A
The executive element
relay
Contact configuration
1 × NO
Separation of the contact
NO
Operating threshold - adjustable
2 ÷ 1000 Lx
Operating threshold - set
ok. 7 Lx
Hysteresis
ok. 15 Lx
Delay of switching on
ok. 10 s
Delay of tripping operation
ok. 20 s
The degree of probe protection
IP65
Photosensitive element
external probe Ø 10 mm
Terminal
screw terminals
Maximum wire diameter [wire]
4
Maximum cable diameter [wire]
2,5 mm
Tightening torque
0,5 Nm
Power consumption
0,56 W
Working temperature
-25 ÷ 50 °C
Dimensions
51×67×26 mm (± 1 mm)
Assembly
on wall
Ingress Protection Marking
IP20
