Modular contactor ST40-40-M

ST40-40-M, 5902431674001
Modular contactor with manual control
Rated operating current 40 A.
Rated operating voltage 250 V AC.


Electromagnetic contactors in modular enclosures for direct mounting on TH-35 mm rail.

An additional manipulator on the front of the device allows you to manually control the contactor contacts (regardless of the state of the coil) – circuits can be manually switched on or off, for example during installation/maintenance work.

Functioning

Operation of the contactor depends on the setting of the operating mode switch:

"I" (upper position)
If the contactor coil is not powered, the contractor contacts are closed. After powering the contactor, the switch automatically switches to the "Auto" position and from that moment

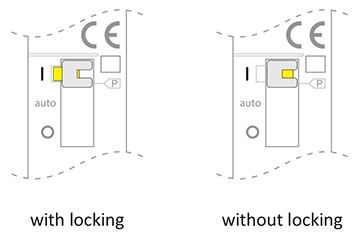

on operates in automatic mode. To lock the contacts in the switched-on position regardless of the power supply of the contactor, move the yellow locking lever to the left while the operating mode is set to the "I" position.

ST25-20-M _a_en.jpg

"Auto" (centre position)
Applying power activates the contactor and closes the contacts. After the power supply is disconnected, the contactor switches off and the contacts opens.



"O" (lower position)
The contactor contacts remain open regardless of the power supply voltage state.





ST40-40-M
Power supply voltage
main circuit 250 V AC
Coil supply voltage
230÷240 V AC
Load capacity of main contacts
AC-7a: 40 A, AC-7b: 18 A
Contact configuration
4×NO
Main track current
40 A
Weight
0,14 kg
Power consumption
At the moment of switching on - 9,2 VA, During operation - 2,7 VA (1,2 W)
Working temperature
Operation: -25÷55°C, Storage: -40÷80°C
Dimensions
18×85×65 mm
Assembly
on rail 35 mm
Ingress Protection Marking
IP20
Stycznik modułowy - schemat podłączenia

type contacts current AC1 supply voltage
 power mod weight screws
ST25-20 2NO 25A 230V AC 2,2W 1 106g 4mm²
ST25-20/24 2NO 25A 24V AC 2,2W 1 106g 4mm²
ST25-11 1NO+1NC  25A 230V AC 2,2W 1 106g 4mm²
ST25-30 3NO 25A 230V AC 4,0W 2 168g 4mm²
ST25-31 3NO+1NC  25A 230V AC 4,0W 2 168g 4mm²
ST25-31/24 3NO+1NC  25A 24V AC  4,0W 2 168g 4mm²
ST25-40 4NO 25A 230V AC 4,0W 2 168g 4mm²
ST25-40/24 4NO 25A 24V AC  4,0W 2 168g 4mm²
ST25-04  4NC 25A 230V AC 4,0W 2 168g 4mm²
ST25-22  2NO+2NC  25A 230V AC 4,0W 2 168g 4mm²
ST40-40  4NO 40A 230V AC 6,4W 3 241g 10mm²
ST40-40/24  4NO 40A  24V AC  6,4W 3 241g 10mm²
ST40-31  3NO+1NC  40A  230V AC  6,4W 3 241g 10mm²
ST63-40 4NO  63A 230V AC 6,4W 3 241g  10mm²
ST63-40/24 4NO  63A  24V AC  6,4W 3 241g  10mm²
ST63-31 3NO+1NC  63A 230V AC 6,4W 3 241g  10mm²




16 other products in the same category
