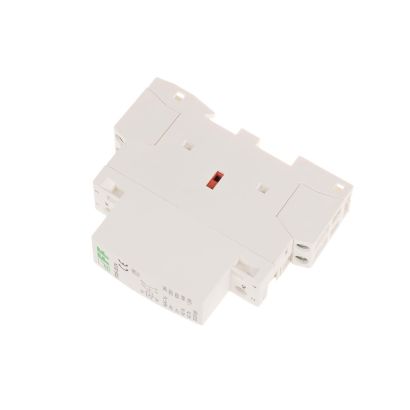

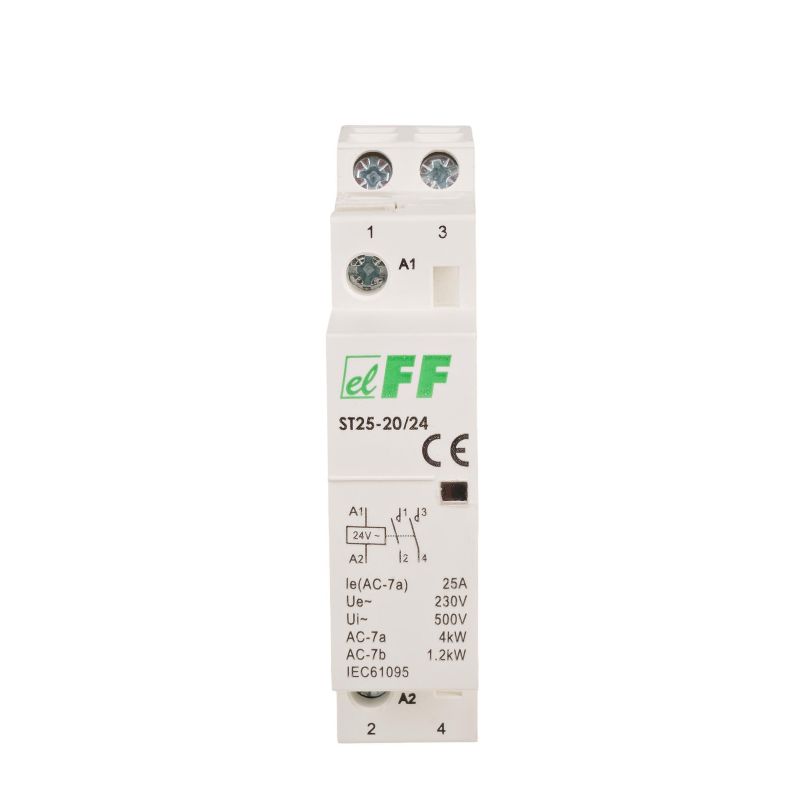

Modular contactor ST25-20 24 V
ST25-20-24V, 5908312594000
Current 25 A. Voltage 24 V AC. Power AC1 4 kW. Power AC3 1.3 kW.
Electromagnetic contactors in modular case for direct mounting on rail 35mm.
Electromagnetic contactors in modular case for direct mounting on rail 35mm.
Functioning
Connect the voltage on the contactor’s coil will switch the contact. Contactor’s status is indicated by blinking red marker in the box. After a loss of power the contacts return to their original position.
ST25-20-24V
- Coil supply voltage
- 24 V AC
- Contact configuration
- 2 × NO
- Main track current
- 25 A
- Switching power cat. AC1 (230V)
- 4 kW
- Switching power cat. AC3 (230V)
- 1,3 kW
- Module
- 1
- Standard number
- IEC 61095
- Electrical connection life
- 1x10⁵
- Mechanical connecting durability
- 1x10⁶
- Weight
- 106 g
- Screw terminals
- 4 mm²
- Isolation voltage
- 4 kV
- Power consumption
- 1,2 W
- Working temperature
- -25 ÷ 50 °C
- Assembly
- on rail 35 mm
- Ingress Protection Marking
- IP20
type | contacts | current AC1 | supply voltage |
power | mod | weight | screws |
ST25-20 | 2NO | 25A | 230V AC | 2,2W | 1 | 106g | 4mm² |
ST25-20/24 | 2NO | 25A | 24V AC | 2,2W | 1 | 106g | 4mm² |
ST25-11 | 1NO+1NC | 25A | 230V AC | 2,2W | 1 | 106g | 4mm² |
ST25-30 | 3NO | 25A | 230V AC | 4,0W | 2 | 168g | 4mm² |
ST25-31 | 3NO+1NC | 25A | 230V AC | 4,0W | 2 | 168g | 4mm² |
ST25-31/24 | 3NO+1NC | 25A | 24V AC | 4,0W | 2 | 168g | 4mm² |
ST25-40 | 4NO | 25A | 230V AC | 4,0W | 2 | 168g | 4mm² |
ST25-40/24 | 4NO | 25A | 24V AC | 4,0W | 2 | 168g | 4mm² |
ST25-04 | 4NC | 25A | 230V AC | 4,0W | 2 | 168g | 4mm² |
ST25-22 | 2NO+2NC | 25A | 230V AC | 4,0W | 2 | 168g | 4mm² |
ST40-40 | 4NO | 40A | 230V AC | 6,4W | 3 | 241g | 10mm² |
ST40-40/24 | 4NO | 40A | 24V AC | 6,4W | 3 | 241g | 10mm² |
ST40-31 | 3NO+1NC | 40A | 230V AC | 6,4W | 3 | 241g | 10mm² |
ST63-40 | 4NO | 63A | 230V AC | 6,4W | 3 | 241g | 10mm² |
ST63-40/24 | 4NO | 63A | 24V AC | 6,4W | 3 | 241g | 10mm² |
ST63-31 | 3NO+1NC | 63A | 230V AC | 6,4W | 3 | 241g | 10mm² |
