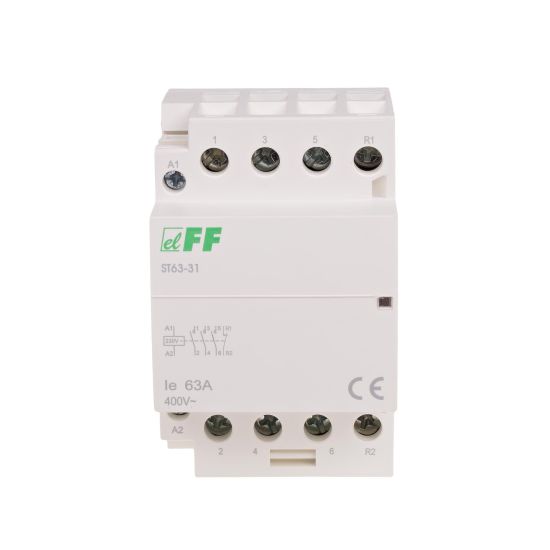

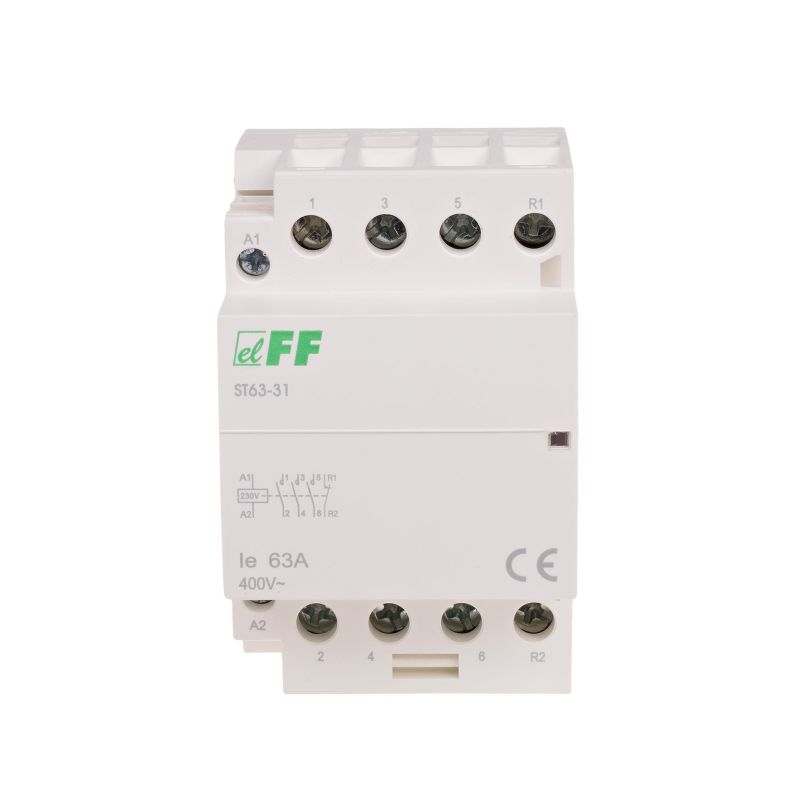

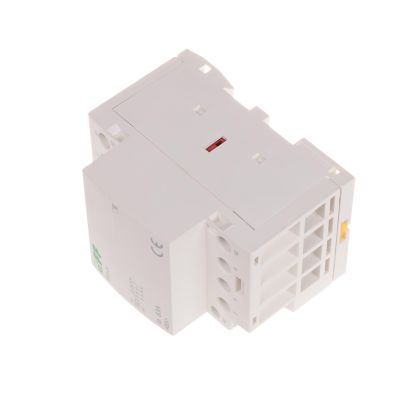

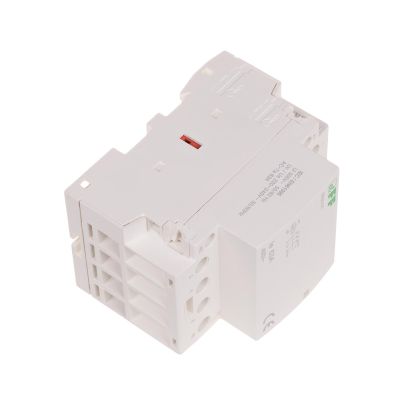

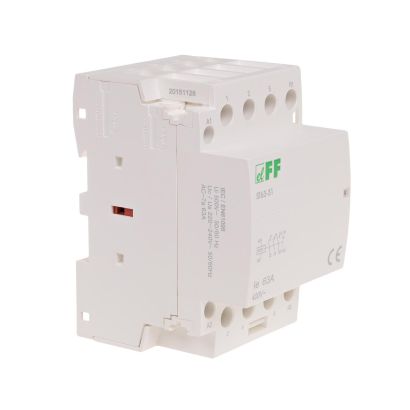

Modular contactor ST63-31

ST63-31, 5908312594215
Current 63 A. Voltage 230 V AC. Power AC1 24 kW. Power AC3 8.5 kW.
Electromagnetic contactors in modular case for direct mounting on rail 35mm.

Functioning
Connect the voltage on the contactor’s coil will switch the contact. Contactor’s status is indicated by blinking red marker in the box. After a loss of power the contacts return to their original position.








ST63-31
Coil supply voltage
230 V AC
Contact configuration
3×NO+1×NC
Main track current
63 A
Switching power cat. AC1 (230V)
24 kW
Switching power cat. AC3 (230V)
8,5 kW
Module
3
Standard number
IEC 61095
Electrical connection life
1x10⁵
Mechanical connecting durability
1x10⁶
Weight
241 g
Screw terminals
16 mm²
Isolation voltage
4 kV
Power consumption
6,4 W
Working temperature
-25 ÷ 50 °C
Assembly
on rail 35 mm
Ingress Protection Marking
IP20

type contacts current AC1 supply voltage
 power mod weight screws
ST25-20 2NO 25A 230V AC 2,2W 1 106g 4mm²
ST25-20/24 2NO 25A 24V AC 2,2W 1 106g 4mm²
ST25-11 1NO+1NC  25A 230V AC 2,2W 1 106g 4mm²
ST25-30 3NO 25A 230V AC 4,0W 2 168g 4mm²
ST25-31 3NO+1NC  25A 230V AC 4,0W 2 168g 4mm²
ST25-31/24 3NO+1NC  25A 24V AC  4,0W 2 168g 4mm²
ST25-40 4NO 25A 230V AC 4,0W 2 168g 4mm²
ST25-40/24 4NO 25A 24V AC  4,0W 2 168g 4mm²
ST25-04  4NC 25A 230V AC 4,0W 2 168g 4mm²
ST25-22  2NO+2NC  25A 230V AC 4,0W 2 168g 4mm²
ST40-40  4NO 40A 230V AC 6,4W 3 241g 10mm²
ST40-40/24  4NO 40A  24V AC  6,4W 3 241g 10mm²
ST40-31  3NO+1NC  40A  230V AC  6,4W 3 241g 10mm²
ST63-40 4NO  63A 230V AC 6,4W 3 241g  10mm²
ST63-40/24 4NO  63A  24V AC  6,4W 3 241g  10mm²
ST63-31 3NO+1NC  63A 230V AC 6,4W 3 241g  10mm²
