Laser distance sensor DRL-12-79, black beech color

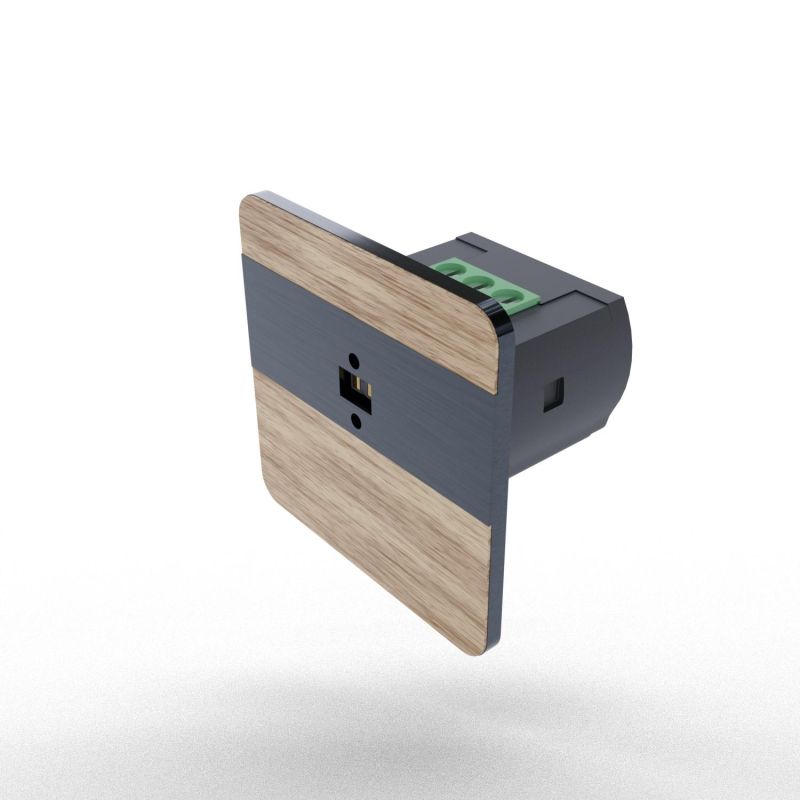

Head lamp of the laser sensor DRL-12 in black beech color

Action

The principle of operation is to emit a light beam and measure the delay of returning light as a result of reflection from an obstacle. On this basis, it is possible to precisely determine the distance to the obstacle, which is then compared with the set detection range. If something appears at a distance of less than the set value, the light will be switched on. This solution is perfect for switching on lighting circuits for example on open stairs, where it is important that the sensor detects presence only on the stairs and ignores everything that happens outside.

Functions

• laser distance sensor of the ToF (Time of Flight) type;
• the detection range can be smoothly adjusted in the range of 0.1 to 2 m;
• a brightness sensor that prevents the light from being switched on when the brightness level is high;
• adjustable time of keeping the light on;
• ability to directly control the 12/24 V lighting circuits (load capacity up to 4 A, which can be increased by connecting LEDAMP amplifiers);
• soft start and soft shutdown feature available for controlled lighting circuits*;
• ability to trigger AS-225 cascade controllers;

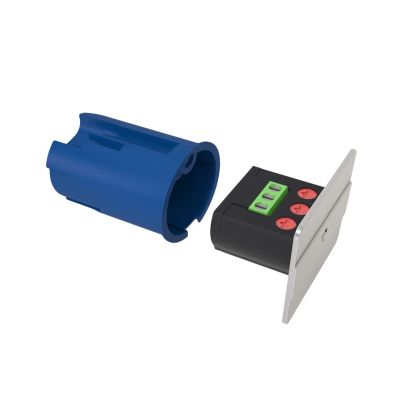

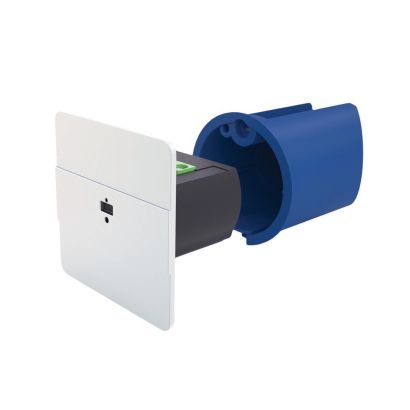

• compact size, can be mounted in a ø35 mm box supplied with the sensor;
• LED indicating the operating status of the sensor;
• thermal protection against exceeding the acceptable temperature inside the housing.
