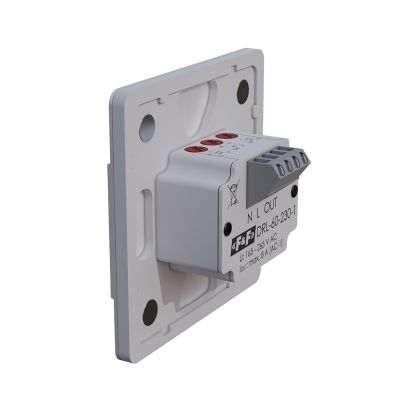

Laser distance sensor DRL-60-230 - white

Action

As the control element here is a separated relay contact, this sensor can also be used for integration into any home automation system. The principle of operation is to emit a light beam and measure the delay of returning light as a result of reflection from an obstacle. On this basis, it is possible to precisely determine the distance to the obstacle, which is then compared with the set detection range. The condition for switching on the light is the presence of an obstacle at a distance smaller than the set detection range and a brightness level below the value set on the sensor. This solution is perfect for switching on lighting circuits for example on open stairs, where it is important that the sensor detects presence only on the stairs and ignores everything that happens outside.

Functions

• » Laser distance sensor of the ToF (Time of Flight) type;
• » The detection range can be smoothly adjusted in the range of 0.1 to 2 m;
• » A brightness sensor that prevents the light from being switched on when the brightness level is high;
• » Adjustable time of keeping the light on;
• » Separated relay output for direct control of 230 V circuits, or integration into any home automation system;
• » Possibility of direct control of electrical circuits with a load of up to 8 A (AC-1);
• » Compact size, can be mounted in a ø60 mm box;
• » LED indicating the operating status of the sensor;
• » Thermal protection against exceeding the acceptable temperature inside the housing.
