Infrared motion sensor DR-05 W white

View larger

Display all pictures

Product
Data sheet
Scheme
Tips
Download

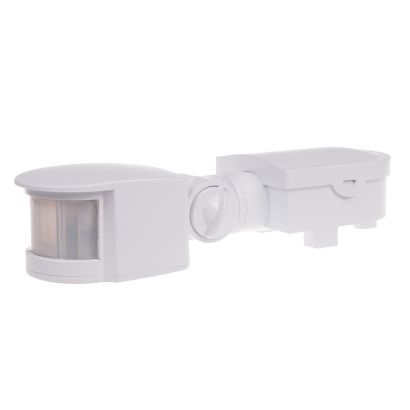

Infrared motion sensor DR-05 W white

Reference: DR-05W, EAN13: 5908312591887

Product description

Motion sensor is used for automatic switch on lighting in the event of a person or other object in such areas as hallways, courtyards, approach and access roads, garages, etc.
Surface mounting. Protection level IP 44.

Functioning
The sensor detects infra-red radiation source. It's analysing parameters as the size of the object, the amount of heat emitted, and the speed of movement between the various sectors of detection. Detector head is moving in two dimensions, which allows for precise setting of the matched field detection to the individual requirements of the user. Movement detection in the box will automatically attach to the lighting time set by the user. After that time, the lighting is switched off automatically. Motion sensor is equipped with an automatic control include preventing crepuscular lighting during the day. The state detector and a willingness to attach lighting is activated only after dusk. The timing of activation of the sensor can be adjusted by the user potencjometrem.The motion sensor can work indoors and outdoors in places where it is not exposed to direct rain or snow, and there is no possibility to flooding by water or other liquid sensor's cover casing and its electrical points connections.

Power supply voltage	195÷265 V AC
Maximum AC-1 load current	5 A *
Turn-off time	10 s ± 3 s ÷ 10 min ± 2 min.
Motion detection	0,6÷1,5 m/s
Horizontal detection field	0°÷180°
Vertical detection field	0°÷90°
Maximum adjustable detection radius (h: 2.5 m, Temp. 24	5÷12 m
Sensor mounting height	1,8÷2,5 m
Head rotation range - horizontally / vertically	180°/90°
Type of detection	infrared
Terminal	screw clamps 1.5 mm2
Tightening torque	0,3 Nm
Power consumption	0,5 W
Working temperature	-20÷40°C
Dimensions	"horizontally mounted head: 70 x 205 x 45 mm;
Assembly	on wall
Ingress Protection Marking	IP44

* Load of a resistive nature [AC-1]. For loads of a different nature (e.g. LED lighting), the maximum load current may be significantly lower.
More information: www.fif.com.pl/en/content/24-wskazowki

DR-05 W white manual (724.36k)

DR DRL declaration CE 2024 (180.2k)
