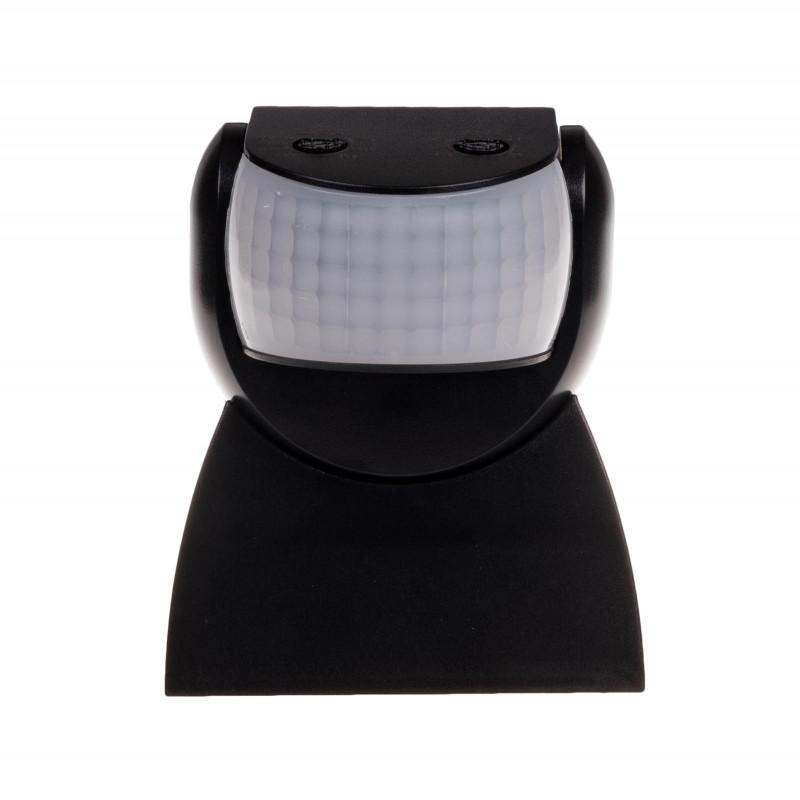

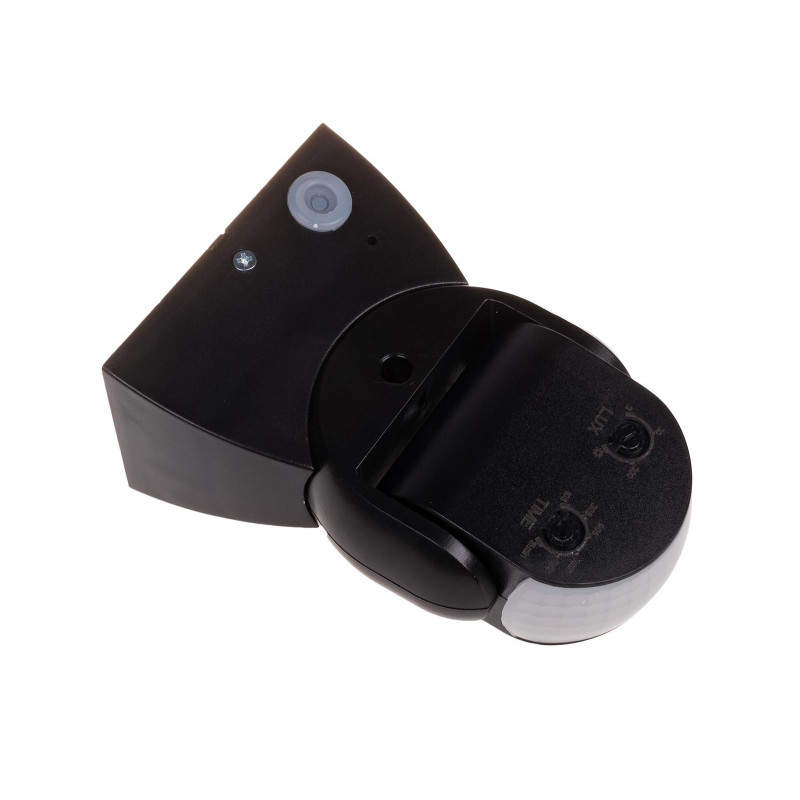

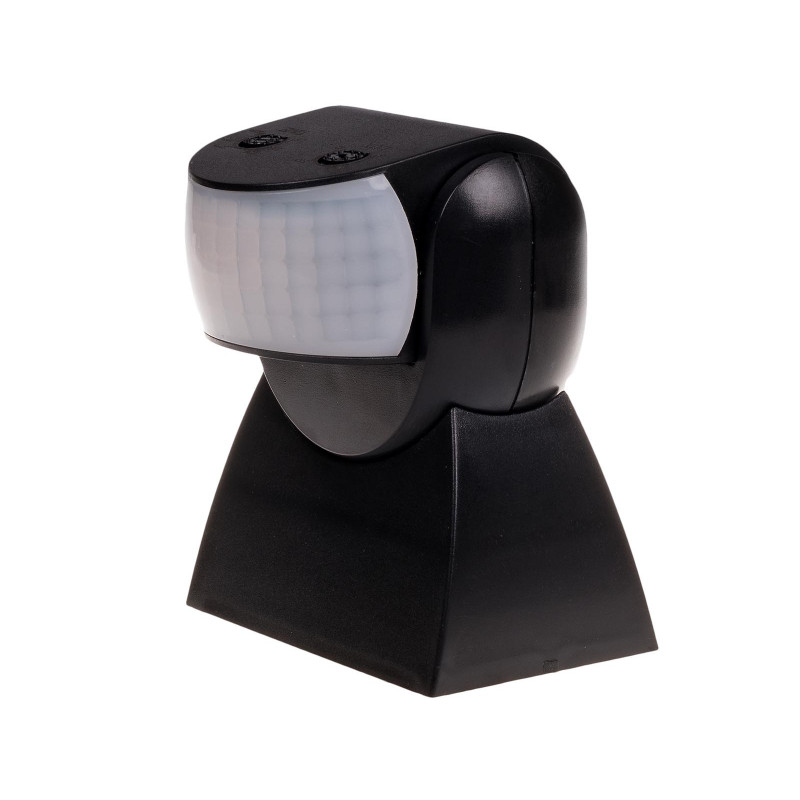

Infrared motion sensor DR-04 B black
search
  • Infrared motion sensor DR-04 B black
  • Infrared motion sensor DR-04 B black
  • Infrared motion sensor DR-04 B black

Infrared motion sensor DR-04 B black

DR-04B, 5908312598107
The motion sensor is designed for automatic, scheduled lighting activation if a person or other object appears in places such as corridors, courtyards, approaches and driveways, garages, etc.
Ceiling mounting. Protection level IP65.

Functioning
The sensor detects infrared radiation. It analyzes parameters such as: size of the object, the amount of emitted heat and the speed of movement between sectors of detection. Motion in the detection field will automatically switch on the lighting. From this moment the light will stay on, as long as the sensor detects continuous movement. Only the lack of movement in the detection area triggers the lighting support time. If the motion reappears in the detection field and disappears during the support time, it will trigger the sustaining time from the beginning. Nature of operation allows for using the DR-04 as a presence sensor. The motion sensor is equipped with a twilight sensor that prevents activation of the controlled lighting during the day. Detection status and readiness for switching the lighting are activated only after sunset. The activation time of the sensor can be adjusted by the user with potentiometer. Additionally, you can adjust the time period of the receiver switching in the range of 10 s÷15 min. Temperature changes can affect motion detection.





DR-04B
Power supply voltage
195÷265 V AC
Maximum AC-1 load current
5 A *
Turn-off time
10 s±3 s ÷ 15 min. (±2 min.)
Twilight activation threshold
3÷2000 Lx
Motion detection
0,6÷1,5 m/s
Horizontal detection field
0°÷180°
Vertical detection field
0°÷45°
Maximum adjustable detection radius (h: 2.5 m, Temp. 24
12 m
Sensor mounting height
1,8÷2,5 m
Head rotation range - horizontally / vertically
60°/180°
Type of detection
infrared
Terminal
pluggable terminal blocks 1,5 mm²
Power consumption
0,5 W
Working temperature
-20÷40°C
Dimensions
head vertically spread: S80 × W52 × G120 mm; horizontal folded head: S80 × W52 × G95 mm
Assembly
on wall
Ingress Protection Marking
IP65 - hermetic
* Load of a resistive nature [AC-1]. For loads of a different nature (e.g. LED lighting), the maximum load current may be significantly lower.
More information: www.fif.com.pl/en/content/24-wskazowki





Area of detection




Dimensions
