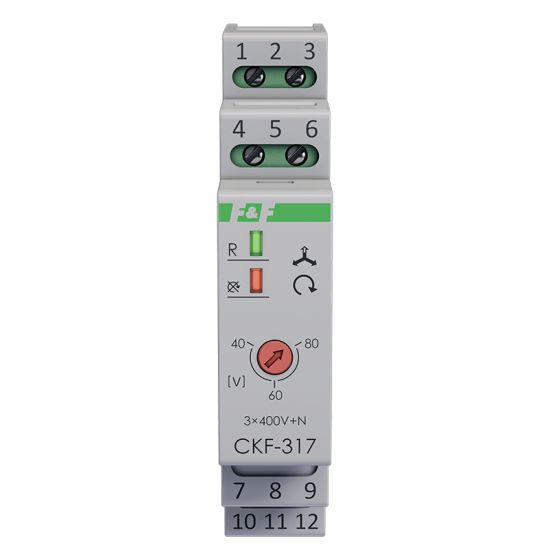

Three-phase asymmetry and sequence monitors CKF-317
With adjustable actuation threshhold at voltage asymmetry.
Three phase and sequence monitor is designed to protect tree phase electric motors against voltage drop in at least one phase or voltage asymmetry between phases, which could damage the motor, with additional protection of motor rotation direction in case of phase change before the monitor.
Three phase and sequence monitor is designed to protect tree phase electric motors against voltage drop in at least one phase or voltage asymmetry between phases, which could damage the motor, with additional protection of motor rotation direction in case of phase change before the monitor.
Functioning
Voltage collapse in any phase or voltage asymmetry between phases above set value causes switching-OFF the motor. The motor switching-OFF occurs after delay of 4 sec, which prevents accidental motor switching-OFF caused by instantaneous voltage drop. Switching the motor ON anew occurs automatically when the voltage increases about 5V~ above activation voltage. At occurrence of these disturbances, it is not possible to set a motor in motion. In case of change of phase sequence, before the monitor, which causes change of motor rotation direction (in relation to that primarily set) along with impossibility of switching-ON the motor. The switching-ON is possible after the return to correct phase sequence.
- Power supply voltage
- 3 × 400 V + N
- Cooperation with power generators
- NO
- Phase failure / asymmetry monitoring
- YES
- Phase sequence control
- YES
- Contactor contact monitoring
- NO
- The executive element
- relay
- Maximum load current
- 10 A
- Contact configuration
- 1 × NO/NC
- Separation of the contact
- YES
- Voltage asymmetry
- 40÷80 V
- Voltage hysteresis
- 5 V
- Switch off delay
- 4 s
- Power control
- 2 × LED
- Terminal
- pluggable terminal blocks 2,5 mm²
- Tightening torque
- 0,4 Nm
- Power consumption
- 1,6 W
- Working temperature
- -25÷40°C
- Dimensions
- 1 module (18 mm)
- Assembly
- on rail 35 mm
- Ingress Protection Marking
- IP20
- TrueRMS
- NIE
.gif)
