Three-phase asymmetry and sequence monitors CKF-BT

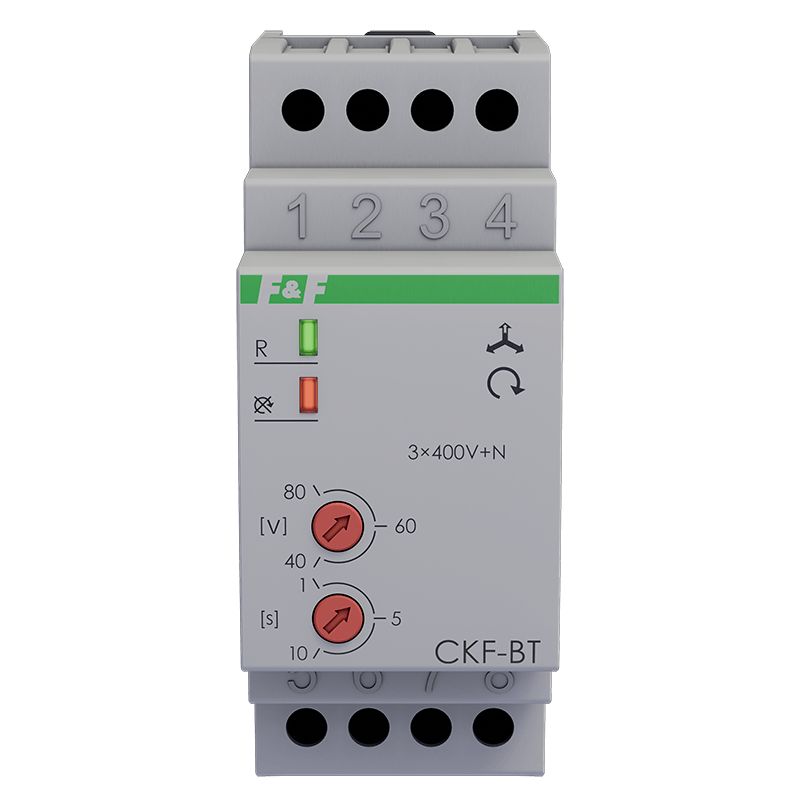

CKF-BT, 5908312592488
With adjustable actuation time 0,5÷5sec.
Three phase monitors serve to protect the three-phase electric motors supplied from three-phase mains, against phase collapse in at least one phase or against phase-to-phase voltage asymmetry, threatening to damage the motor.




Functioning
Phase collapse in at least one phase or  voltage unbalance  between phases above set value causes switching-OFF the motor. The  motor switching-OFF occurs with 4 sec delay, which prevents any accidental motor disconnecting at temporary voltage drop. The re-connection will occur automatically at voltage increase of 5V above activation voltage (i.e. of value of voltage hysteresis). At occurrence of these disturbances, it is not possible to  set a motor in motion.





CKF-BT
Power supply voltage
3 × 400 V + N
Cooperation with power generators
NO
Phase failure / asymmetry monitoring
YES
Phase sequence control
YES
Contactor contact monitoring
NO
The executive element
relay
Maximum load current
10 A
Contact configuration
1 × NO/NC
Separation of the contact
YES
Voltage asymmetry
40÷80 V
Voltage hysteresis
5 V
Switch off delay
0,5÷5 s
Power control
2 × LED
Terminal
pluggable terminal blocks 4,0 mm²
Tightening torque
0,5 Nm
Power consumption
1,6 W
Working temperature
-25÷40°C
Dimensions
2 modules (35 mm)
Assembly
on rail 35 mm
Ingress Protection Marking
IP20
TrueRMS
NIE




System which prevents automatic motor restart after power recovery
