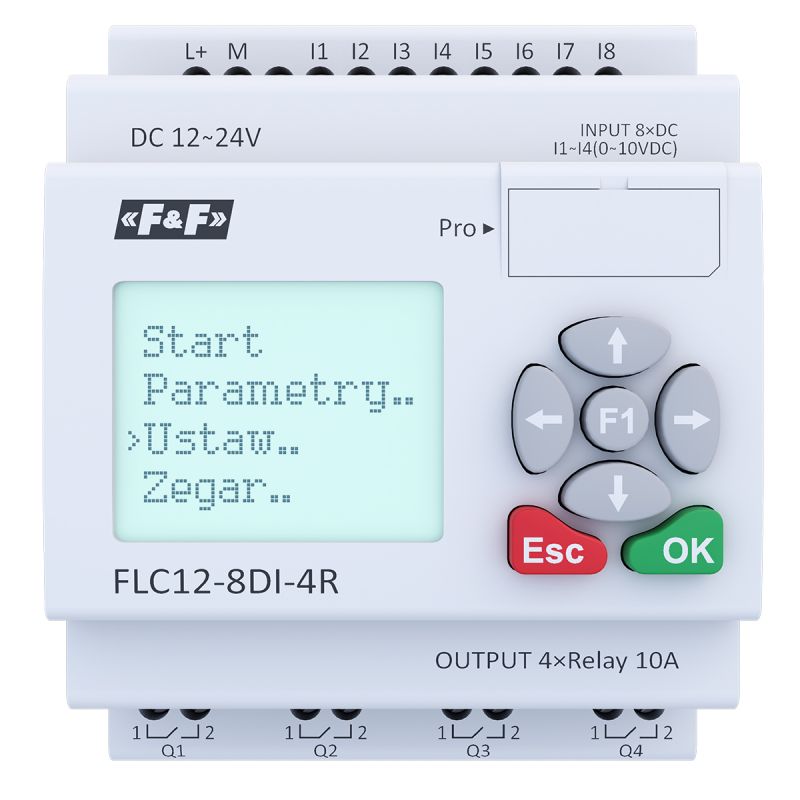

Programmable controller FLC12-8DI-4R
FLC is a universal, programmable logic controller, which can control the elements of domestic and industrial electrical installation (for example lighting control, roller blind control, watering the garden, control of simple machines).
Programmable logic controller CPU.
Programmable logic controller CPU.
With the built-in user panel it does not require combining with costly external panels, while at the same time providing a user with a preview and configuration of the control system parameters. The controller is equipped with advanced communication interfaces and allows for easy connection to professional visualization stations (using the Modbus protocol).
Software tools
Free software tool FLCLogic Soft is used for programming the FLOGIC controllers. The application allows you to write a program, test it with the simulator (without connection with the controller), load it to the controller and perform hardware tests (preview of the operation of the actual device with the possibility of recording digital and analog data).
- Type
- programmable controller
- Extension modules
- NO
- Number of function blocks
- 512
- Power supply voltage
- 12÷24 V DC
- The total number of entries
- 8 (I1÷I8)
- Number of digital inputs
- 8 (I1÷I8)
- Input voltage range
- 0÷28,8 V DC
- Number of analog inputs
- 4 (I1÷I4) (0÷10 V DC)
- Analog inputs - measuring range
- 0÷10 V DC
- Analog inputs - resolution
- 10 bit
- Number of free inputs (4Hz)
- 4
- Number of fast inputs (60 kHz)
- 4
- Outputs - number of outputs
- 2
- Outputs - output type
- relay
- Outputs - continuous current, resistive load
- 10:00 AM
- Outputs - continuous current, inductive load
- 2:00 AM
- Outputs - electrical durability, resistive load
- 10⁵ cykli
- Outputs - mechanical durability
- 10⁷ cykli
- Accuracy of the RTC clock
- ±2 s/dzień
- RTC clock support
- 20 dni
- Durability of the program
- 10 years
- Protection against data loss
- YES
- Weight
- 300 g
- Resistance to instantaneous power failure
- 5 ms
- Number of event counters (1
- 512
- Number of time counters (10 ms
- 512
- The number of digital flags
- 256
- Number of analogue registers
- 256
- Number of PI regulators
- 30
- The number of mathematical blocks
- 512
- The number of HMI screens
- 64
- Cycle time
- 0,6÷8 ms
- Processing time of a single application
- 100 ms
- Operator panel
- YES
- RS232
- YES
- HMI panel
- YES
- Terminal
- pluggable terminal blocks 1,5 mm²
- Tightening torque
- 0,4 Nm
- Power consumption
- 3,5÷4 W
- Working temperature
- -20÷55°C
- Dimensions
- 71,5 mm x 90 mm x 57,9 mm
- Assembly
- on rail 35 mm
- Ingress Protection Marking
- IP20
