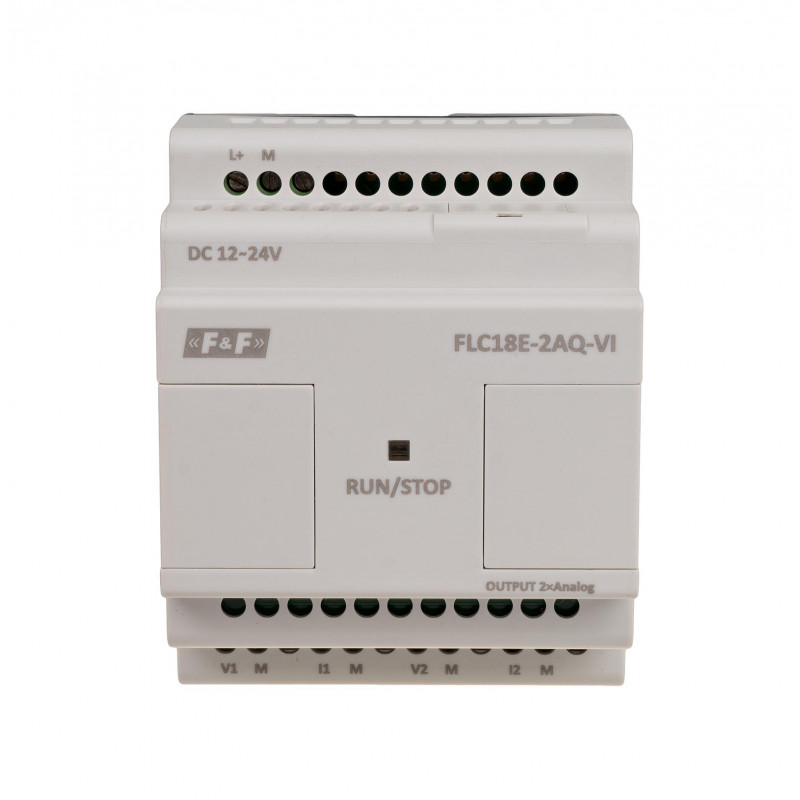

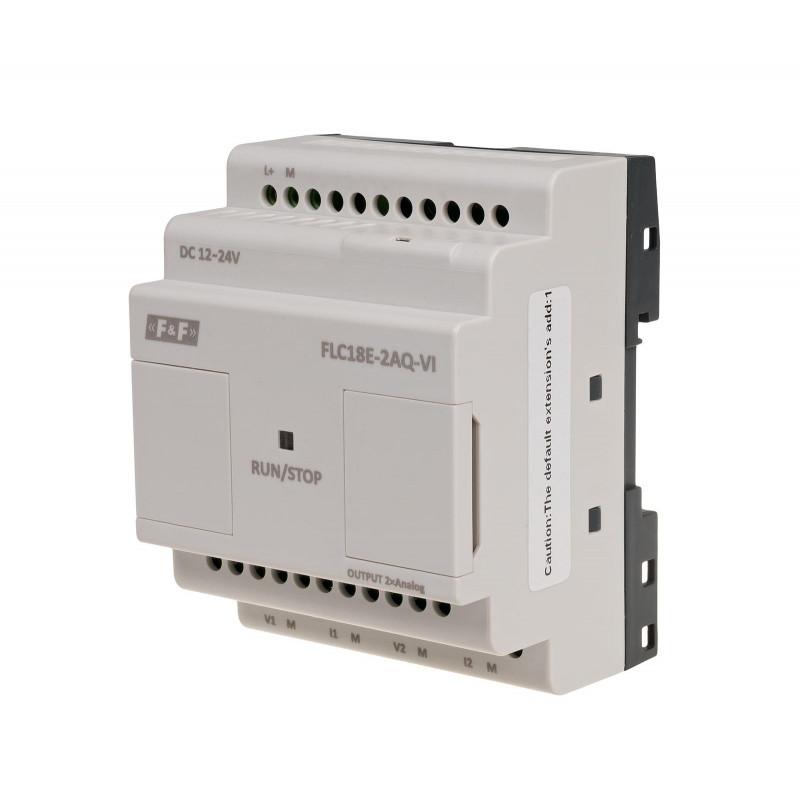

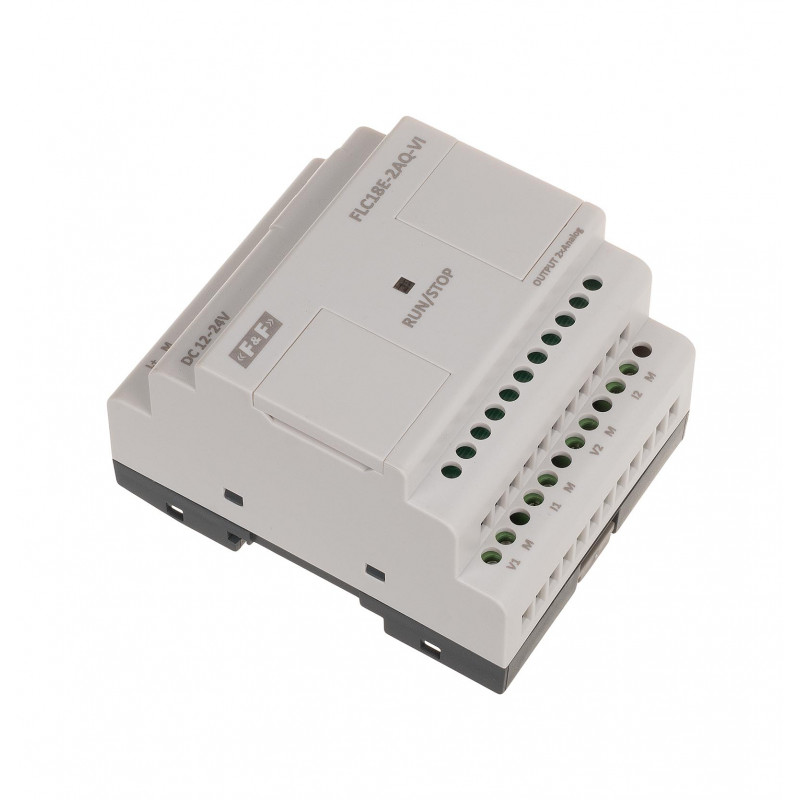

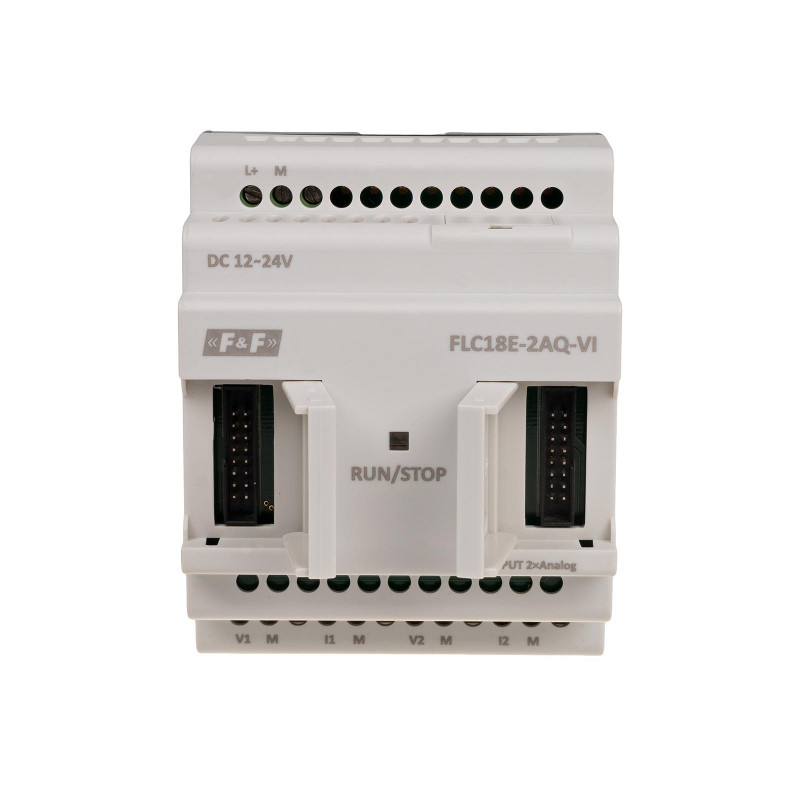

Expansion module FLC18E-2AO-VI
Programmable controller. Expansion module of analog outputs. 2 voltage + 2 current.
FLC is a universal, programmable logic controller, which can control the elements of domestic and industrial electrical installation (for example lighting control, roller blind control, watering the garden, control of simple machines).
FLC is a universal, programmable logic controller, which can control the elements of domestic and industrial electrical installation (for example lighting control, roller blind control, watering the garden, control of simple machines).
2 voltage outputs 0 ÷ 10 V DC
2 current outputs 0 ÷ 20 mA
With the built-in user panel it does not require combining with costly external panels, while at the same time providing a user with a preview and configuration of the control system parameters. The controller is equipped with advanced communication interfaces and allows for easy connection to professional visualization stations (using the Modbus protocol).
Software tools
Free software tool FLCLogic Soft is used for programming the FLOGIC controllers. The application allows you to write a program, test it with the simulator (without connection with the controller), load it to the controller and perform hardware tests (preview of the operation of the actual device with the possibility of recording digital and analog data).
- Type
- expansion module
- Power supply voltage
- 12÷24 V DC
- Outputs - number of outputs
- 2
- Analogue outputs - current
- 2
- Analogue outputs - voltage
- 2
- Range of output voltages
- 0÷10 V DC
- Range of output currents
- 0÷20 mA
- Voltage outputs - resolution
- 9 bit
- Current outputs - resolution
- 10 bit
- Terminal
- pluggable terminal blocks 1,5 mm²
- Tightening torque
- 0,4 Nm
- Power consumption
- 1,8 W
- Assembly
- on rail 35 mm
- Ingress Protection Marking
- IP20
