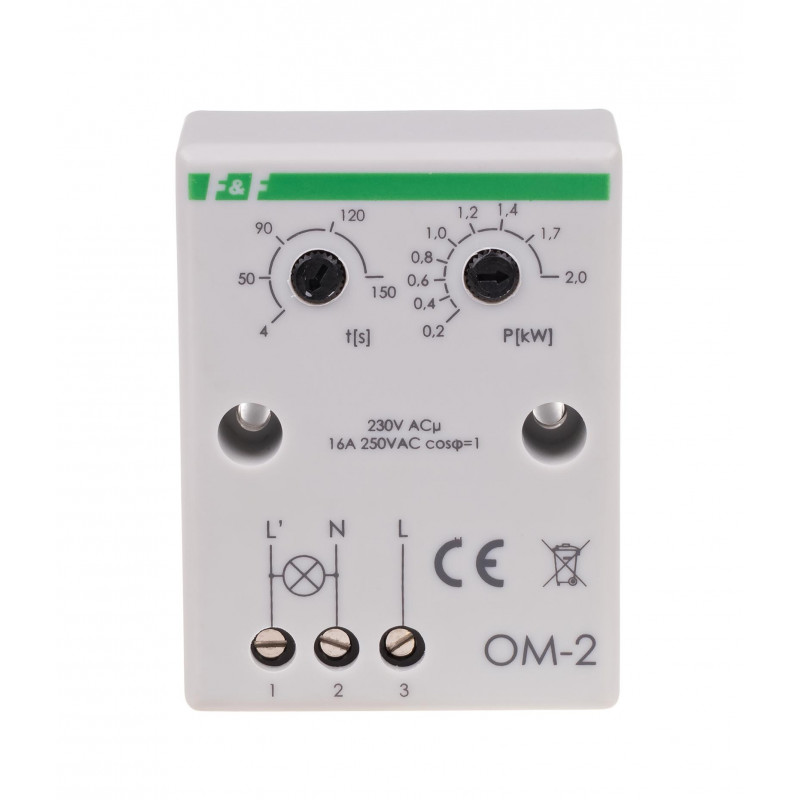

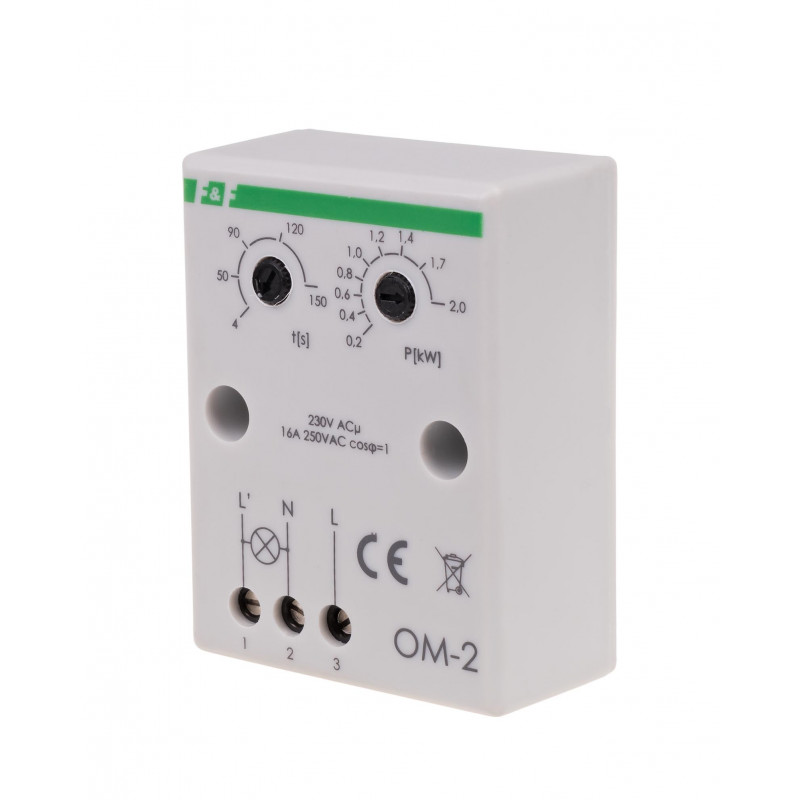

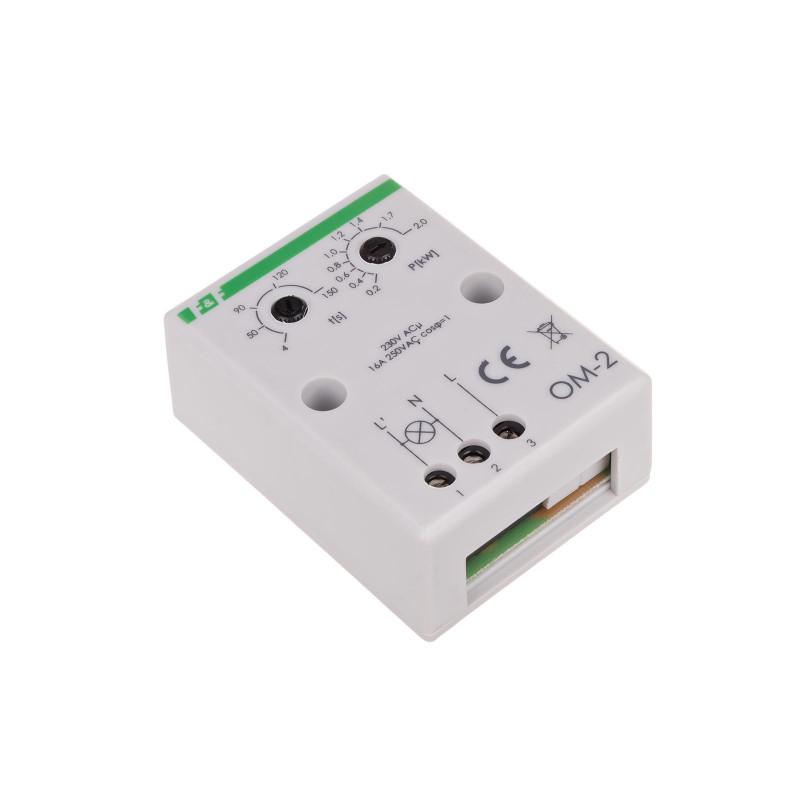

Power consumption limiters OM-2
Adjustable operating power 200-2000 VA. With a constant return time. On plaster.
Power consumption limiters are devised for the automatic disconnection of power from the circuit of single-phase wiring systems once the rated power consumption of the receivers incorporated into the system is exceeded.
Power consumption limiters are devised for the automatic disconnection of power from the circuit of single-phase wiring systems once the rated power consumption of the receivers incorporated into the system is exceeded.
Functioning
The limiter enables the user to supply power to the circuit if the total consumed power applied to the receivers constituting the system is lower than the preset value on the limiter's scale. Once the rated power consumption threshold in the controlled circuit is exceeded, the element is automatically disconnected from the power source. The supply is reinstated automatically once the preset time lapses. If the value of power consumption remains over the rated input, the power supply to the circuit is cut off again.
The power consumption limiter has been equipped with a delayed activation circuit (1.5÷2sec) which prevents disconnection of the power supply in the event of momentary power consumption surges over the rated level.
Attention!
Power limiter should not be used in systems with electronic ignition (energy saving lamps), pulse power supplier and other devices generating higher harmonics from 3 upwards.
- Power supply voltage
- 230 V AC
- Maximum AC-1 load current
- 16 A
- The executive element
- relay
- Contact configuration
- 1 × NO
- Separation of the contact
- NO
- Delay of operation
- 1,5 ÷ 2 s
- Power limitation
- 200÷2000 VA
- Power recovery time
- 4÷150 s
- Power return hysteresis
- 2%
- Terminal
- pluggable terminal blocks 2,5 mm²
- Tightening torque
- 0,4 Nm
- Power consumption
- 0,8 W
- Working temperature
- -25 ÷ 50 °C
- Dimensions
- 51×67×26 mm (± 1 mm)
- Assembly
- on wall
- Ingress Protection Marking
- IP20
