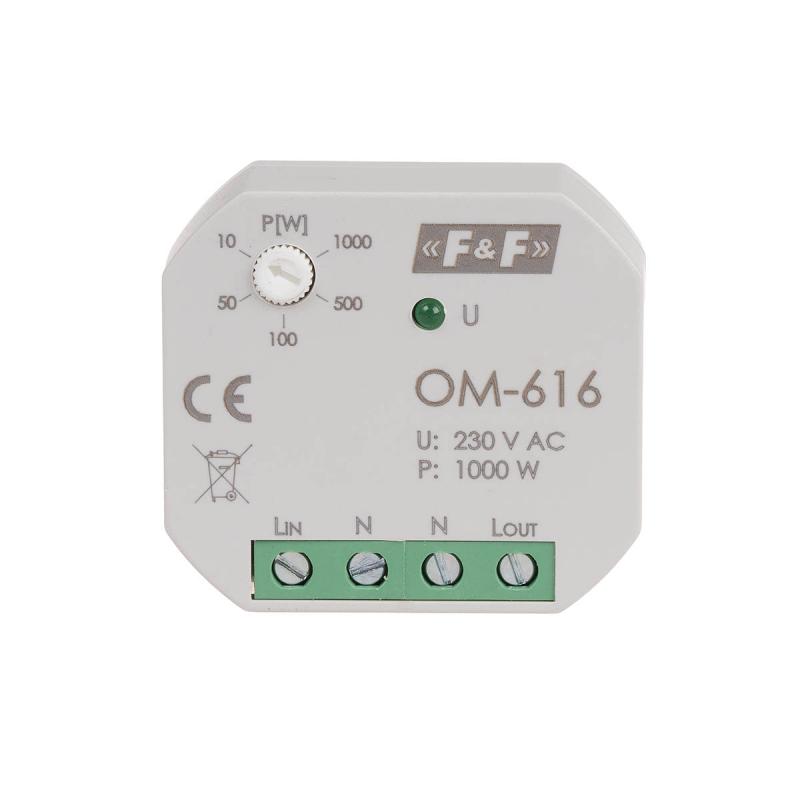

Power consumption limiters OM-616
Adjustable response power 0.02-1 kW. With the function of a voltage relay. A power limiter designed for direct power control of plug-in sockets.
Functioning
Useful in public buildings, hotels, boarding houses, hospitals, etc. It allows you to limit the power consumption from a single socket to small values. Additional function of the voltage relay disconnecting the output in case the supply voltage exceeds 270 V or drops below 150 V.
Useful in public buildings, hotels, boarding houses, hospitals, etc. It allows you to limit the power consumption from a single socket to small values. Additional function of the voltage relay disconnecting the output in case the supply voltage exceeds 270 V or drops below 150 V.
- Power supply voltage
- 85÷265 V AC
- Maximum AC-1 load current
- 5 A
- The executive element
- relay
- Contact configuration
- 1 × NO
- Separation of the contact
- NO
- Power - operating time
- 4 s
- Power - return time
- 30 s
- Voltage - operating threshold - lower UL
- 150 V
- Voltage - operating threshold - upper UH
- 270 V
- Voltage - operating time - lower
- 10 s
- Voltage - response time - upper
- 0,3 s
- Power - threshold of operating power - adjustable
- 0,02÷1 kW
- Terminal
- pluggable terminal blocks 2,5 mm²
- Tightening torque
- 0,4 Nm
- Power consumption
- 0,8 W
- Working temperature
- -25 ÷ 50 °C
- Dimensions
- Ø54 (48×43 mm), height: 20 mm
- Assembly
- in a flush-mounted box Ø60
- Ingress Protection Marking
- IP20
