Priority relays PR-614
On rail TH-35. For cooperation with a current transformer.
Priority relays are designed to control the value of current drawn by electric receivers and their control units in cases where their simultaneous work could result in circuit overload or current overload protection activation.
Priority relays are designed to control the value of current drawn by electric receivers and their control units in cases where their simultaneous work could result in circuit overload or current overload protection activation.
Functioning
The relay is adjusted to work with a current multiplier, with its input connected to the priority circuit and output to the PR measurement clamps, which allows control of circuits with peak load higher than 16A and allows setting the relay's activation threshold higher than 15A (measured current's maximal range will depend on the multiplier transmission, i.e. from 20A to 150A when using 10:1).
The transmission of the current multiplier should be matched to prevent the current of the secondary winding from exceeding 15A.
Attention!
Current measurement input (terminals 4-6) can not exceed 5A.
- Type
- for cooperation with a transformer
- Power supply voltage
- 195÷253 V AC
- The executive element
- relay
- Contact configuration
- 1 × NO/NC
- Separation of the contact
- YES
- Maximum current of non-priority receivers
- 16 A or larger contactor
- Switching current
- 0,5÷5 A
- Switching delay
- 0,1 s
- Return delay
- 0,1 s
- Power return hysteresis
- 10%
- Maximum measuring input current 4-6
- 5:00 AM
- Terminal
- pluggable terminal blocks 2,5 mm²
- Tightening torque
- 0,4 Nm
- Power consumption
- 0,4 W
- Working temperature
- -25 ÷ 50 °C
- Dimensions
- 1 module (18 mm)
- Assembly
- on rail 35 mm
- Ingress Protection Marking
- IP20

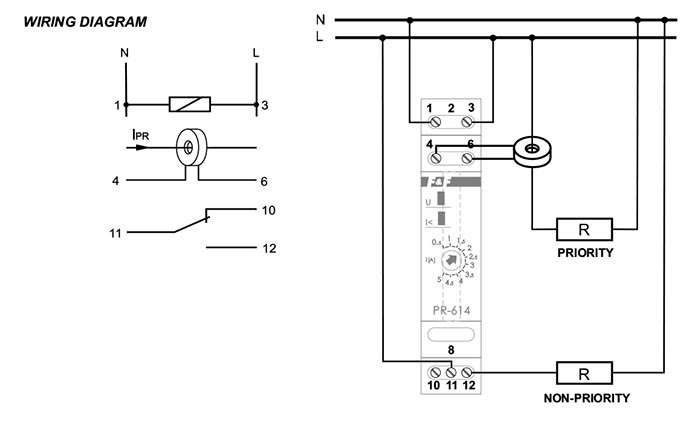

PR in three-phase receiver system
Protection against exceeding the limit under the contract
