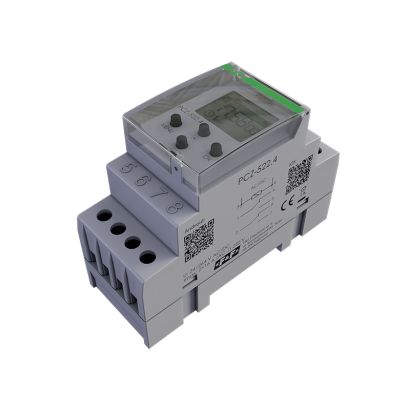

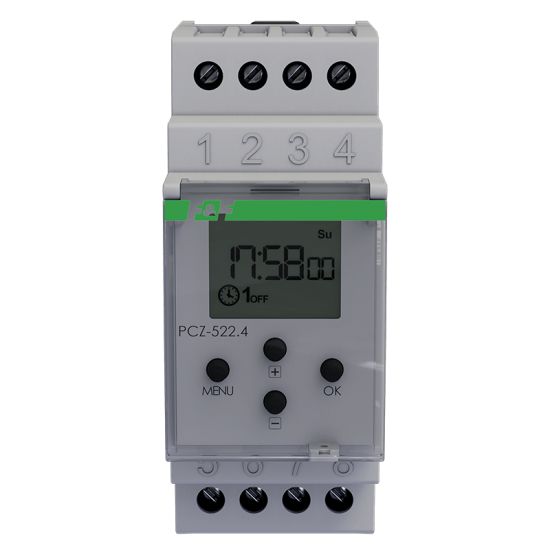

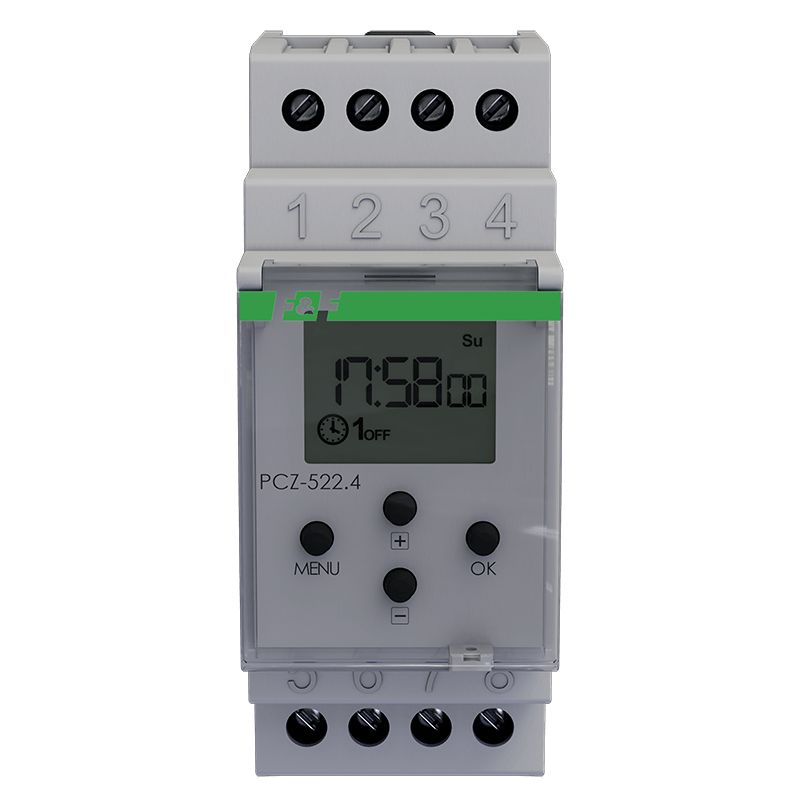

Weekly programmable timer PCZ-522.4
Weekly. Two-channel.
Configuration from iOS and Android phone.
The programmable timer is used for time control of devices in home or industrial automation systems according to an individual time program set by the user.
NEW FUNCTION IN 4-Series CLOCK.
On the Series 4 device, the clock configuration can be read and saved wirelessly via an Android or iOS phone equipped with an NFC communication module.
Operation
Switches an appliance or electrical circuit on and off at programmed times on a daily, weekly, weekday (Mon-Pt) or weekend (So, Nd) cycle. The timer has two independently programmable channels.
Functions of the clock
CHANNEL - a program line with individual ON-OFF COMMAND entries, controlling its own switch contact of the receiver.
ON-OFF COMMAND - program entry according to which the receiver will be switched on or off.
500 MEMORY CELLS - memory of individual entries allowing programming of 250 pairs of ON-OFF COMMANDS.
AUTOMATIC OPERATION - operation according to ON-OFF COMMANDS programmed by the user in the clock memory. [the
symbol on the display is on].
MANUAL OPERATION - [ON] permanent contact activation (item 1-5) or [OFF] permanent contact disconnection (item 1-6) when AUTOMATIC OPERATION mode is disabled. [no symbol on the display].
OPERATION CYCLE - adjustable, weekly cycle (7 days from Monday to Sunday), in which the receiver's switching is carried out according to the programmed ON-OFF COMMANDS:
* a single day of the week: Mo; Tu; We; Th; Fr; Sa or Su.
* working days: Mo Tu We Th Fr (Monday through Friday).
* weekend days: Sa Su (Saturday and Sunday).
* daily: Mo Tu We Th Fr Sa Su (Monday through Sunday).
AUTOMATIC TIME CHANGE - Change of time from winter to summer. Option to work with or without automatic change. The controller is equipped with a time zone selection function so that the switching time is in accordance with the local time.
DATE LOOK - possibility to preview the set date (OK.).
CURRENT PROGRAM PREVIEW - in the date preview mode, successive presses of the +/- buttons display information about the number and details of the currently executed program.
NFC FREE COMMUNICATION - Ability to wirelessly read and save the timer configuration via an Android phone equipped with an NFC communication module.
PCZ CONFIGURATOR APLICATION - A free app for Android phones and tablets equipped with an NFC wireless communication module.
CLOCK TIME CORRECTION - Set the monthly correction of system clock seconds.
BATTERY CHARGING INDICATOR - The controller is equipped with a battery status check to keep the clock running in case of main power supply failure. If the battery is low, the user will be notified to replace it.
The battery life depends on the ambient temperature and the degree of battery operation.
LCD BRIGHTNESS CORRECTION - Changing the contrast of the display allows the LCD to be read clearly for different viewing angles.
RELAY STATE MEMORY - The set relay state in manual mode is also remembered after power failure.
PCZ Configurator
- NFC wireless communication - the ability to wirelessly read and save the timer configuration via an Android phone equipped with an NFC communication module.
- preparation of the timer configuration in Offline mode (without connection to the timer)
- reading and writing the configuration to the controller
- quick programming of multiple controllers with a single configuration
- reading and writing configurations to file
- sharing the configuration via e-mail, bluetooth, network drives ...
- unambiguous identification of the connected clock and the ability to give devices their own names
- automatic configuration backup. In conjunction with the unique identifier of each clock, you can easily restore the previous configuration
- setting the time and date based on the phone's clock
- preparation of the timer configuration in Offline mode (without connection to the timer)
- reading and writing the configuration to the controller
- quick programming of multiple controllers with a single configuration
- reading and writing configurations to file
- sharing the configuration via e-mail, bluetooth, network drives ...
- unambiguous identification of the connected clock and the ability to give devices their own names
- automatic configuration backup. In conjunction with the unique identifier of each clock, you can easily restore the previous configuration
- setting the time and date based on the phone's clock
The app is available on Google Play!
NOTE!
Currently the PCZ-522 clock is sold with index 4.
This is the index indicating the software version of the clock.
Check what software version your clock has and download the correct manual.
- Type
- programmable weekly
- Power supply voltage
- 24÷264 V AC/DC
- The executive element
- relay
- Maximum load current
- 2 × 16 A
- Contact configuration
- 2 × NO/NC
- Separation of the contact
- YES
- Time of clock operation
- 6 years
- Battery type
- 2032 (lithium)
- Accuracy of the clock's indications
- 1 s
- Time error
- ±1 s / 24 h
- Accuracy of program time setting
- 1 min.
- The number of program memory cells
- 500 (2 × 125 pairs of COMMISSIONS ON-OFF / CHANNEL)
- Display operation time
- NONE
- Terminal
- pluggable terminal blocks 4,0 mm²
- Tightening torque
- 0,5 Nm
- Power consumption
- 1,5 W
- Working temperature
- -20÷50°C
- Dimensions
- 2 modules (35 mm)
- Assembly
- on rail 35 mm
- Ingress Protection Marking
- IP20
