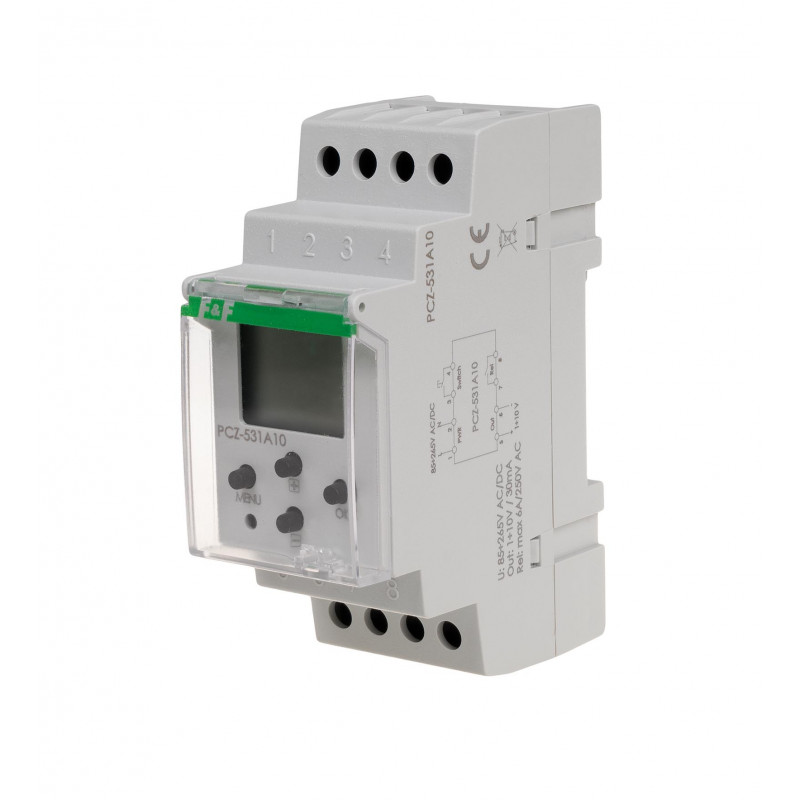

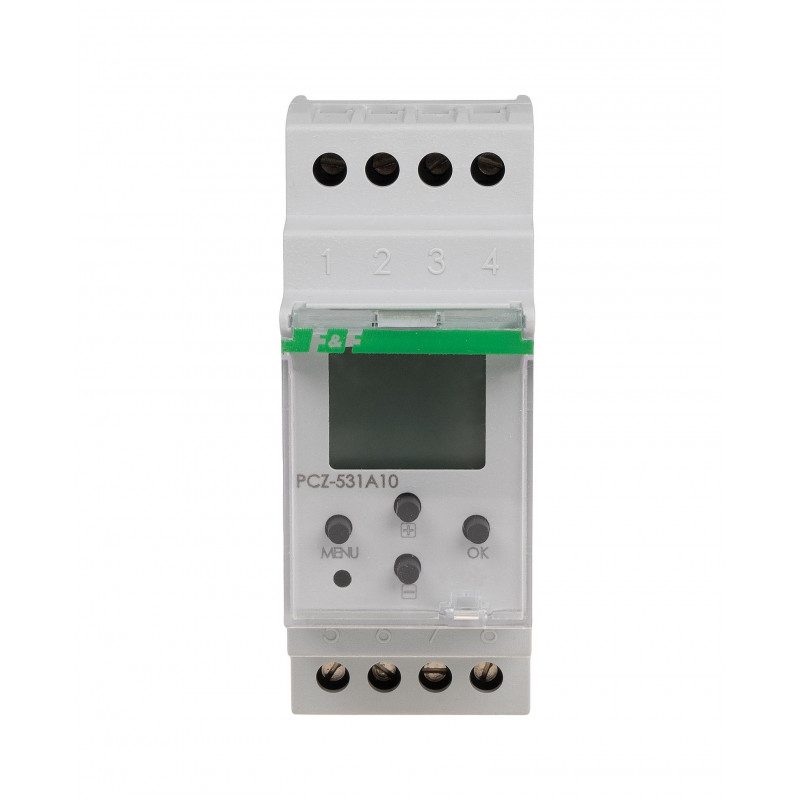

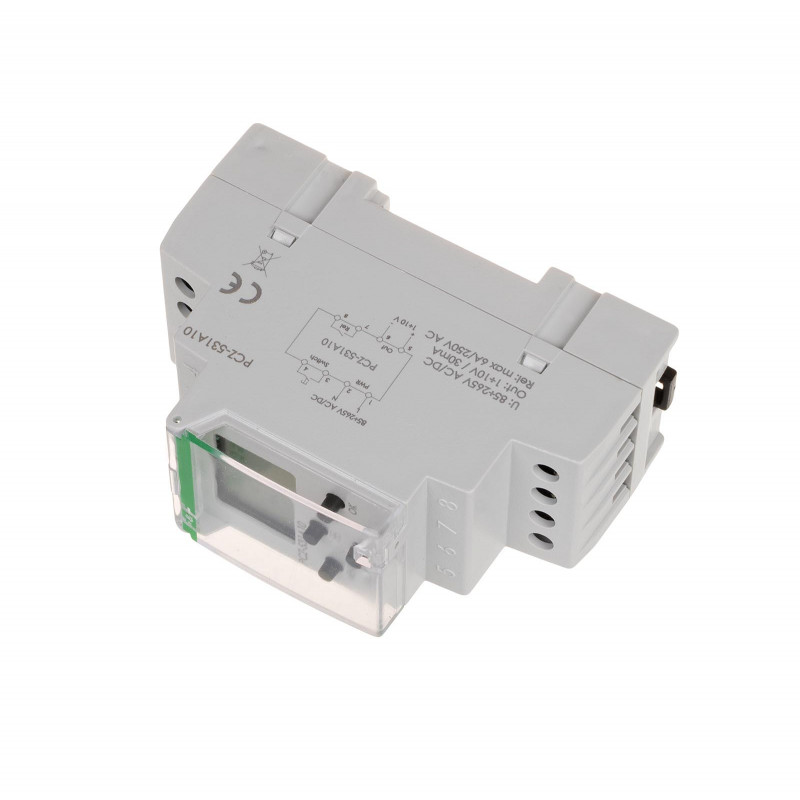

Programmable cotrol timer - weekly PCZ-531A10

PCZ-531A10, 5902431670140
The PCZ-531A10 is designed for programmable, temporary control of devices with the standard voltage signal 0÷10 V.
On TH-35 mm rail.

Functioning
The timer sets the brightness of the output circuit to the preset level (range 0-100%) on the preprogrammed hours in daily, weekly, business days (Mo.-Fr.) or weekend (Sa.-Su.) cycles. It is possible to program up to 480 indepen-dent program steps. The controller is equipped with a local input allowing remote control of the controller with any monostable button and with an auxiliary relay that activates when the output is switched on (set brightness level higher than zero).


Timer features
AUTOMATIC OPERATION - operation by ON-OFF COMMANDS programmed by the user in the timer memory [ icon on display is switched on]
MANUAL OPERATION - manual control (with the button connected to the controller) over the switching-on, switching-off and level of brightness
SEMI-AUTOMATIC OPERATION - operation in automatic mode can be inter-rupted to manually (with external button) set the brightness level. Semi-automatic operation continues until manual return to the automatic mode or until the next step of the program is started.
ON-OFF COMMAND - program entry according to which the receiver will be turned on or off.
OPERATION CYCLE - adjustable, weekly cycle of the receiver switching in accordance with the programmed commands:
* single day of the week: Mo. Tu. We. Th. Fr. Sa. or Su.
* business days: Mo. Tu. We. Th. Fr. (Monday to Friday).
* weekend: Sa. Su. (Saturday and Sunday)
* daily: Mo. Tu. We. Th. Fr. Sa. Su. (Monday to Sunday).
AUTOMATIC TIME CHANGE - Changing time from winter to summer is automatically done at night on the last Saturday/Sunday of March. Changing time from summer to winter is done on the last Saturday/Sunday of October. The controller has a time zone selection feature, so that the switching time is consistent with local time.
DATE PREVIEW - Pressing the OK button displays the set date in the format: dd-mm-yy.
CURRENT PROGRAM PREVIEW - If the timer operates in automatic mode,  then the subsequent pressing of the Up/Down button in the date preview mode will display information about the number and details of the currently running program.
CLOCK FREQUENCY ADJUSTMENT - Ability to freely accelerate/decelerate the timer. For example, if the controller starts to run slow 5 seconds per month over time, you can programmatically correct the deviation.
REPLACEABLE BATTERY (type 2032) - The controller is provided with a battery status monitor in case of a main power failure. If the battery is low, you will be informed that you need to replace it.
LCD BRIGHTNESS ADJUSTMENT - Changing the display contrast allows you to obtain clear LCD reading for different viewing angles.
RELAY STATE MEMORY - The set state of the relay in manual mode is saved also  after power failure.


PCZ-531A10
Type
programmable weekly
Power supply voltage
85÷265 V AC/DC
The executive element
transistor
Maximum load current
8 A 50 V DC
Entrance
potential-free (short-circuit 3-4)
Time of clock operation
6 years
Battery type
2032 (lithium)
Maintenance of the display
none
Accuracy of the clock's indications
1 s
Time error
±1 s / 24 h
Accuracy of program time setting
1 min.
The number of program memory cells
480
Terminal
pluggable terminal blocks 4,0 mm²
Tightening torque
0,5 Nm
Power consumption
1,5 W
Working temperature
-25 ÷ 50 °C
Dimensions
2 modules (35 mm)
Assembly
on rail 35 mm
Ingress Protection Marking
IP20


Connection scheme
