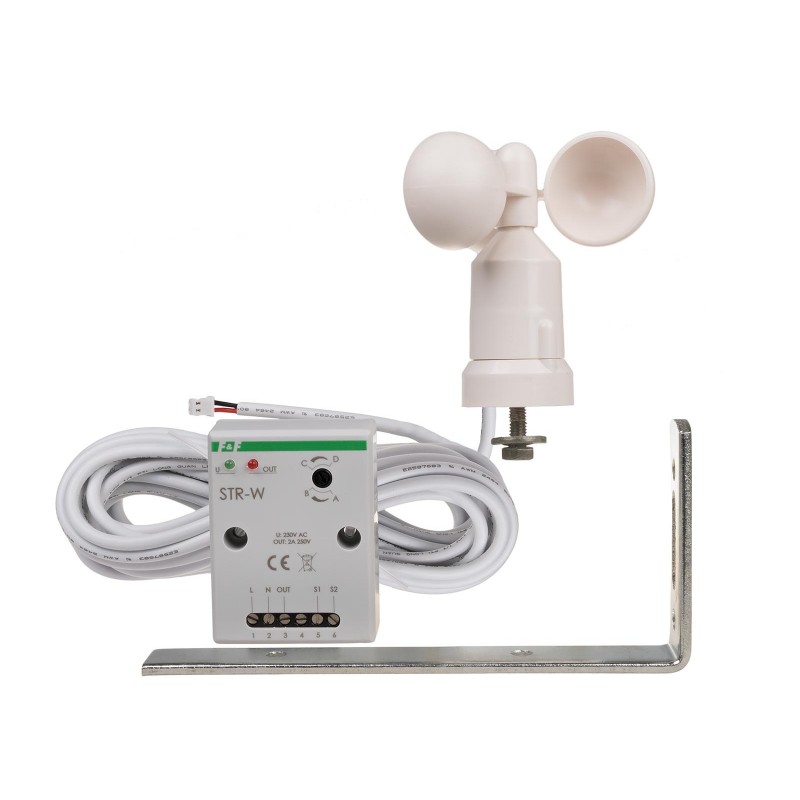

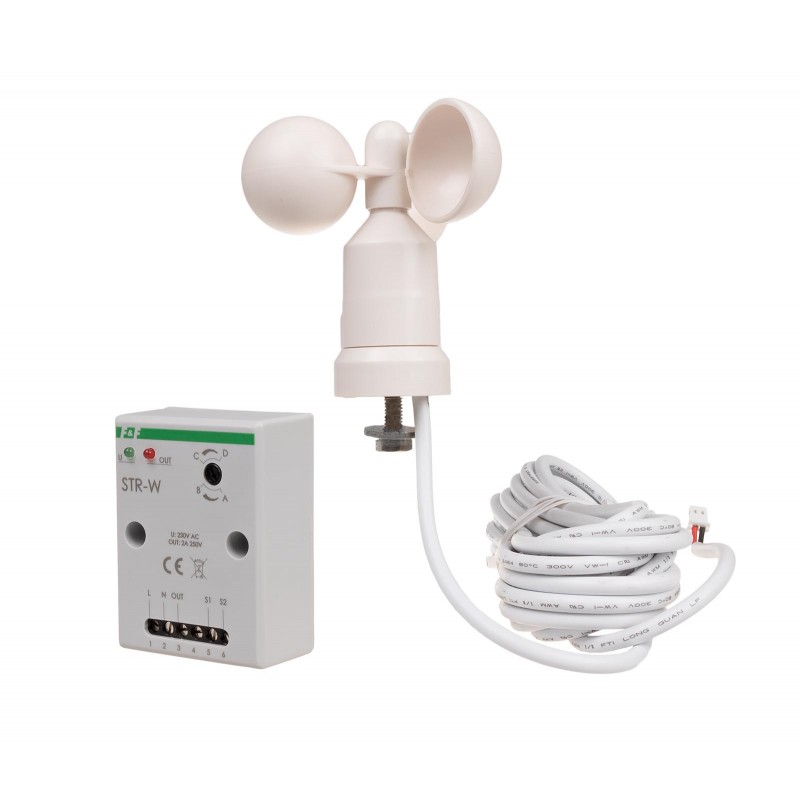

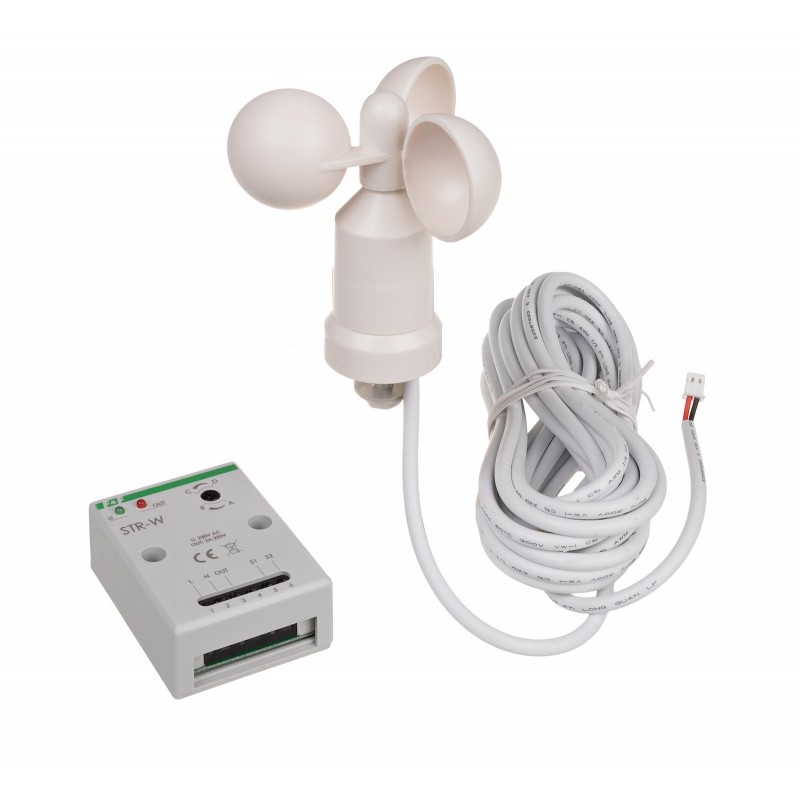

Roller blind controller STR-W (Wind detector)

STR-W, 5908312597766
STR-W controller along with the external wind sensor is designed for monitoring of current wind speed. If the wind speed exceeds a given threshold value, the internal relay will switch on. Combined with STR-3 or STR-4 roller blind controllers it allows to build a system that closes window roller blinds or retracts awnings if the wind is too strong.

Functioning
The controller operates in two modes:

Continuous
If the wind speed exceeds a given threshold value, the internal contact relay closes and remains closed for the entire duration of wind gusts. Combined with STR-3 and STR-4 roller blind controllers, the continuous mode ensures closing of roller blinds at a time of strong wind and locks them in closed position until the wind ceases.

Pulse
If the wind speed exceeds a given threshold value, the internal contact relay closes for approx. 1.5 second, passing to the roller blind controllers a single command of closing. Combined with STR-3 and STR-4 roller blind controllers, the pulse mode ensures closing of roller blinds at the time of strong wind, but then the user has the ability to raise the roller blinds at any time. The range of wind speed alert is regulated smoothly from 20 km/h (position D) to 70 km/h (position C).


STR-W
Power supply voltage
100÷265 V AC/DC
The degree of protection of the fan
IP65
Dimensions of the fan
Ø80×85W mm
Windmill mounting bracket
steel fyears (L profile) 150 × 70 × 3 mm
Windmill mounting screw
N6
Windmill cable
2× 0,25 mm² / l : 5 m
Terminal
pluggable terminal blocks 2,5 mm²
Power consumption waking / working
0,2 W / 0,6 W
Dimensions
67 mm x 50 mm x 26 mm
Assembly
on wall
Ingress Protection Marking
IP20


Connection diagram 230V





Connection diagram 24V
