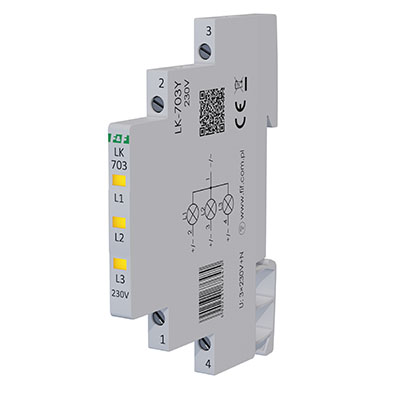

Signal lamps LK-703Y 230 V
LK-703 indicator lamps are used for optical signaling of the presence of voltage in individual phases of a 3-phase network.
The small size of the housing (6.2 mm wide) saves space in the switchboard.
The presence of voltage in a phase is signalled by the lighting of the appropriate LED diode connected to the circuit of this phase.
If an overcurrent fuse equal to or greater than 25 A is installed before the point of connection of the lamp to the mains, the lamp connection circuit should be additionally protected with a fuse no greater than 6 A.
Types of indicator lights LK-703
| Index | Color | Current voltage | Instruction | |
|---|---|---|---|---|
 |
LK-703G-24V | 3 x zielony | 3×24 V+N | Pobierz |
 |
LK-703G-110V | 3 x zielony | 3×110 V+N | Pobierz |
 |
LK-703G-230V | 3 x zielony | 3×230 V+N | Pobierz |
 |
LK-703R-24V | 3 x czerwony | 3×24 V+N | Pobierz |
 |
LK-703R-110V | 3 x czerwony | 3×110 V+N | Pobierz |
 |
LK-703R-230V | 3 x czerwony | 3×230 V+N | Pobierz |
 |
LK-703Y-24V | 3 x żółty | 3×24 V+N | Pobierz |
 |

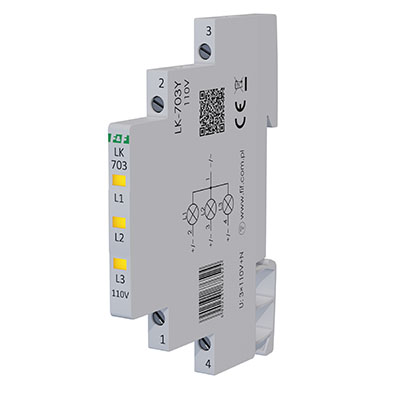

LK-703Y-110V | 3 x żółty | 3×110 V+N | Pobierz |
 |
LK-703Y-230V | 3 x żółty | 3×230 V+N | Pobierz |
 |
LK-703K-24V | czerwony żółty zielony |
3×24 V+N | Pobierz |
 |
LK-703K-110V | czerwony żółty zielony |
3×110 V+N | Pobierz |
 |
LK-703K-230V | czerwony żółty zielony |
3×230 V+N | Pobierz |
- Power supply voltage
- 3×230 V+N
- Power control
- 3 x LED
- LED colors
- 3 x yellow
- Rated current
- 1 mA/kanał
- Terminal
- pluggable terminal blocks 2,5 mm²
- Tightening torque
- 0,4 Nm
- Power consumption
- 0,15 W/kanał
- Working temperature
- -30÷50°C
- Dimensions
- 1/3 modułu (6,2 mm)
- Assembly
- on rail 35 mm
- Ingress Protection Marking
- IP20
