Control light LK-701R 230 V

LK-701R, 5902431676296

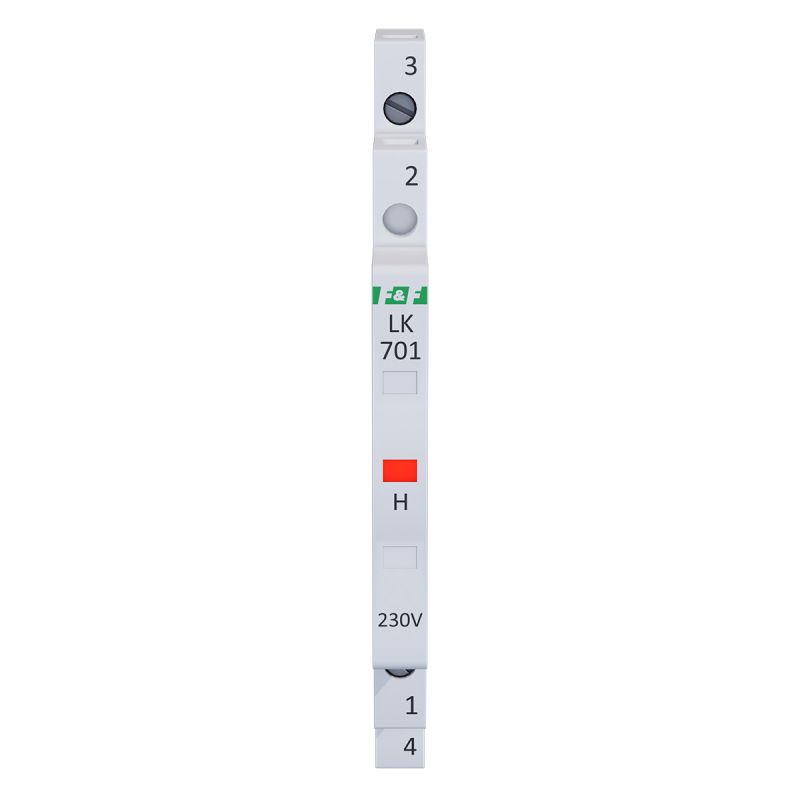

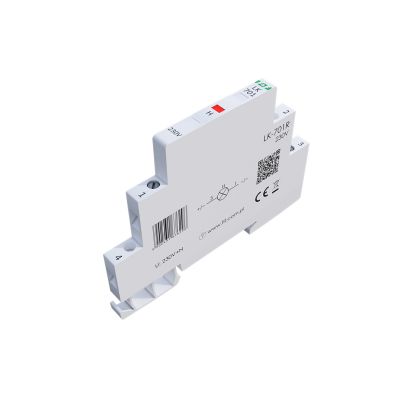

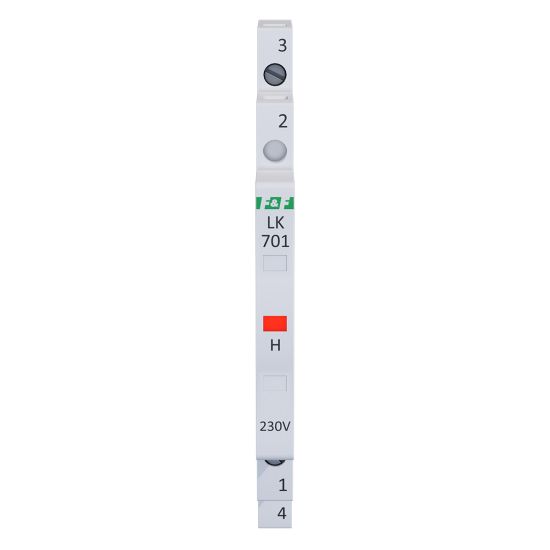

Control lamp LK-701R 230 V is used to visually indicate the presence of voltage in an electrical circuit.

LED color x 1 red

The small size of the housing (width of 6.2 mm) saves space in the switchgear.
The presence of voltage in a phase is indicated by the illumination of the corresponding LED included in the circuit of this phase.
If an overcurrent fuse equal to or greater than 25 A is installed before the point of connection of the lamp to the mains, the circuit of connection of the lamp should be made safe with a fuse of not more than 6 A.


Types of control lamps LK-701

Index Color Voltage Instruction
LK-703G 24V 3.jpg LK-701G-24V 1 x green 12÷48 V AC / 12÷60 V DC Download
LK-703G 24V 3.jpg LK-701G-110V 1 x green 110 V+N Download
LK-703G 24V 3.jpg LK-701G 1 x green 230 V+N Download
LK-703G 24V 3.jpg LK-701R-24V 1 x red 12÷48 V AC / 12÷60 V DC Download
LK-703G 24V 3.jpg LK-701R-110V 1 x red 110 V+N Download
LK-703G 24V 3.jpg LK-701R 1 x red 230 V+N Download
LK-703G 24V 3.jpg LK-701Y-24V 1 x yellow 12÷48 V AC / 12÷60 V DC Download
LK-703G 24V 3.jpg LK-701Y-110V 1 x yellow 110 V+N Download
LK-703G 24V 3.jpg LK-701Y 1 x yellow 230 V+N Download
LK-701R
Power supply voltage
230 V+N
Power control
1 × LED (8×4 mm)
LED colors
1 x red
Terminal
pluggable terminal blocks 2,5 mm²
Tightening torque
0,4 Nm
Power consumption
1,1 W
Working temperature
-25 ÷ 50 °C
Dimensions
1 module (18 mm)
Assembly
on rail 35 mm
Ingress Protection Marking
IP20
