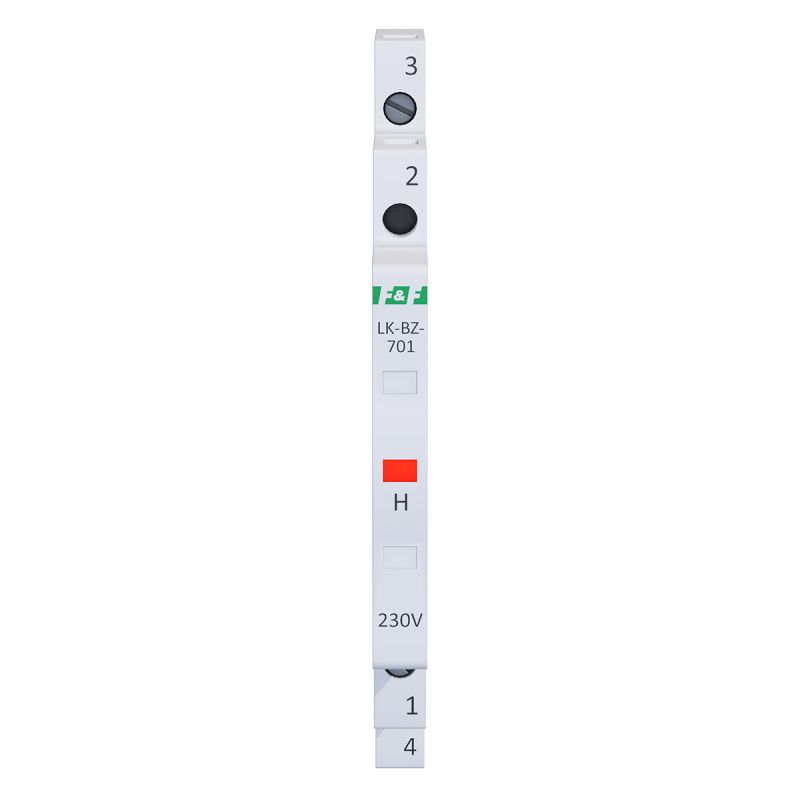

Control lamp LK-BZ-701R 230 V
Control lamp LK-BZ-701R is usedto visually signal the presence of voltage in 1-phase mains.
With built-in protection.
1 x LED red.
The LK-BZ-701 indicator lamp is used to visually signal the presence of voltage in a 1-phase network. The small size of the casing (width 6.2 mm) saves space in the switchgear. The indicator light is protected by a built-in fuse, which avoids the use of an additional fuse module.
Operation
The presence of voltage on a phase is indicated by the illumination of an LED connected to the circuit of that phase. If it is not lit, this indicates that there is no power supply voltage, or that the built-in fuse is faulty.
A fast fuse built into the lamp eliminates the need for additional protection when the lamp is in a circuit with a current limitation of less than 100A.
Types of indicator lamps LK-BZ-701
| Index | Kolor | Napięcie | Instrukcja | |
|---|---|---|---|---|
 |
LK-BZ-701R | 1 x czerwony | 230 V+N | Pobierz |
 |
LK-BZ-701G | 1 x zielony | 230 V+N | Pobierz |
 |
LK-BZ-701Y | 1 x żółty | 230 V+N | Pobierz |
- Power supply voltage
- 230 V+N
- Power control
- 1 × LED (8×4 mm)
- LED colors
- 1 x red
- Rated current
- 1 mA/kanał
- Terminal
- pluggable terminal blocks 2,5 mm²
- Tightening torque
- 0,4 Nm
- Power consumption
- 0,15 W/kanał
- Type of fuse
- szybki bezpiecznik topikowy
- Fuse - rated current
- 500 mA/channel
- Fuse - breaking capacity
- 100 A @250 V AC
- Working temperature
- -30÷50°C
- Dimensions
- 1/3 modułu (6,2 mm)
- Assembly
- on rail 35 mm
- Ingress Protection Marking
- IP20
