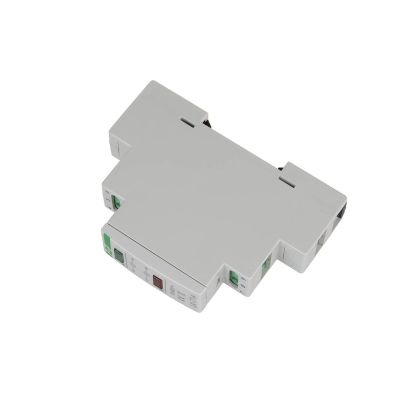

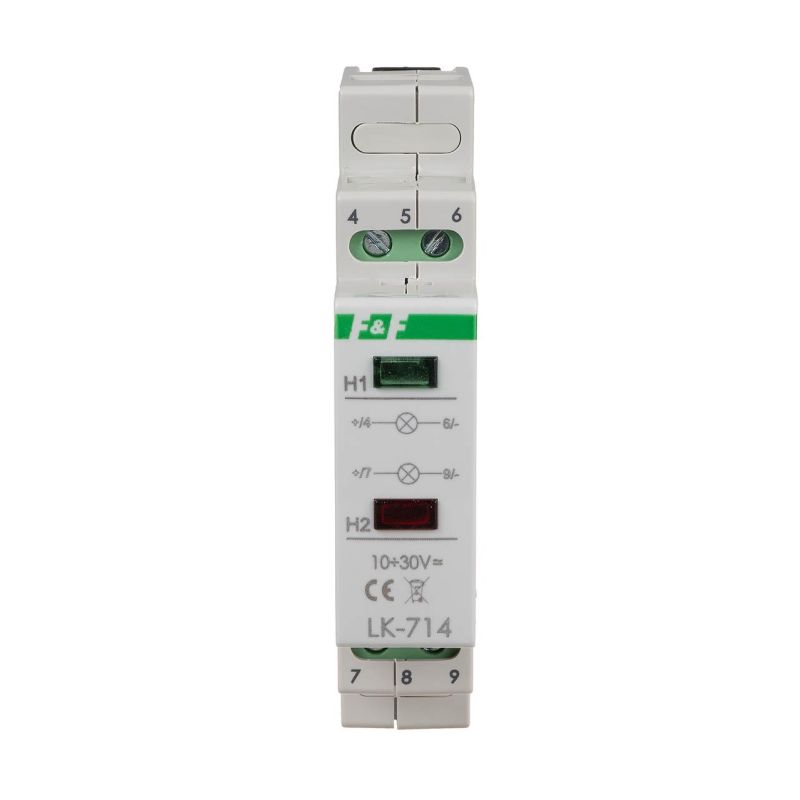

Signal lamp LK-714 10÷30 V AC/DC
Two states. Two LEDs: green, red. Voltage range 10÷30 V AC/DC.
The signal light LK-714 is used for optical signaling circuits or states listed receivers, such as closed - open; work - break, etc.
The signal light LK-714 is used for optical signaling circuits or states listed receivers, such as closed - open; work - break, etc.
Functioning
The state-controlled circuit or the receiver is indicated by lighting the appropriate LEDs connected in parallel to this circuit or the receiver.
Order labelling method
LK-714 10÷30V —— supply voltage
- Power supply voltage
- 10÷30 V AC/DC
- Power control
- 1 × LED (8×4 mm) green, 1 × LED (8×4 mm) red
- Terminal
- pluggable terminal blocks 2,5 mm²
- Tightening torque
- 0,4 Nm
- Power consumption
- 0,8 W
- Working temperature
- -25 ÷ 50 °C
- Dimensions
- 1 module (18 mm)
- Assembly
- on rail 35 mm
- Ingress Protection Marking
- IP20
