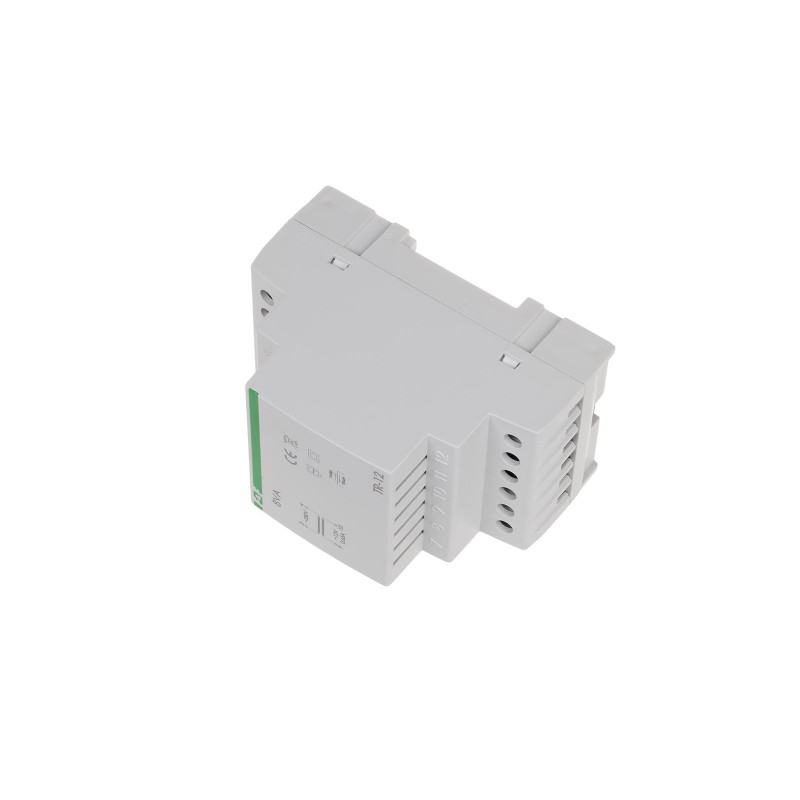

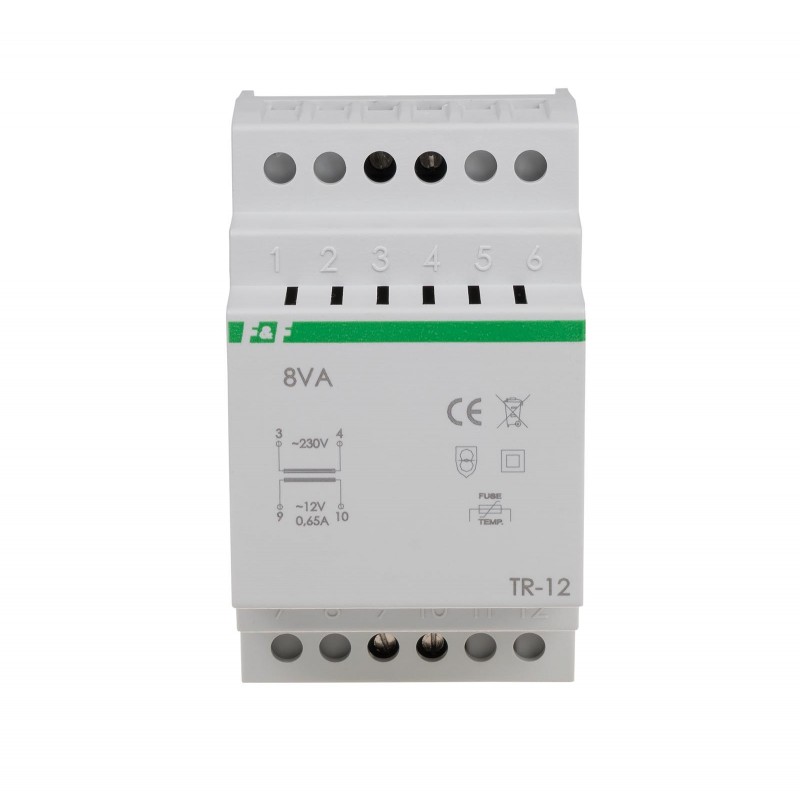

Transformer TR-12

TR-12, 5908312596103
Output voltage 12V.
Application: power supply of electrical and electronic devices which do not require a stable and properly filtered supply voltage, regardless of mains voltage fluctuations.

Attention!
TR has a single electronic thermal protection fuse before the transformer temperature 115°C. For complete protection of the receiver, it is advisable to connect an additional overcurrent protection 1.5 A (eg. Fuse module BZ-1) for the secondary.


TR-12
Type
network transformer
Power supply voltage
230 V AC
Maximum load current
0,66 A
Output voltage OUT
12 V AC
Output power
8 VA
Efficiency
85%
Mass
325 g
Terminal
pluggable terminal blocks 4,0 mm²
Tightening torque
0,5 Nm
Working temperature
-10÷40°C
Dimensions
3 modules (52,5 mm)
Assembly
on rail 35 mm
Ingress Protection Marking
IP20
