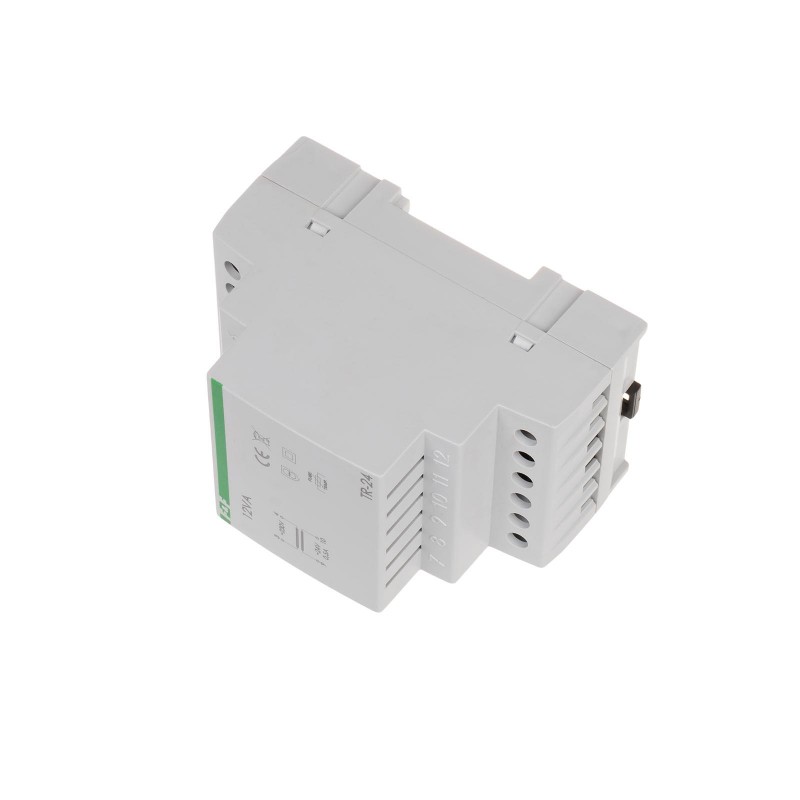

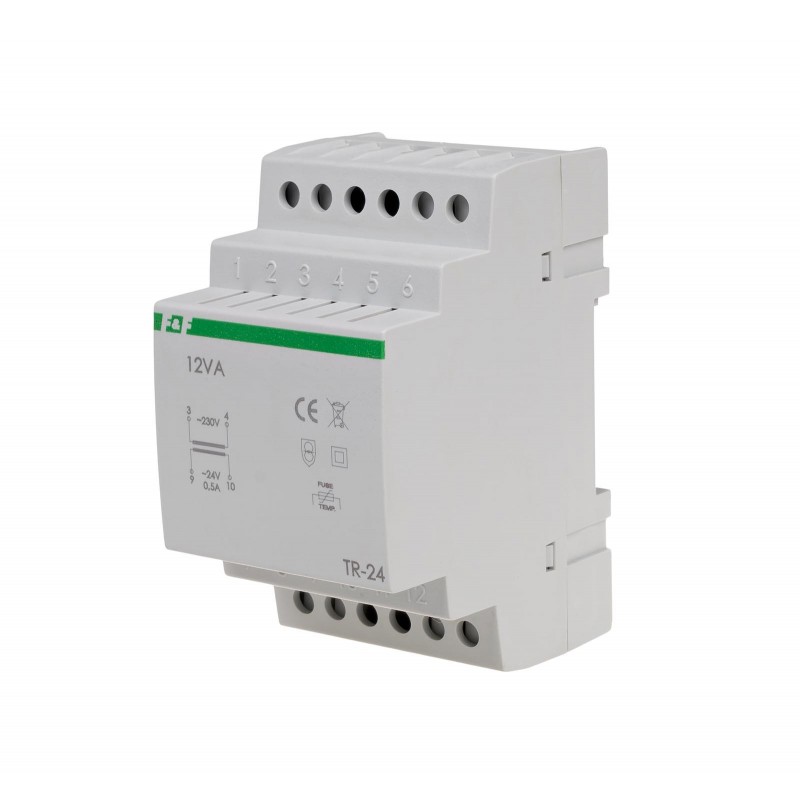

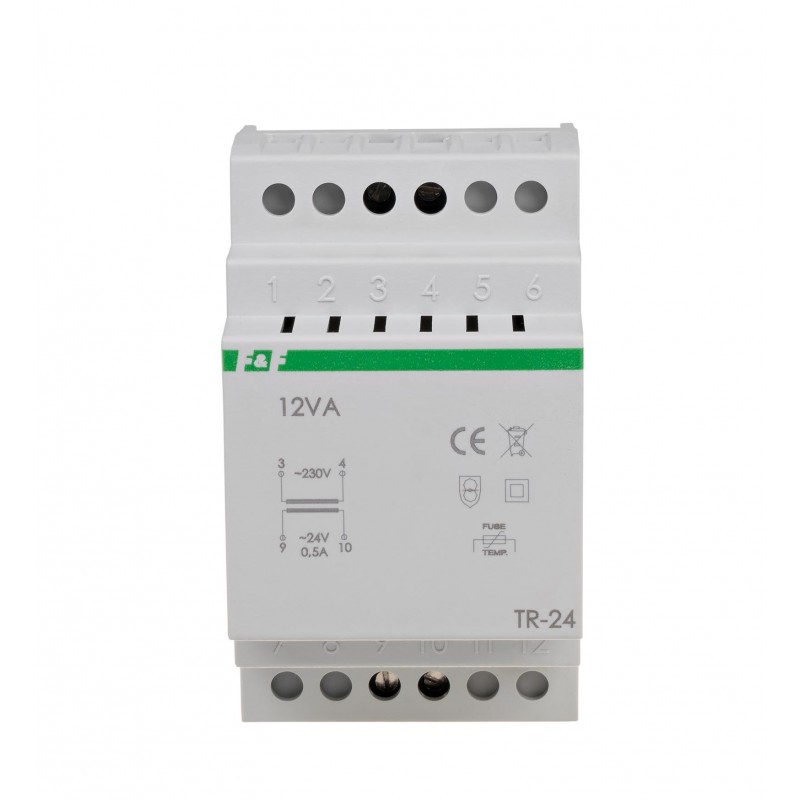

Transformer TR-24

Transformer TR-24 View larger
Previous Next

Transformer TR-24

TR-24, 5908312596172

Product description

Output power 24W.
Application: power supply of electrical and electronic devices which do not require a stable and properly filtered supply voltage, regardless of mains voltage fluctuations.

Attention!
TR has a single electronic thermal protection fuse before the transformer temperature 115°C. For complete protection of the receiver, it is advisable to connect an additional overcurrent protection 1.5 A (eg. Fuse module BZ-1) for the secondary.


Typenetwork transformer
Power supply voltage230 V AC
Maximum load current0,5 A
Output voltage OUT24 V AC
Output power12 VA
Efficiency85%
Mass433 g
Terminalpluggable terminal blocks 4,0 mm²
Tightening torque0,5 Nm
Working temperature-10÷40°C
Dimensions3 modules (52,5 mm)
Assemblyon rail 35 mm
Ingress Protection MarkingIP20

TR-24 manual (620.77k)

TR-24 outline CAD dxf (392.44k)

TR declaration CE 2024 (178.34k)
