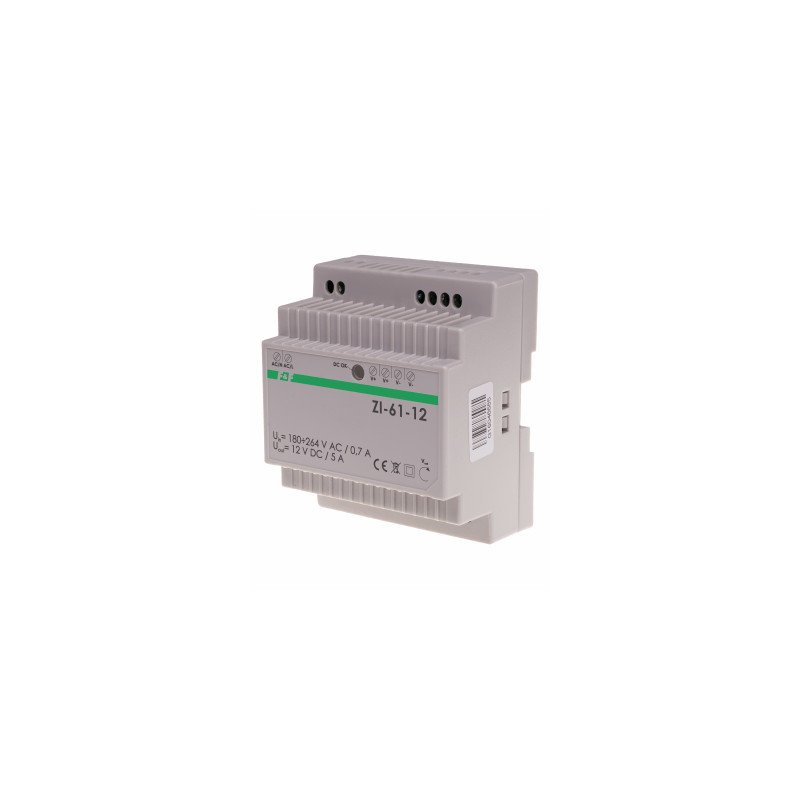

Pulse power supply ZI-61-12

ZI-61-12V, 5908312599753
Output voltage 12 V. Power 60 W.
The switched-mode power supply is used to supply electric and electronic devices that require a stable, filtered supply voltage independent of changes in the mains voltage.

- short-circuit - in case of overload or short-circuit, the output voltage is automatically disconnected. The power supply cyclically attempts to turn on the power supply and when the cause of the protection operation ceases, the rated supply voltage is restored;
- overvoltage - cut off the output voltage. Return to normal operation is possible after turning the power off and on again;
- thermal - cutting off the output voltage. When the temperature drops to a safe value, the output voltage will be restored.


Implementation

Type Output voltage Output current
ZI-61-12 12V DC 5A
ZI-61-24 24V DC 2,5A



ZI-61-12V
Type
impulse power supply
Power supply voltage
180÷264 V AC
Maximum load current
2,5 A
Output voltage OUT
12 V DC
Output power
60 W
Efficiency
87%
Inrush current
40 A (230 V AC)
Stabilization of the output voltage - when the output voltage is changed
±1%
Stabilization of the output voltage - when the output current is changed
±1%
Voltage regulation range
10,8÷13,8 V
Ripple and noise
240 mVp-p
Overload
120÷180% I output
Threshold for overvoltage protection
18÷23 V
Thermal protection threshold
135÷165°C
Mass
270 g
Leakage current
1 mA (230 V AC)
Terminal
pluggable terminal blocks 2,5 mm²
Tightening torque
0,4 Nm
Working temperature
-20÷50°C
Dimensions
4,5 modułu (78 mm)
Assembly
on rail 35 mm
Ingress Protection Marking
IP20
