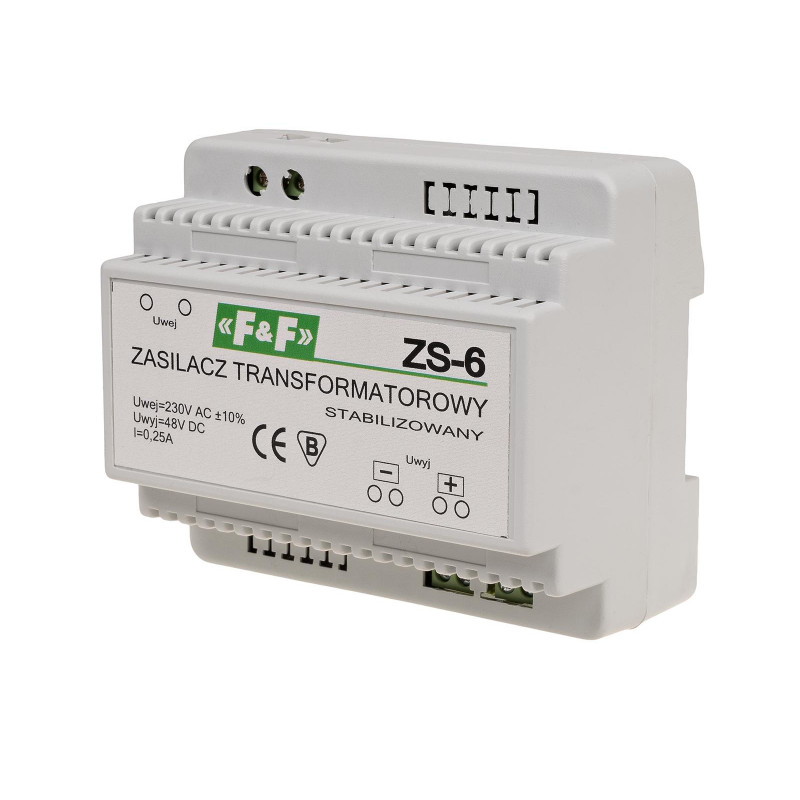

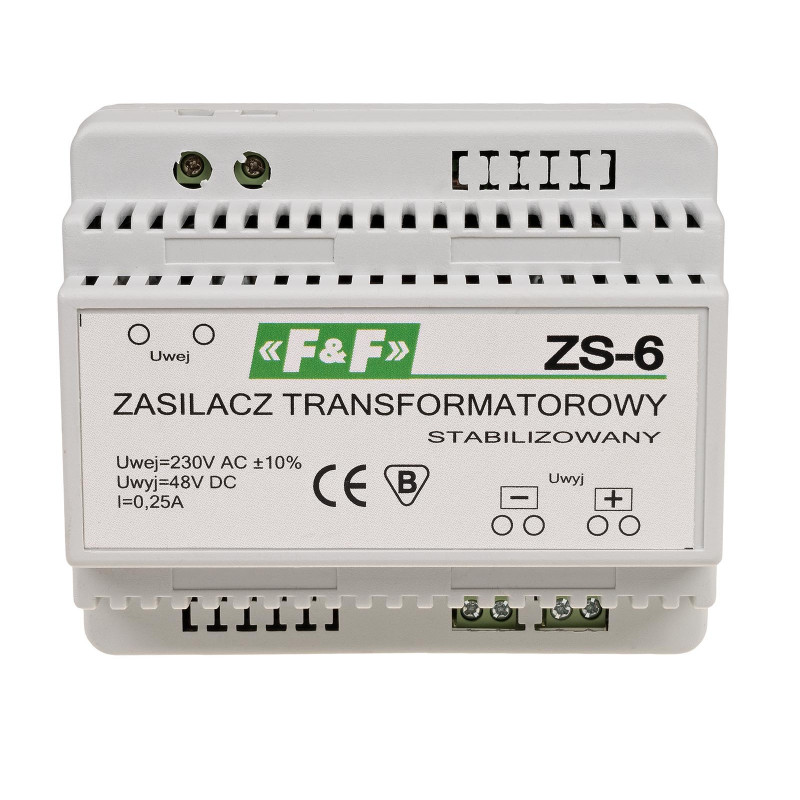

Stabilised power supply ZS-6
Transformer power supply. Stabilized. 48 V output voltage. Power 12 W.
Attention!
When congestion occurs long-term loss of voltage at the output due to fuse thermal actuation inside the stabilizer. When cool the power supply will cool automatically returns to work.
- Type
- transformer power supply
- Power supply voltage
- 230 V AC
- Maximum load current
- 0,25 A
- Output voltage OUT
- 48 V DC
- Output power
- 12 W
- ripple
- max. 3 mV RMS
- Mass
- 550 g
- Terminal
- pluggable terminal blocks 2,5 mm²
- Tightening torque
- 0,4 Nm
- Working temperature
- -10÷40°C
- Dimensions
- 6 modules (105 mm)
- Assembly
- on rail 35 mm
- Ingress Protection Marking
- IP20
