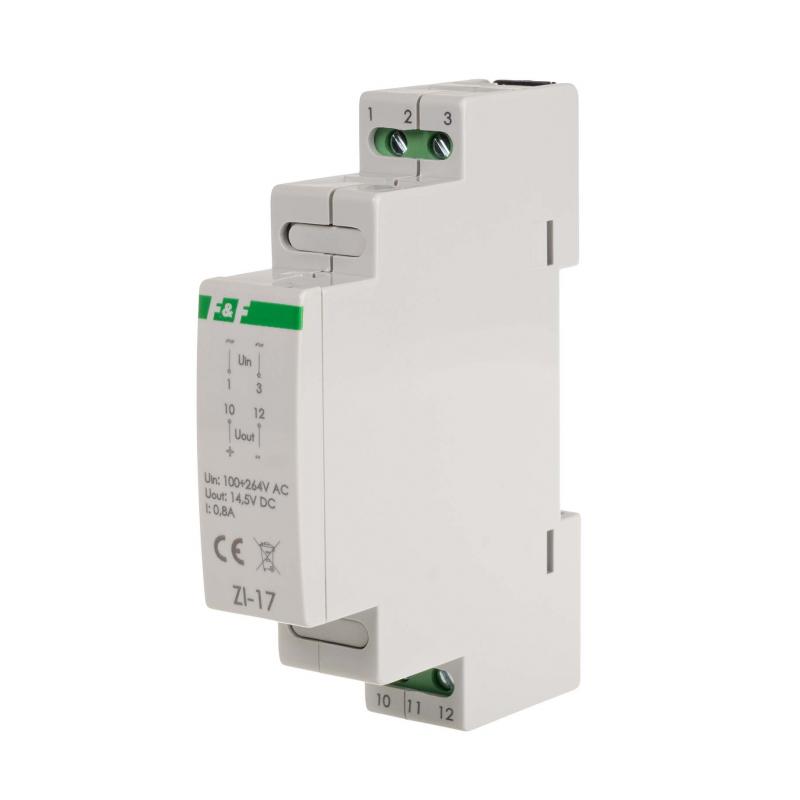

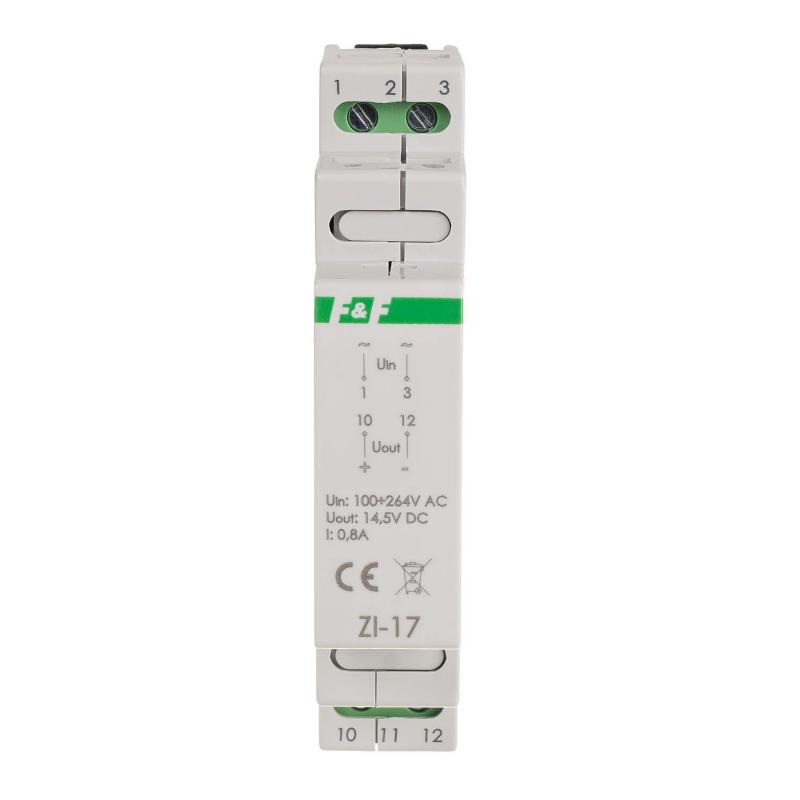

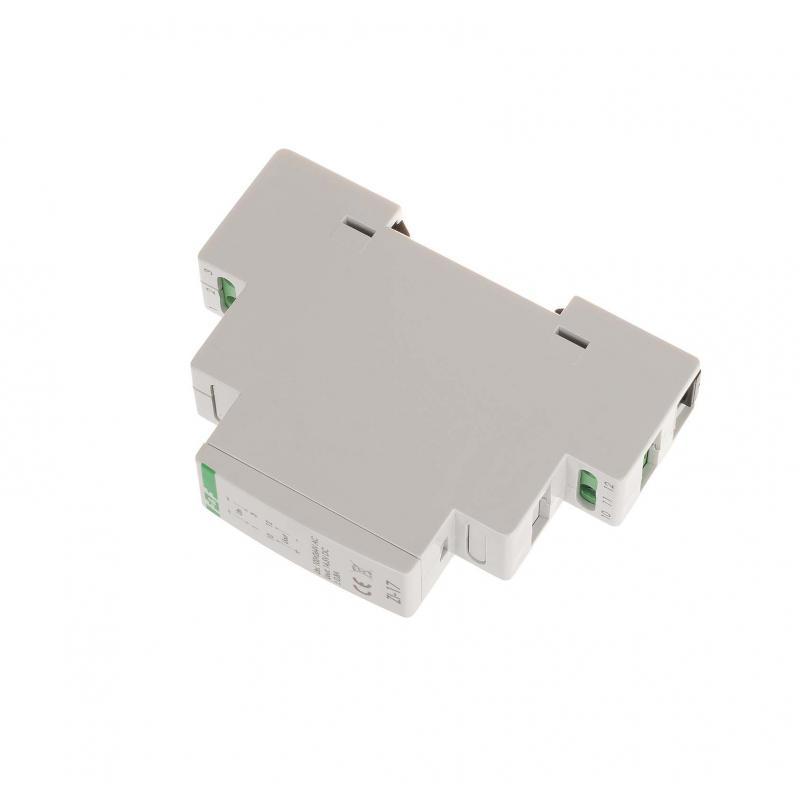

Pulse power supply ZI-17
Output voltage 14,5 V. Power 12 W.
The switched-mode power supply is used to supply electric and electronic devices that require a stable, filtered supply voltage independent of changes in the mains voltage.
The switched-mode power supply is used to supply electric and electronic devices that require a stable, filtered supply voltage independent of changes in the mains voltage.
Versions
| Type | Output voltage | Current output |
| ZI-16 | 13,5V DC | 0,9A |
| ZI-17 | 14,5V DC | 0,8A |
| ZI-15 | 15V DC | 0,8A |
| ZI-20 | 12V DC | 1,0A |
| ZI-21 | 24V DC | 0,5A |
- Type
- impulse power supply
- Power supply voltage
- 100÷264 V AC
- Maximum load current
- 0,8 A
- Output voltage OUT
- 14,5 V DC
- Output power
- 12 W
- Current limit
- 110% output voltage
- Minimal load
- 0%
- Switching frequency
- 70 KHz
- Mass
- 80 g
- Terminal
- pluggable terminal blocks 2,5 mm²
- Tightening torque
- 0,4 Nm
- Working temperature
- -10÷40°C
- Dimensions
- 1 module (18 mm)
- Assembly
- on rail 35 mm
- Ingress Protection Marking
- IP20
