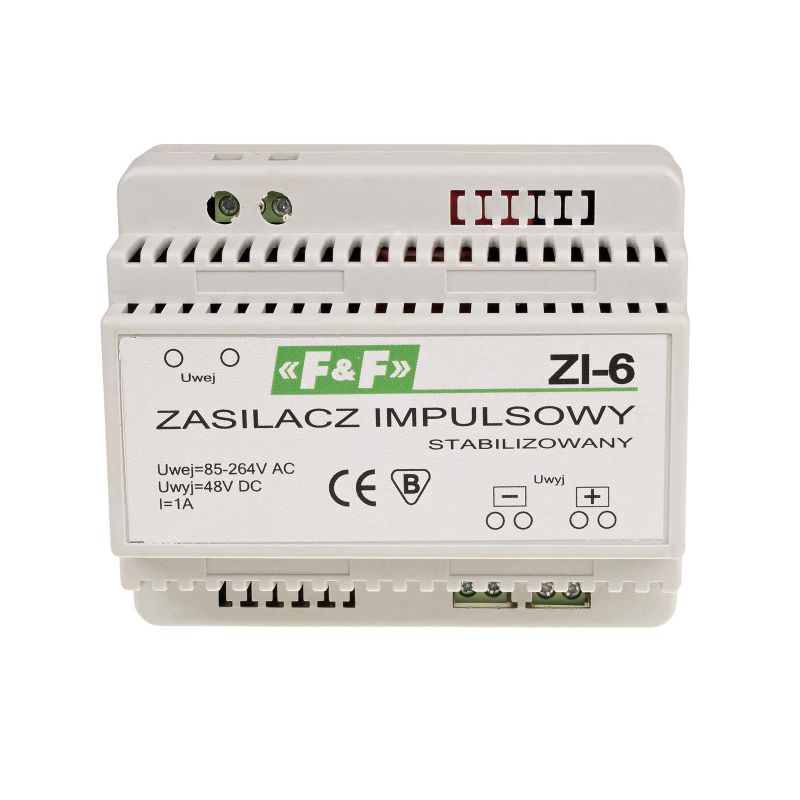

Pulse power supply ZI-6
Impulse power supply. Output voltage 48 V. Power 50 W.
The switched-mode power supply is used to supply electric and electronic devices that require a stable, filtered supply voltage independent of changes in the mains voltage.
The switched-mode power supply is used to supply electric and electronic devices that require a stable, filtered supply voltage independent of changes in the mains voltage.
Implementation
| Type | Output voltage |
Current |
| ZI-1 | 5V DC | 10A |
| ZI-2 | 12V DC | 4A |
| ZI-3 | 18V DC | 3A |
| ZI-4 | 24V DC | 2A |
| ZI-5 | 15V DC | 3,3A |
| ZI-6 | 48V DC | 1A |
Attention!
* Below 160V input power supply voltage will continue to stabilize the output voltage, but the maximum output current will decrease concurrent with a decline in input voltage.
* Due to the high frequency converter, some very sensitive radio or microprocessor can operate correctly. It is recommended that you install the filter OP-230 (see item 18) between the power supply and receiver.
* By increasing the load above Imax will stabilize power supply current, but output voltage will decrease. If a outputvoltage falls to about 40% of the power supply is switched off and will be 1.5 ÷ 2sec. sample. Similarly happens when you connect the receiver, which receives a large current boot (ie the cold light bulb). If you're experiencing is not too large, the power supply after a few attempts (eg, the gradual warming-up, the light bulb filaments) runs. If the load is too large to sample the power supply will disconnect the load moment.
- Type
- impulse power supply
- Power supply voltage
- 85÷264 V AC
- Maximum load current
- 1 A
- Output voltage OUT
- 48 V DC
- Output power
- 50 W
- Current limit
- 110% output voltage
- Minimal load
- 0%
- Switching frequency
- 70 KHz
- Mass
- 190 g
- Terminal
- pluggable terminal blocks 2,5 mm²
- Tightening torque
- 0,4 Nm
- Working temperature
- -10÷40°C
- Dimensions
- 6 modules (105 mm)
- Assembly
- on rail 35 mm
- Ingress Protection Marking
- IP20
